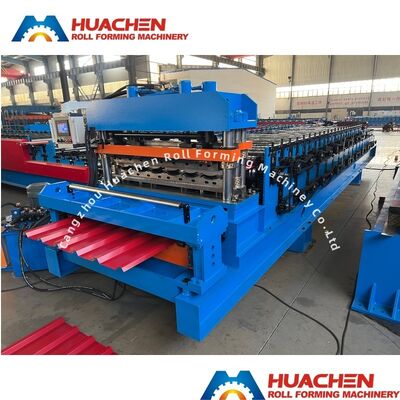

1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making

1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making
1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making
1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making

Large Image :  1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC17-31-1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30 days
Payment Terms: L/C,T/T
Supply Ability: 20 sets per month
Contact Now

1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1250mm Roller Stations: Upper:12stations;Down:17stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: φ70mm
Cutter Material: Cr12 Drive Type: Chain Drive
Speed: 15m/min Total Power: 5.5+5.5kw
Voltage: 380V 50Hz 3phases(Customizable)
Highlight:

metal roll forming machine

,

sheet metal roll forming machines

1250 Mm Galvanized Sheet Roll Forming Machine 5.5kw Power, Tile Steel Making Machine
Product Overview

1250 mm Galvanized Sheet Roll Forming Machine with 5.5kw Power for tile steel production.

Workflow Process

Un-coiler → Straightening Device → Roll Forming → Hydraulic Cutting → PLC Control System → Stacker

1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 0
Technical Specifications
ParameterSpecification
Material TypePPGI/GI
Thickness0.3-0.6mm
Width1250mm
Roller StationsUpper: 12 Stations; Down: 17 Stations
Roller & Shaft Material45# Steel Quenching and Plating
Diameter of ShaftΦ70mm
Cutter MaterialCR12
Drive TypeChain Drive
Speed15m/min
Total Power5.5+5.5KW
Voltage380V 50Hz 3Phases (can be customized)
Component Details
ComponentDescription
5T Manual Decoiler 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 1

Supports coil and enables rotary movement.

  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable)
  • Equipped with brake device to prevent machine damage
Feeding Table & Pre-Cutter 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 2

Guides coil into correct position and directs to roll forming section. Includes hand pull cutting device for pre-cutting when changing color or thickness.
Shaft & Roller 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 3

Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant and will not scratch the sheet surface.
Hydraulic Pump Station 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 4

Drives cutter for cutting operations. Uses 46# hydraulic oil with cooling fan for internal circulation cooling. Solenoid valve brand: Huade.
Touch Screen Control Cabinet 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 5

Features automatic and manual modes. Allows setting unit length and quantity via touchscreen. Electrical Component Brands:

  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
Pressing Section & Cutter 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 6

Blade material: CR12. Features high strength, excellent hardenability and superior wear resistance.
Output Table

Collects formed products. Equipped with rollers to facilitate product forwarding without scratching.
Spare Parts Included
PartQuantity
Chains2 Sets
Solenoid Valve1 Set
Travel Switch2 Sets
Open-End Wrenches2 Sets
Hexagon Wrench2 Sets
Counter1 Set
Wrench2 Sets
Oil Seals1 Set
Main Components
ComponentQuantity
Main Roll Forming Machine1 Unit
PLC Computer Control Board1 Unit
Hydraulic cutting1 Unit
Decoiler / Uncoiler1 Unit
Hydraulic Station1 Unit
Runout Table1 Unit
Company Advantages
  • High Quality
  • Reasonable Price
  • Good After Service
  • 1 Year Warranty
  • More Than 20 Years Experience

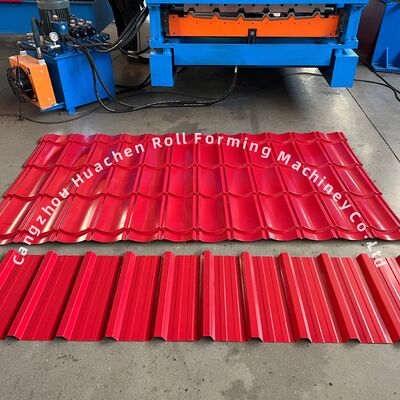

Machine Images
1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 7 1250mm Width Galvanized Sheet Roll Forming Machine with 5.5kw Power for Tile Steel Making 8
Company Introduction

Cangzhou Huachen Roll Forming Machine Co., Ltd. is a specialized national company utilizing international advanced cold bending steel roller designing software: COPRA Software Germany.

As an entity enterprise integrating research, manufacturing and management, we employ advanced CNC numerical control matching software equipment to provide comprehensive cold bending steel product design, project cost analysis, roller design, molding simulation, and manufacturing of various rigid rollers and cold bending equipment.

Our products serve steel structure industry, decorating and fitting material industry, elevator industry, and various pipe projects. We became a member of Cold Bending Industry Association, Construction Metal Structure Association, and Decorating and Fitting Material Association attached to the Chinese Steel ISO in 1999.

With decades of research experience, we have accumulated advanced technology and valuable expertise. Our machines feature steady and convenient operation, high efficiency, and lower consumption, making them popular both domestically and internationally.

We maintain the principle: Quality first, Credit foremost. We cordially welcome customers worldwide to visit our company and explore business opportunities.
