Product Introduction

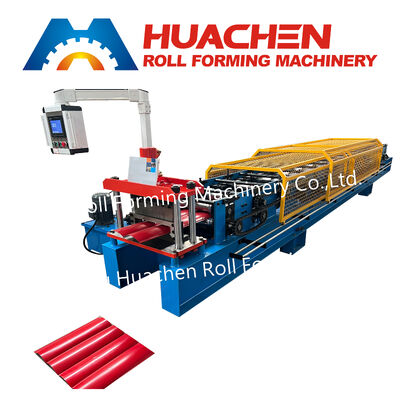

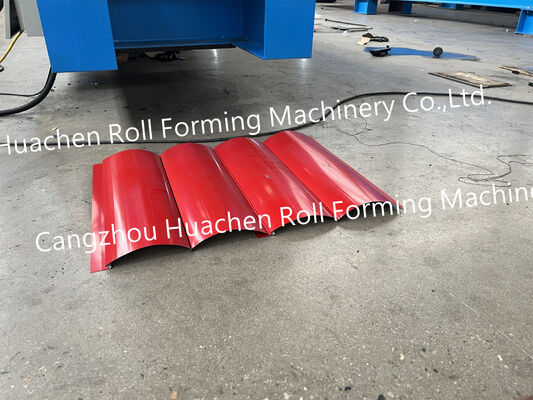

Automated Glazed Roof Tile & Color Coating Sheet Roll Forming Machine Engineered for premium architectural roofing production, the HC-10-160-351 Glazed Tile Roll Forming Machine specializes in producing classic glazed tile profiles and color-coated roofing sheets. Utilizing a 16-station precision roller design, 45# quenched steel tooling, and a specialized step-pressing hydraulic mechanism, this system delivers elegant wave geometry with exact step consistency. Certified to CE standards, it offers a reliable automated solution for manufacturers of residential villas, cultural landmarks, and commercial prefabricated buildings.

Technical Specifications

Key Advantages

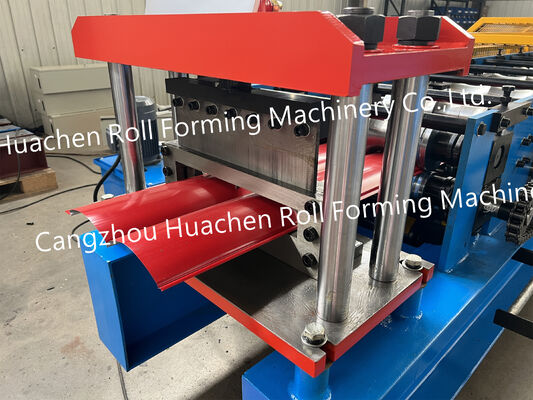

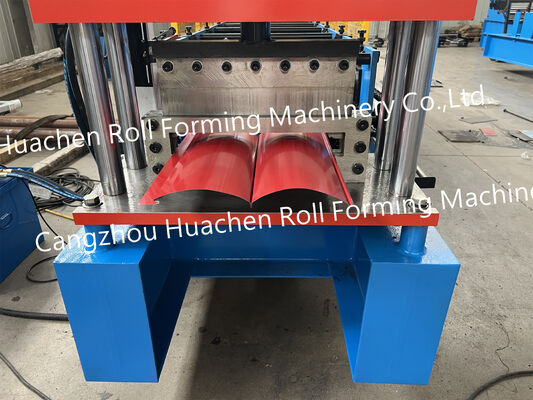

• Precision Glazed Step Pressing :

  • Equipped with profile-matched Cr12 steel step-molds to form uniform glazed tile steps, ensuring watertight interlocking joints.

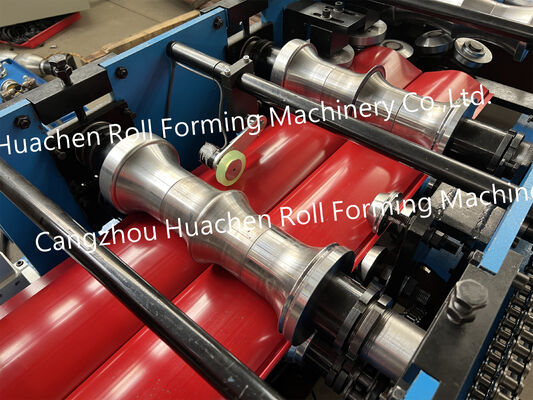

• Mirror-Finish Chrome Rollers :

  •  CNC-milled and heat-treated 45# steel rollers prevent surface abrasion on high-gloss color coatings and galvanized layers.

• PLC Length & Step Control :

  •  Allows single-operator customization for panel length, step spacing, and total batch count via intuitive touch-screen controls.

FAQ

Q1: What is the estimated lead time for manufacturing and delivering this machine?

A:Standard manufacturing requires 30 to 45 business days upon order confirmation, followed by rapid ocean freight arrangements tailored to your port destination.

Q2: Can we customize the tile profile, wave height, or step pitch according to local market preferences?

 A:Yes, our engineering team can custom-design the roller stations and Cr12 molds based on your precise CAD drawings or profile samples.
