Product Introduction

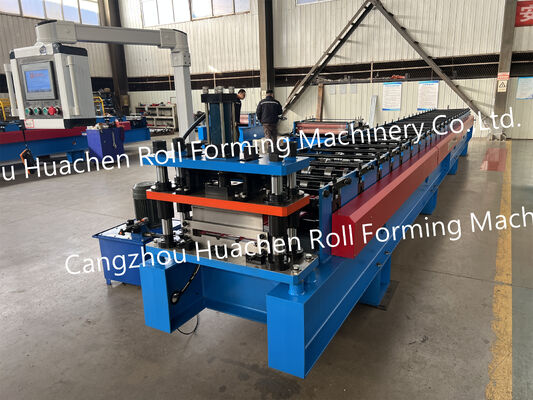

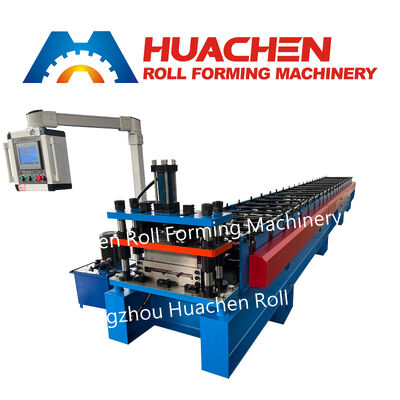

Heavy-Duty Corrugated Tile & Steel Roof Sheet Cold Roll Forming Machine Designed for continuous industrial manufacturing, the HC-414-24 Corrugated Roofing Roll Former transforms galvanized, color-coated, and aluminum coils into rigid corrugated roof sheets and structural wall panels. Built with an extended 24-station roller drive system, 350 H-beam structural base, and a post-hydraulic cut-off mechanism, this machine ensures continuous forming with precise profile consistency at speeds up to 20 m/min. Certified with CE compliance, it offers an efficient solution for prefabricated building suppliers, steel mill processing centers, and roofing tile manufacturers.

Technical Specifications

Key Performance Highlights

• 24-Station Multi-Stage Forming :

  • Featuring 24 roller stations, the material undergoes gradual deformation, eliminating internal stress and preventing surface springing or warping on corrugated panels.

• Precision Φ70mm Solid Shafts:

  •  Manufactured from heat-treated 45# steel to resist torsional deflection, ensuring uniform panel thickness during long continuous runs.

• Post-Hydraulic Cr12 Shearing:

  • Fitted with profile-matched Cr12 hydraulic cutting blades for clean, zero-burr cuts without damaging pre-painted coil coatings.

Frequently Asked Questions (FAQ)

Q1: What coil thickness range can the 24-station machine process?

A:The system efficiently formats color steel (PPGI), galvanized steel, and aluminum sheet coils between 0.3mm and 0.6mm thickness.

Q2: What options are available for raw material decoiling?

A:We offer both 5-ton manual decoilers and hydraulic automatic decoilers based on client automation level requirements.
