Fully automatic shearing type roof tile and membrane forming machine

Fully automatic shearing type roof tile and membrane forming machine

Production  Introduction

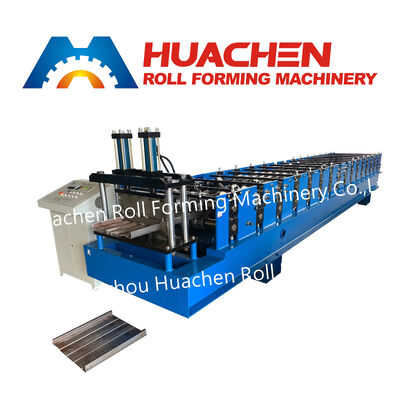

High-Speed Fully Automatic Shearing Type Roof Tile & Wall Panel Roll Forming Machine Engineered for heavy-duty industrial production, the Roll Forming Machine delivers high-precision forming and shearing for structural roof tiles, wall cladding panels, and waterproof membrane supports. Featuring a heavy-duty 350 H-beam steel frame, 16-station precision rollers, and a high-efficiency hydraulic shearing system, this equipment ensures zero-deformation cutting and continuous operation at speeds up to 20 m/min. Certified with CE compliance, HC machinery is built with 45# heat-treated steel rollers and automated PLC controls, making it an ideal choice for commercial building manufacturers and roofing suppliers globally.

Technical Specifications

Key Advantages

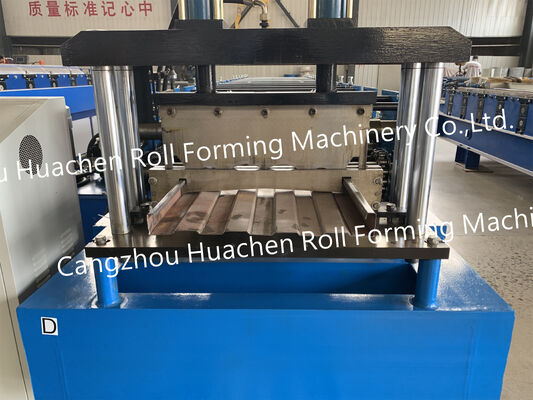

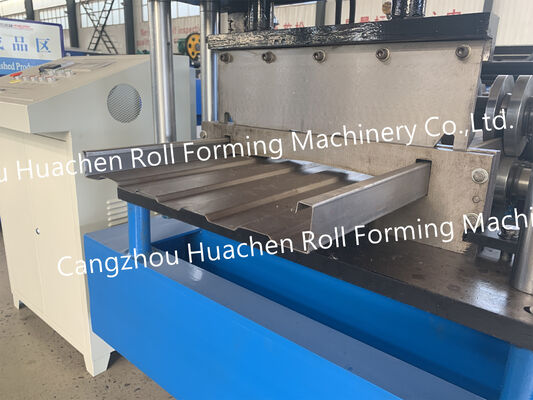

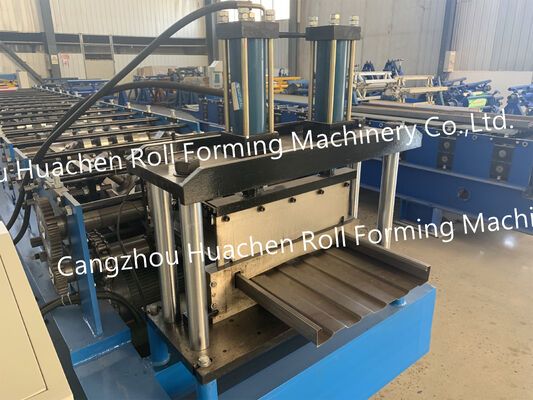

• High-Precision Hydraulic Shearing

  • Smooth, clean cuts with zero edge distortion or burrs, tailored to match profile geometry perfectly.

• Heavy-Duty 350 H-Beam Structure

  •  Minimizes machine vibration during high-speed production, ensuring decades of frame durability.

• Durable Chrome-Plated Rollers

  •  Forged from 45# steel, precision CNC-machined, and hard-chrome plated to eliminate scratches on colored steel coatings.

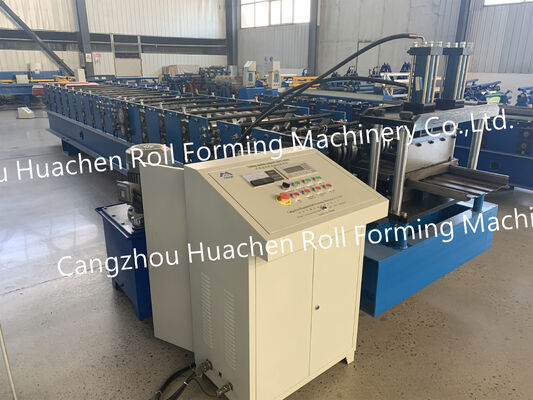

• One-Touch PLC Automation

  •  Automated length measurement, quantity counting, and cutting logic reduce labor demand to 1 operator.

Frequently Asked Questions (FAQ)

Q1: What materials and thickness can this roll former process?

A: It handles color-coated steel (PPGI), galvanized coils, and aluminum with thicknesses from 0.3mm to 0.6mm.

Q2: How do you guarantee the shearing cut will not damage panel coatings?

A: We use precision-machined Cr12 steel hydraulic cutter molds aligned with the panel profile to deliver clean cuts without surface scratching.
