PLC fully automatic punching fence machine / rhombic hole net machine / roof tile manufacturing machine

PLC fully automatic punching fence machine / rhombic hole net machine / roof tile manufacturing machine

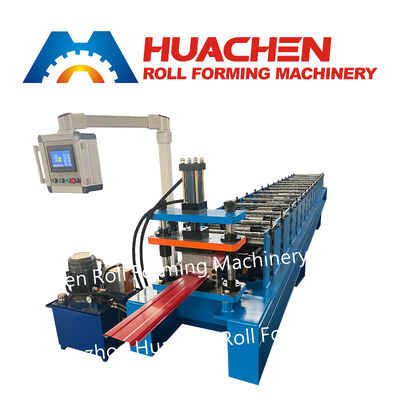

Engineered for precision sheet metal fabrication, our Automatic Punching Roof Tile and Wall Panel Roll Forming Machine offers high-speed continuous production of premium profiled building panels. Featuring a heavy-duty 350 H-beam steel chassis and an integrated PLC control system, it delivers continuous forming speeds of 15–20 m/min with strict tolerance control.

Certified with international CE standards, this machine incorporates precision-quenched 45# steel rollers and a high-grade Cr12 hydraulic cutter, ensuring crisp panel geometries, clean cut edges, and long-term operating durability.

Key Advantages & Technical Excellence

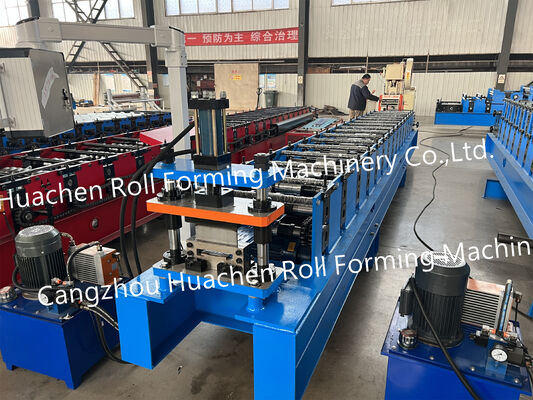

• Automatic PLC Punching & Cutting: Integrated PLC system enables fully automated line operation, high-precision punching, and custom length hydraulic post-cutting without material waste.

• Heavy-Duty H-Beam Chassis: Built on a rigid 350 H-beam structural steel frame to eliminate machine vibration and ensure smooth feeding during continuous high-speed runs.

• Premium 45# Steel Roller System: 12-station precision quenching and hard-chrome plated rollers prevent sheet scratching while delivering consistent rib and tile profiles.

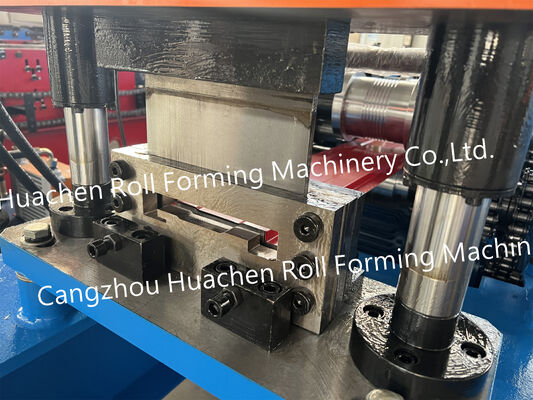

• Cr12 Mold Steel Hydraulic Cutter: Durable Cr12 alloy cutting blades ensure burr-free cuts, eliminating manual trimming and preserving structural integrity.

Technical Specifications

Industrial Applications

The punched roof and wall panels manufactured by this equipment are widely used across diverse modern building projects:

• Commercial & Industrial Facilities: Exterior wall cladding, roof decks, and partition walls for warehouses, steel structures, and factories.

• Residential & Modular Buildings: Decorative roof tiles and durable side panels for prefabricated houses, modern villas, and garages.

• Agricultural Structures: Protective wall and roofing panels for poultry farms, agricultural storage sheds, and livestock shelters.

FAQ

Q: What thickness of raw material can this roll forming machine process? A: It seamlessly processes 0.3mm to 0.6mm thickness ranges of PPGI (pre-painted galvanized steel), GI (galvanized steel), and aluminum coils.

Q: How is the quality of the cutter and rollers guaranteed? A: The rollers are made of 45# steel with quenching treatment and hard chrome plating. The hydraulic cutter utilizes premium Cr12 mold steel for long service life.

Q: What is the delivery lead time and packaging for export? A: The standard production lead time is within 30 days. Machines are securely anchored and packaged in standard 40GP containers for ocean shipping.
