Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine

Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine
Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine

Large Image :  Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: 14-120-240
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 30days
Payment Terms: L/C,T/T
Supply Ability: 60 Sets Per Month
Contact Now

Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine

Description
Panel Thickness: 0.3-0.6mm Motor Power: 4+4KW
Machine Frame: 350 H Beam Cutting Method: Hydraulic Cutting
Decoiler Type: Hydraulic/manual Decoiler Roller Material: 45# Steel
Machine Type: Roll Forming Machine Production Capacity: 15-20m/min

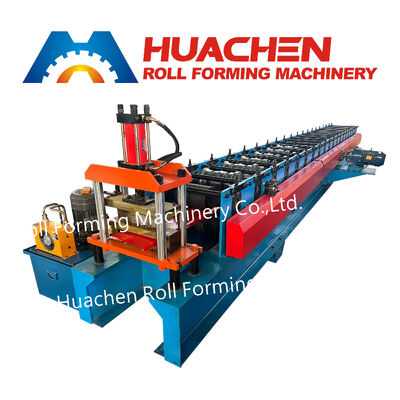

Roofing Panel Self Lock Making Machine Automatic Self Locking Vertical Seam Metal Roof Sheet Forming Machine

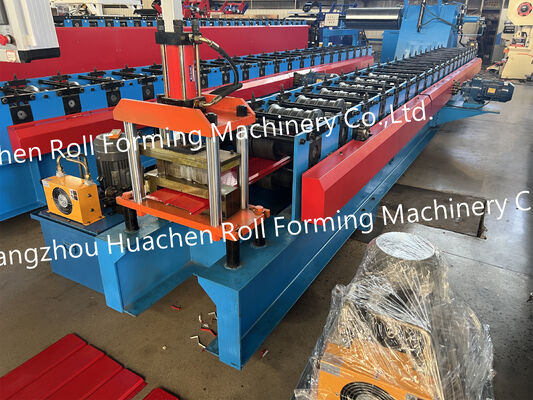

Engineered for high-efficiency commercial and residential roofing production, our Self-Locking Vertical Seam Metal Roof Sheet Forming Machine delivers precise seam locking without external fasteners, ensuring superior waterproof and wind-resistant roofing profiles.

Certified with international CE Standards, this heavy-duty roll former utilizes precision-machined 45# steel rollers and high-torque chain drive systems to achieve continuous forming speeds of 15–20 m/min with zero panel deformation.



Key Advantages & Engineering Excellence

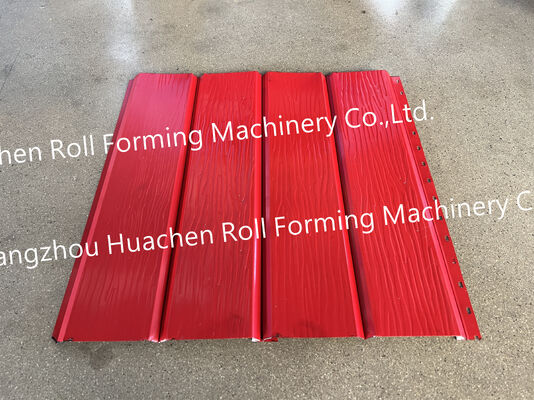

  • Concealed Fastener Profile: Produces self-locking standing seam panels that conceal screws, providing 100% leak-proof performance and long-term weather resistance.

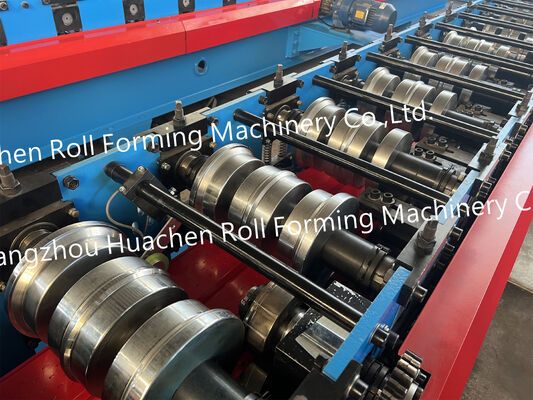

  • High-Speed & Precision Output: Operates at an efficient forming speed of 15–20 m/min, backed by a 21-station roller system that ensures consistent profile geometry.

  • Heavy-Duty Industrial Frame: Built on a rigid 350 H-Beam structural frame to absorb vibration, maintaining tight tolerances under high-volume production.

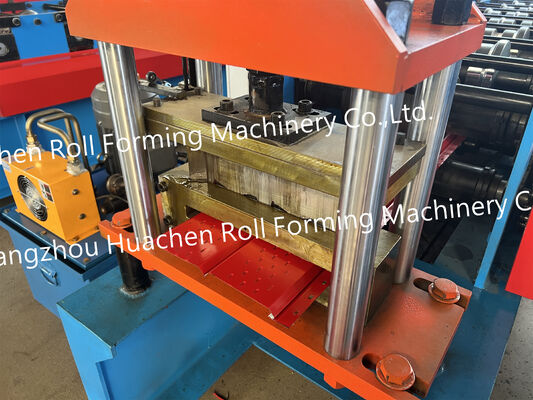

  • Cr12 Steel Hydraulic Cutting: Features a durable Cr12 cutter mechanism for clean, burr-free cuts without manual trimming or material waste.

Technical Specifications

Parameter Specification Details
Forming Speed 15 - 20 m/min
Roller Stations 21 Stations
Roller & Shaft Material 45# Steel Quenching and Hard Chrome Plating
Shaft Diameter Φ70mm Solid Shaft
Cutter Material Cr12 Steel
Drive System Heavy-duty Chain Drive
Machine Frame 350 H-Beam Steel Frame
Suitable Material Thickness 0.3 - 0.6mm (GI, PPGI, Aluminum Sheet)
Total Motor Power 4 kW Main + 4 kW Hydraulic System
Voltage Standard 380V / 50Hz / 3Phase (Customizable)


Industrial Applications

The self-locking roof panels produced by this forming machine are widely adopted in modern structural steel projects:

  • Commercial & Industrial Roofs: Large-span warehouses, manufacturing plants, and logistics hubs requiring superior rain/wind protection.

  • Architectural Buildings: Prefabricated homes, modern residential villas, sports stadiums, and airport terminals.

  • Low-Slope Roofing Systems: Ideal for long-length roof panel installation without transverse overlaps.

Quality Assurance & Global Support

  • Pre-Shipment Testing: 100% full-load trial runs conducted with buyer's raw sheet materials before export packing.

  • After-Sales Guarantee: Complete technical support including remote operation training, and rapid spare part replacement.
