Putai Metal Sheet Tile Making Machinery Ceiling Wall Panel Roll Forming Machine

Description
Panel Thickness: 0.3-0.6mm Motor Power: 4+4KW
Machine Frame: 350 H Beam Cutting Method: Hydraulic Cutting
Decoiler Type: Hydraulic Cutting Roller Material: 45# Steel
Machine Type: Roll Forming Machine Production Capacity: 15-20m/min

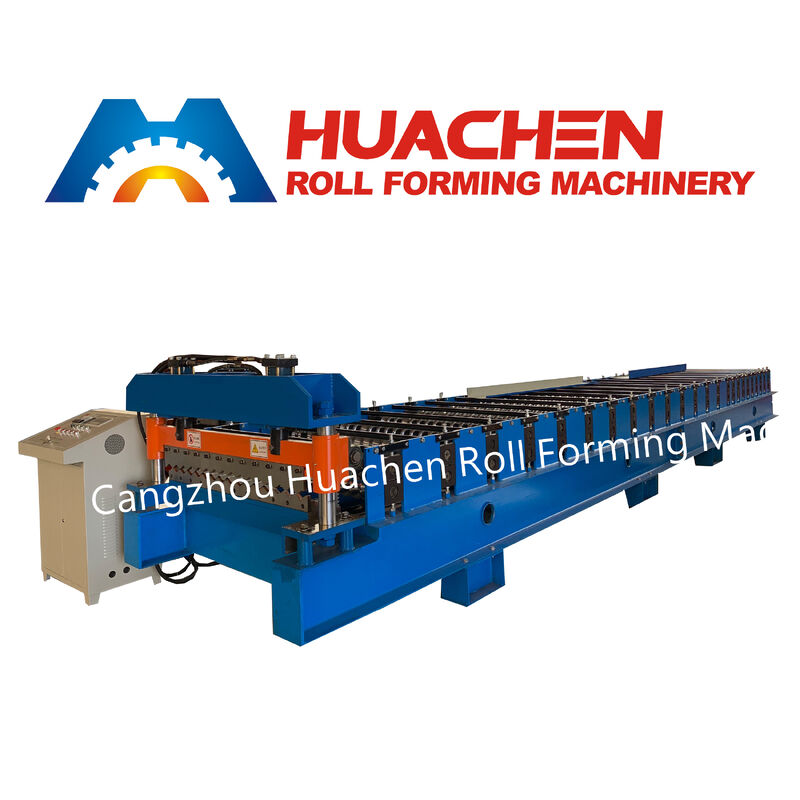

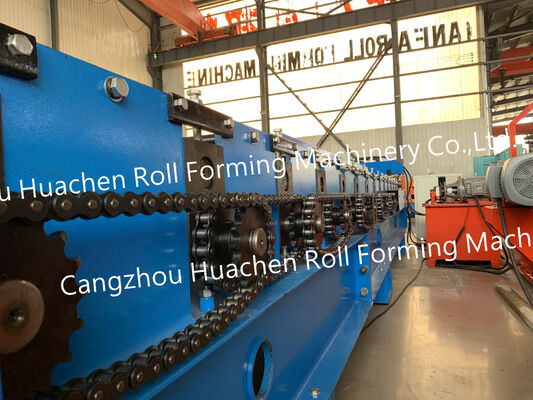

Product Overview The HC 18-735-1200 Roll Forming Machine is a precision 12-station continuous cold roll forming system engineered to manufacture architectural metal wall cladding and linear ceiling panels. Designed to process standard 1200mm-wide coils of pre-painted galvanized steel (PPGI), galvanized iron (GI), and aluminum in thicknesses from 0.3mm to 0.6mm, this line forms crisp, rigid panels featuring an 18mm rib depth and a 735mm effective coverage width with deep interlocking side laps. Built on a heavy-duty 350 H-beam welded base with Φ70mm solid shafts and PLC-controlled hydraulic cutting, it runs smoothly at 15–20 m/min for commercial facade contractors and interior ceiling manufacturers.

Main Technical Parameters

Technical Parameter Standard Specification
Machine Model HC 18-735-1200 Architectural Wall & Ceiling Panel Roll Former
Panel Profile Dimensions Rib Height: 18 mm | Effective Coverage Width: 735 mm
Input Coil Width 1200 mm (Standard International Coil Width)
Sheet Thickness Range 0.3 mm – 0.6 mm
Compatible Coil Materials Pre-Painted Galvanized Steel (PPGI), Galvanized Steel (GI), Aluminum
Forming Stations 12 Precision Roller Stations
Roller Material & Treatment 45# Forged Steel, CNC Precision Turned, Quenched & Hard Chrome Plated
Main Shaft Material & Size 45# Solid Round Steel, Tempered & Ground, Diameter Φ70 mm
Machine Frame Base 350# Structural H-Beam Welded Chassis
Drive Mechanism Heavy-Duty Roller Chain and Sprocket Drive
Production Line Speed 15 – 20 m/min
Cutting System Automated Hydraulic Post-Cutting System
Cutting Blade Material Cr12 Alloy Tool Steel, Vacuum Heat-Treated
Total Motor Power 4 KW (Main Forming Drive) + 4 KW (Hydraulic Cutting Unit)
Control & Length System Industrial PLC Touch Screen Control with High-Precision Encoder
Electrical Standard 380V, 50Hz, 3-Phase (Customizable to Local Factory Voltage)
Decoiler Configuration Manual Decoiler or Hydraulic Decoiler

Key Engineering & Design Advantages

  • Architectural 18-735-1200 Interlocking Profile: Transforming a standard 1200mm coil into a 735mm effective coverage panel with 18mm ribs allows for deep side-lap engagement and crisp shadow lines. This eliminates wind rattle, improves weather-tightness on exterior facades, and delivers a clean, modern finish for interior suspended ceilings.

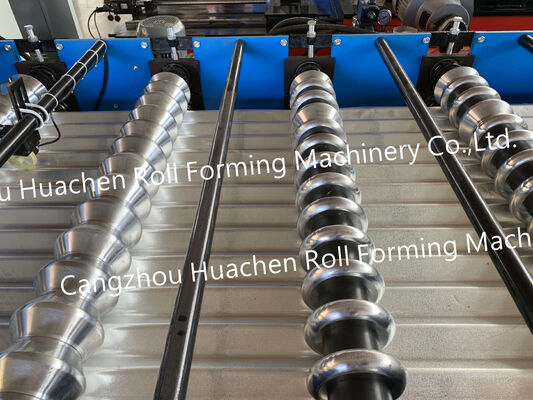

  • 12-Station Scratch-Free Progressive Forming: Twelve CNC-calibrated roller stations form the 18mm ribs and side-lock edges smoothly without pinching or scuffing delicate PPGI color coatings or brushed aluminum surfaces.

  • Quenched & Hard-Chrome Plated 45# Steel Rollers: Every forming roller is precision-turned from solid 45# steel, heat-treated for core durability, and electroplated with hard chrome. This mirror-smooth surface prevents surface marking on architectural panels.

  • Heavy-Duty 350 H-Beam Frame & Φ70mm Solid Shafts: Constructed on a rigid 350mm H-beam frame with Φ70mm solid steel shafts, the machine prevents lateral twist and guarantees straight, tight-fitting panel joints across long architectural runs.

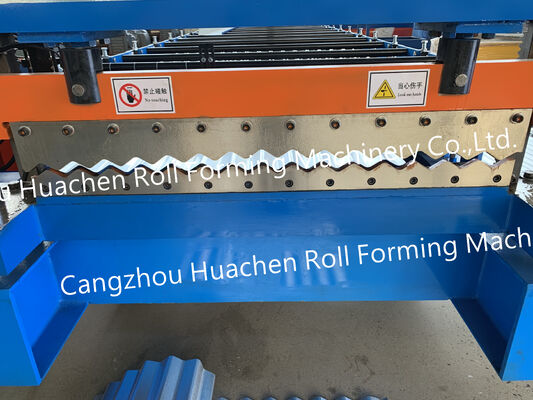

  • Profile-Matched Cr12 Hydraulic Cutting & PLC Control: Powered by a 4KW hydraulic station, custom-ground Cr12 steel cutting dies slice cleanly through the 18-735 cross-section without burrs or edge flare. Operators program exact panel lengths and batch counts on the touchscreen PLC.

Commercial & Architectural Applications Combining refined visual appeal with high structural rigidity, the 18-735-1200 metal panel is widely specified for:

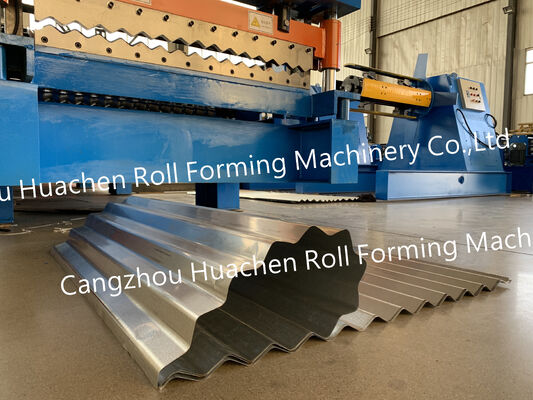

  • Commercial & Retail Facades: Modern exterior wall cladding, entrance canopies, and fascia trim for shopping centers, showrooms, and office complexes.

  • Interior Linear Metal Ceilings & Soffits: Suspended acoustic/decorative ceilings and exterior roof overhangs for airports, transit stations, commercial halls, and clean workshops.

  • Industrial & Modular Structures: High-grade exterior siding and interior partition walls for steel-frame buildings, cold storage facilities, and prefabricated modular units.

Factory Calibration, Container Shipping & After-Sales Support Prior to shipment, every HC 18-735-1200 roll forming line is assembled and tested with actual metal coils at our workshop to verify joint fitment, the 735mm effective coverage width, and PLC length tolerance. All exposed steel components are coated with anti-rust oil, and the entire line is securely braced inside a single 40GP container. We provide foundation layout drawings, English operation manuals, video commissioning guidance, a 12-month warranty, and lifetime spare parts support.

Frequently Asked Questions (FAQ)

Q1: What do the numbers in model 18-735-1200 mean?A: The model code defines the panel's exact dimensions: 18mm rib height, 735mm effective coverage width after side interlocking, and 1200mm input steel coil width.

Q2: Why is there a difference between the 1200mm coil width and the 735mm effective coverage width?A: The extra material is formed into deep, rigid architectural ribs and wide interlocking side laps. This geometry gives the 735mm panel superior flatness, high wind-uplift resistance, and seamless visual joints for exterior facades and linear ceilings.

Q3: Can this machine process both pre-painted steel (PPGI) and aluminum coils?A: Yes. The hard-chrome plated 45# steel rollers are mirror-polished to smoothly form 0.3mm–0.6mm PPGI, galvanized steel (GI), and aluminum coils without scratching decorative finishes.

Q4: What is the lead time, MOQ, and decoiler selection?A: The minimum order quantity is 1 set, and our monthly production capacity is 60 sets. Standard manufacturing and coil-load testing take 30 working days. You can choose between a standard 5-ton manual decoiler or an upgraded 5-ton hydraulic decoiler.
