Roof seam sheet forming machine / tile making machine / wall panel

Roof seam sheet forming machine / tile making machine / wall panel
Roof seam sheet forming machine / tile making machine / wall panel Roof seam sheet forming machine / tile making machine / wall panel Roof seam sheet forming machine / tile making machine / wall panel Roof seam sheet forming machine / tile making machine / wall panel Roof seam sheet forming machine / tile making machine / wall panel

Large Image :  Roof seam sheet forming machine / tile making machine / wall panel

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: 18-78-1014
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 30days
Payment Terms: L/C,T/T
Supply Ability: 60 Sets Per Month

Roof seam sheet forming machine / tile making machine / wall panel

Description
Panel Thickness: 0.3-0.6mm Motor Power: 4+4KW
Machine Frame: 350 H Beam Cutting Method: Hydraulic Cutting
Decoiler Type: Hydraulic/manual Decoiler Roller Material: 45# Steel
Machine Type: Roll Forming Machine Production Capacity: 15-20m/min

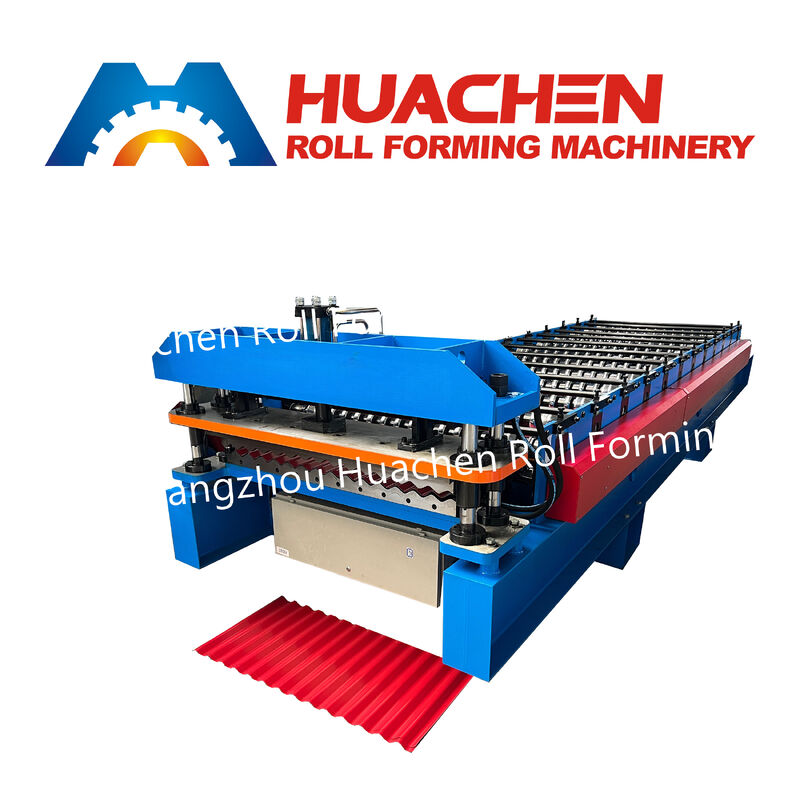

Product Overview The HC 18-78-1014 Corrugated Roll Forming Machine is a streamlined, high-output 12-station cold roll forming system engineered to produce classic sinusoidal wave metal sheets. Designed to process galvanized steel (GI), pre-painted galvanized steel (PPGI), and galvalume coils in thicknesses from 0.3mm to 0.6mm, this production line forms corrugated panels featuring an 18mm wave height, 78mm pitch, and 1014mm effective coverage width (13 waves). Supported by a rigid 350 H-beam welded chassis, Φ70mm solid shafts, and PLC-synchronized hydraulic cutting, it runs continuously at 15–20 m/min for high-volume roofing and wall cladding manufacturers.

Main Technical Parameters

Technical Parameter Standard Specification
Machine Model HC 18-78-1014 Corrugated Wall & Roof Sheet Roll Former
Wave Profile Specifications Sinusoidal Wave | Height: 18 mm | Pitch: 78 mm | Coverage Width: 1014 mm
Input Coil Width 1200 mm / 1220 mm (Standard Coil Width)
Material Thickness Range 0.3 mm – 0.6 mm
Compatible Coil Materials Galvanized Steel (GI), Pre-Painted Galvanized Steel (PPGI), Aluzinc
Forming Stations 12 Roller Stations
Roller Material & Process 45# Forged Steel, CNC Precision Turned, Quenched & Hard Chrome Plated
Main Shaft Material & Diameter 45# Solid Round Steel, Tempered & Ground, Φ70 mm
Machine Frame Base 350# Structural H-Beam Welded Frame
Drive System Heavy-Duty Roller Chain and Sprocket Drive
Production Line Speed 15 – 20 m/min

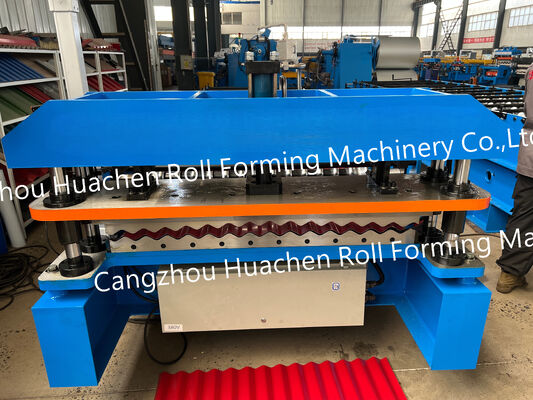

Cutting Mechanism Automated Hydraulic Post-Cutting System
Cutting Blade Material Cr12 Alloy Tool Steel, Vacuum Heat-Treated
Total Motor Power 4 KW (Main Forming Drive) + 4 KW (Hydraulic Station)

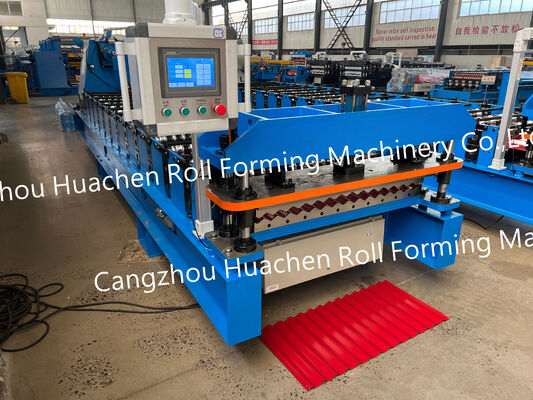

Control & Length System Industrial PLC Touch Screen Control with Rotary Encoder
Power Supply 380V, 50Hz, 3-Phase (Customizable to Local Industrial Voltage)
Decoiler Configuration Manual Decoiler or Hydraulic Decoiler

Key Engineering & Operational Advantages

  • Classic 18-78-1014 Sinusoidal Corrugated Profile: With 13 smooth sinusoidal waves spaced at a 78mm pitch and 18mm depth, the 1014mm-wide sheet provides omnidirectional stiffness, effortless side-lap nesting, and rapid rainwater shedding—making it one of the highest-demand profiles across Africa, Latin America, the Middle East, and Southeast Asia.

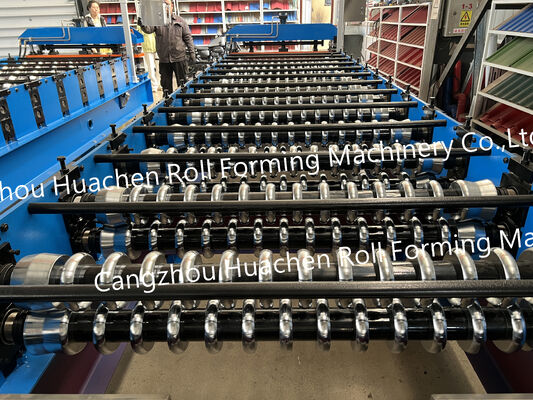

  • Optimized 12-Station High-Efficiency Layout: Because sinusoidal wave geometry distributes bending stress evenly without sharp corners, 12 precision-calibrated roller stations achieve complete profile accuracy while reducing machine footprint, power draw, and initial equipment investment.

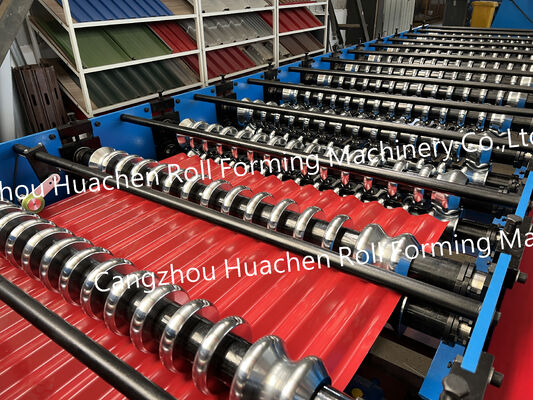

  • Quenched & Hard-Chrome Plated 45# Steel Rollers: Every wave roller is CNC-machined from solid 45# steel, heat-treated for core strength, and electroplated with hard chrome. This mirror-smooth finish prevents zinc flaking or paint scuffing on thin 0.3mm–0.6mm coils.

  • Rigid 350 H-Beam Frame & Φ70mm Solid Shafts: Built on a heavy 350mm H-beam welded base with Φ70mm solid steel shafts, the machine eliminates vibration and maintains uniform 18mm wave depth across the full 1014mm sheet width.

  • Wave-Matched Cr12 Hydraulic Cutting & PLC Control: Driven by a 4KW hydraulic unit, custom-ground Cr12 steel cutting dies match the exact 18-78 sinusoidal curve to produce clean, burr-free edges without flattening the waves. Operators input target lengths and quantities on the touchscreen PLC for automated batch production.

Typical Building Applications Lightweight, stackable for economical transport, and versatile for horizontal or vertical installation, the 18-78-1014 corrugated sheet is widely used in:

  • Industrial & Warehouse Cladding: Exterior wall siding, curved barrel roofs, and interior partitions for factories, workshops, and storage sheds.

  • Residential & Commercial Roofing: Cost-effective, weather-resistant corrugated roof sheets and awnings for housing projects, markets, and retail stalls.

  • Agricultural & Temporary Structures: Livestock barns, grain storage shelters, fencing panels, and modular site accommodations.

Factory Calibration, Container Shipping & Technical Support Prior to shipment, every HC 18-78-1014 roll forming line is assembled and tested with actual metal coils at our workshop to verify the 1014mm effective coverage width, 18mm wave height, and PLC cutting tolerance. All exposed steel surfaces are coated with anti-rust oil, and the entire line is securely braced inside a single 40GP container. We supply foundation layout drawings, English operation manuals, video commissioning guidance, a 12-month warranty, and lifetime spare parts support.

Frequently Asked Questions (FAQ)

Q1: What do the dimensions in model 18-78-1014 represent?A: The model code specifies the exact sinusoidal corrugated geometry: 18mm wave height, 78mm wave pitch (center-to-center distance between waves), and 1014mm effective coverage width after side overlapping (13 full pitches of 78mm).

Q2: What width of steel coil is needed for the 18-78-1014 roll forming machine?A: To produce the 1014mm effective coverage width, the machine uses standard 1200mm or 1220mm wide coils of galvanized steel (GI), pre-painted steel (PPGI), or aluzinc in thicknesses from 0.3mm to 0.6mm.

Q3: Is 12 stations enough to form a clean sinusoidal corrugated sheet?A: Yes. Unlike trapezoidal profiles that require sharp 90-degree bends, sinusoidal waves curve smoothly across the entire sheet width. Twelve precision CNC-machined stations provide more than enough forming passes to achieve exact wave depth without spring-back or edge waviness.

Q4: What is the lead time, MOQ, and decoiler option?A: The minimum order quantity is 1 set, and our monthly production capacity is 60 sets. Standard manufacturing and coil-load testing take 30 working days. You can choose between a standard 5-ton manual decoiler or an upgraded 5-ton hydraulic decoiler.
