Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine

Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine
Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine

Large Image :  Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: 6-25-835-940
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 30days
Payment Terms: L/C,T/T
Supply Ability: 60 Sets Per Month

Trapezoidal roof panel / wall panel forming machine / tile manufacturing machine

Description
Panel Thickness: 0.3-0.6mm Motor Power: 4+4KW
Machine Frame: 350 H Beam Cutting Method: Hydraulic Cutting
Decoiler Type: Hydraulic/manual Decoiler Machine Type: Roll Forming Machine
Roller Material: 45# Steel Production Capacity: 15-20m/min

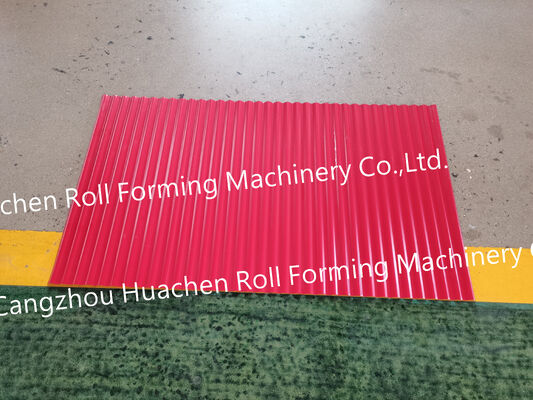

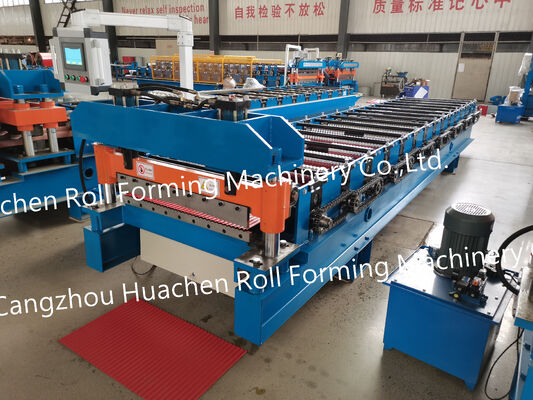

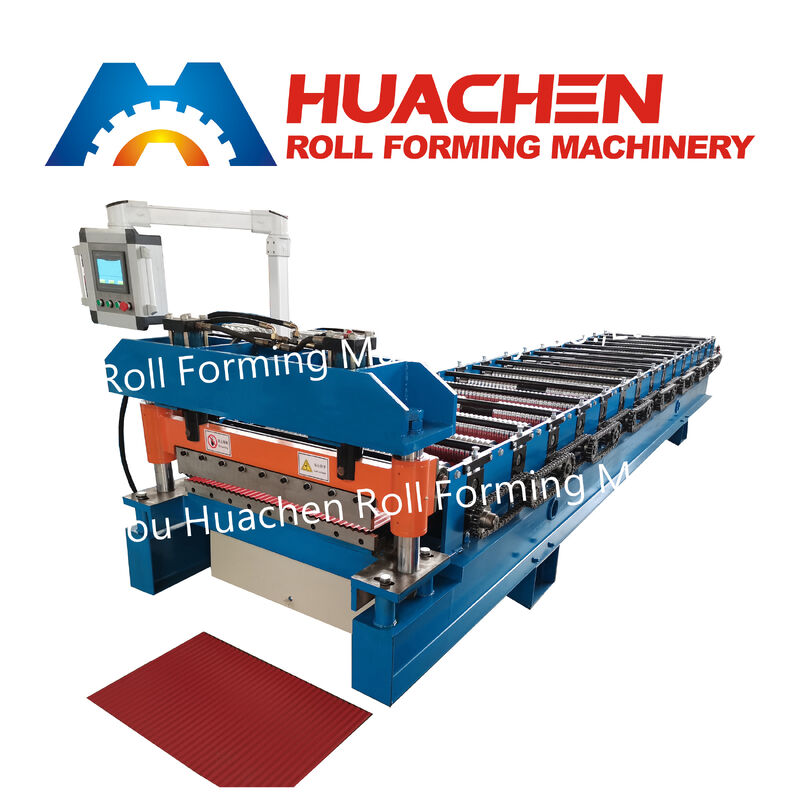

Product Overview The HC 6-25-835-940 Roll Forming Machine is a compact, high-precision 15-station cold roll forming system engineered to produce the popular 6-rib 835mm trapezoidal metal cladding sheet. Designed to process 940mm-wide coils (slit from standard 1000mm coils or custom-ordered) of galvanized steel (GI), pre-painted galvanized steel (PPGI), and aluminum in thicknesses from 0.3mm to 0.6mm, this line forms panels with 6 symmetrical ribs, a 25mm rib height, and an 835mm effective coverage width. Equipped with a 350 H-beam welded base, Φ70mm solid shafts, and PLC-controlled hydraulic cutting, it runs steadily at 15–20 m/min for regional building material suppliers and steel structure workshops.

Main Technical Parameters

Technical Parameter Standard Specification
Machine Model HC 6-25-835-940 Trapezoidal Panel Roll Forming Line
Panel Profile Specifications 6 Ribs | Rib Height: 25 mm | Effective Coverage Width: 835 mm
Input Coil Width 940 mm (Compatible with Slit 1000mm Coils)
Sheet Thickness Range 0.3 mm – 0.6 mm
Compatible Coil Materials Pre-Painted Galvanized Steel (PPGI), Galvanized Iron (GI), Aluminum
Forming Stations 15 Roller Stations
Roller Material & Finish 45# Forged Steel, CNC Precision Turned, Quenched & Hard Chrome Plated
Main Shaft Material & Size 45# Solid Round Steel, Tempered & Ground, Diameter Φ70 mm
Machine Frame Base 350# Structural H-Beam Welded Chassis
Drive Mechanism Heavy-Duty Roller Chain and Sprocket Drive
Production Line Speed 15 – 20 m/min
Cutting System Automated Hydraulic Post-Cutting System
Cutting Blade Material Cr12 Tool Steel, Vacuum Heat-Treated
Total Motor Power 4 KW (Main Forming Motor) + 4 KW (Hydraulic Cutting Unit)
Control & Length System Industrial PLC Touch Screen Control with High-Precision Encoder
Electrical Standard 380V, 50Hz, 3-Phase (Customizable to Local Power Supply)
Decoiler Options Manual Decoiler or Hydraulic Decoiler

Key Engineering & Operational Advantages

  • Classic 6-25-835-940 Architectural Profile: Featuring 6 crisp 25mm ribs across an 835mm effective coverage width (fed from 940mm coils), this balanced profile offers clean visual rhythm and reliable rainwater runoff, making it a staple specification across South America, Southeast Asia, Africa, and Eastern Europe.

  • 15-Station Smooth Progressive Forming: Fifteen precision-aligned forming stations shape all 6 ribs symmetrically in gradual passes. This prevents sheet cambering, edge waviness, or paint micro-cracking on 0.3mm–0.6mm PPGI coils.

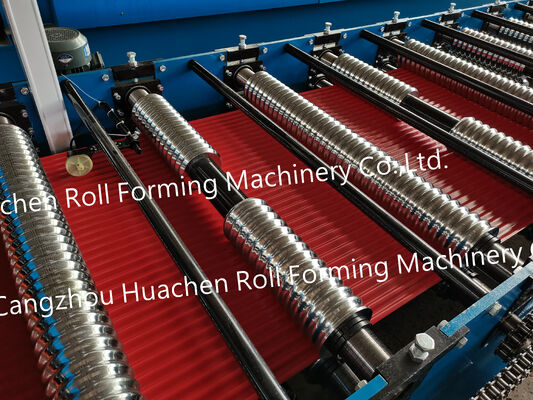

  • 45# Steel Quenched & Hard-Chrome Rollers: Every forming roller is CNC-machined from solid 45# steel, heat-treated for core durability, and electroplated with hard chrome to resist abrasion and maintain mirror-smooth panel surfaces.

  • Heavy-Duty 350 H-Beam Frame & Φ70mm Solid Shafts: Constructed on a rigid 350mm H-beam frame with Φ70mm solid steel shafts, the line eliminates structural vibration during continuous 15–20 m/min production.

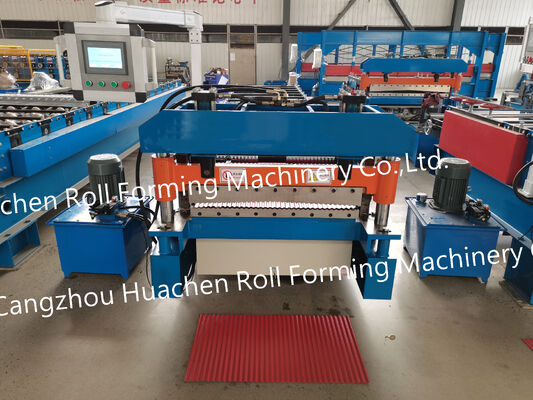

  • Profile-Matched Cr12 Hydraulic Cutting & PLC Control: Driven by a 4KW hydraulic power pack, the Cr12 steel cutting dies match the exact 6-rib cross-section to deliver clean, burr-free cuts. Operators set target sheet lengths and batch quantities via the touchscreen PLC for automated operation.

Typical Building Applications Lightweight, easy to handle on-site, and suitable for both vertical wall cladding and sloped roofing, the 6-25-835-940 metal sheet is widely applied in:

  • Industrial & Workshop Construction: Exterior wall siding, interior partition walls, and roof sheeting for steel-frame workshops, factories, and warehouses.

  • Residential & Commercial Buildings: Carports, retail storefronts, canopies, and sloped residential roofing renovations.

  • Prefabricated & Agricultural Structures: Modular container houses, site offices, farm sheds, and livestock shelters.

Factory Calibration, Container Shipping & Technical Support Before shipment, every HC 6-25-835-940 roll forming line undergoes full coil-load testing in our workshop to verify the 835mm effective width, 25mm rib height, and PLC length accuracy. All exposed steel components are treated with anti-rust oil and securely braced inside a single 40GP container. We provide foundation layout drawings, English operation manuals, video commissioning guidance, a 12-month warranty, and lifetime spare parts supply.

Frequently Asked Questions (FAQ)

Q1: What do the numbers in model 6-25-835-940 stand for?A: The model code defines the exact panel geometry: 6 trapezoidal ribs, 25mm rib height, 835mm effective coverage width after overlapping, and 940mm input steel coil width.

Q2: Where do we source 940mm coils for this machine?A: 940mm is a standard coil width in many international markets, or it can be easily obtained by slitting standard 1000mm or 1250mm master coils. Our 15-station line processes both galvanized (GI) and pre-painted (PPGI) coils from 0.3mm to 0.6mm thick.

Q3: Can we choose between a manual decoiler and a hydraulic decoiler?A: Yes. We offer a cost-effective 5-ton manual decoiler for standard production schedules, or an optional 5-ton hydraulic decoiler (with automatic coil car) for faster coil loading in high-output plants.

Q4: What is the lead time, MOQ, and warranty policy?A: The minimum order quantity is 1 set, and our monthly production capacity is 60 sets. Standard manufacturing and factory testing take 30 working days. Every machine includes a 12-month warranty and lifetime spare parts availability.
