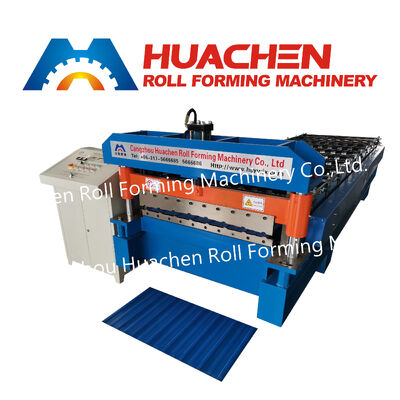

The wall panel rolling forming machine is suitable for wall panel production.

Main Technical Parameters

Forming Technology and Machine Structure

Ten-Station Roller Arrangement

The forming section consists of 10 roller stations. As the metal strip moves through the equipment, the rollers progressively shape the material according to the configured roofing profile.

Roller and Shaft Treatment

The specified roller and shaft material is 45# steel, with quenching and plating. The shaft diameter is Φ70mm.

Cutting Unit

The cutting component uses CR12 material. It separates the formed sheet based on the required cutting length and production setup.

Chain-Driven Operation

The machine uses chain drive transmission to transfer power to the forming mechanism. This configuration is part of the machine's mechanical operating system.

Electrical and Speed Configuration

The machine has a total power specification of 4+4KW and operates at a stated speed of 15–20m/min. Its listed electrical requirement is 380V, 50Hz, three-phase power.

Potential Roofing Applications

When equipped with the appropriate roller profile, the machine can be used to produce metal roofing sheets for:

• Residential building roofs
• Industrial workshops and factories
• Warehouses and logistics facilities
• Commercial construction projects
• Agricultural buildings and shelters

The finished sheet profile depends on the roller design and the selected machine configuration.

Before Purchasing

To match the equipment to your production requirements, confirm the following details with the supplier:

• Required roofing sheet profile
• Metal material and thickness
• Finished sheet width and dimensions
• Cutting length requirements
• Compatibility with the site's electrical supply

These details help determine whether the machine configuration matches the intended manufacturing process.

Frequently Asked Questions

1. How many roller stations are included?
The machine has 10 roller stations.

2. What is the shaft diameter?
The specified shaft diameter is Φ70mm.

3. Which materials are specified for the rollers, shafts, and cutter?
The rollers and shafts use 45# steel with quenching and plating. The cutter material is CR12.

4. What transmission method does the machine use?
It uses a chain drive system.

5. What is the operating speed?
The specified speed is 15–20m/min.

6. What are the power and voltage specifications?
Total power is 4+4KW, and the electrical specification is 380V 50Hz 3Phases.
