High-speed wall panel sheet forming machine / GI PPGI thin plate forming machine

Main Technical Parameters

Production Workflow

Step 1 — Material Entry
Metal coil is introduced into the forming section according to the production setup.

Step 2 — Progressive Shaping
The material moves through 18 roller stations, where the rollers gradually form the required roofing profile.

Step 3 — Sheet Separation
The CR12 cutting component cuts the formed material to the specified length.

Step 4 — Finished Sheet Handling
The separated sheets are collected for further processing, transport, or installation.

The final product shape depends on the roller profile and machine configuration.

Machine Components and Operating Details

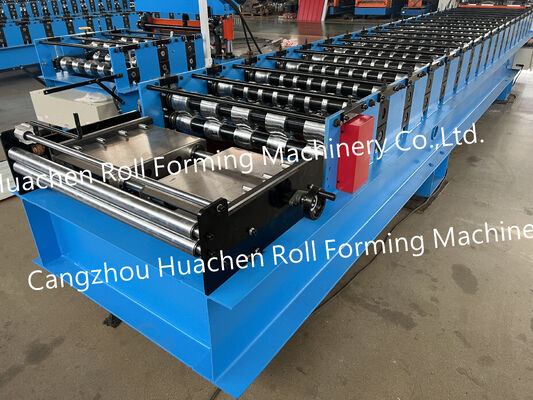

Forming Assembly

The machine features 18 roller stations for progressive metal sheet shaping. The specified roller and shaft material is 45# steel with quenching and plating.

Shaft Specification

A Φ70mm shaft diameter is specified for the forming assembly.

Cutting Mechanism

The cutter is made from CR12 material and is used to separate the formed roofing sheets during production.

Mechanical Transmission

The machine adopts chain drive transmission to operate the forming system.

Power Supply

The total power is 4+4KW. The specified electrical supply is 380V, 50Hz, three-phase.

Industries and End Uses

Depending on the selected profile, the equipment may be used by manufacturers supplying metal roofing sheets for:

• Industrial plants and production workshops
• Commercial buildings
• Warehouses and storage facilities
• Residential construction
• Agricultural buildings

Customers should confirm the intended roofing profile, metal thickness, and finished dimensions before ordering.

Frequently Asked Questions

How many forming stations does this model have?
It has 18 roller stations.

What is the specified production speed?
The listed operating speed is 15–20m/min.

What is the roller and shaft material?
The specified material is 45# steel with quenching and plating.

What is the cutter material?
The cutter material is CR12.

How does the machine transmit power?
It uses a chain drive system.

What electrical configuration is required?
The specification lists 380V, 50Hz, 3 phases, with total power of 4+4KW.
