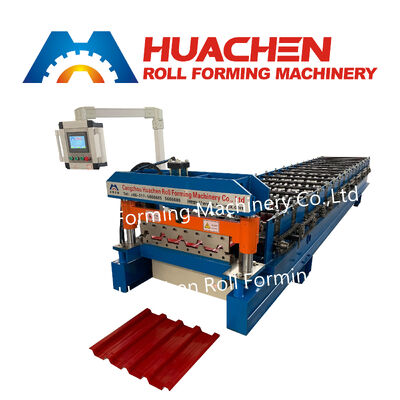

Automatic trapezoidal sheet forming machine / Box-shaped roof panel preparation machine Metal roofing tile pressing production line

Main Technical Parameters

Product Overview

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. The 16-Station Color Steel Tile Roll Forming Machine is designed for continuous processing of color steel roofing tile profiles. The machine is equipped with a 16-station roller forming unit, allowing the steel sheet to be gradually shaped through a series of forming steps.

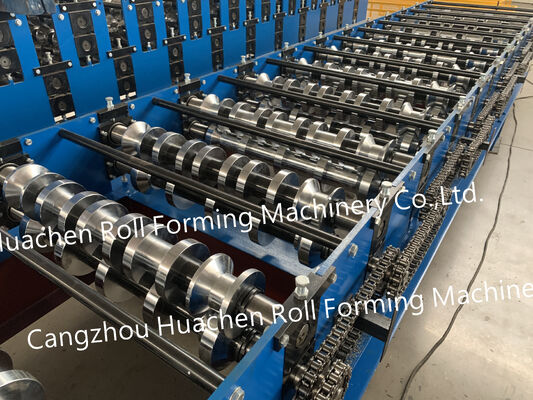

Roller Station Arrangement

The machine features a 16-station roller configuration. During operation, the material moves through the forming section and is shaped progressively by the arranged rollers.

The number of roller stations represents an important part of the machine setup and should be matched with the required color steel tile profile.

Material Specification of Rollers and Shafts

The rollers and shafts are made from 45# steel.

The supplied specification includes quenching and plating treatment for these components. The forming structure uses a Φ70 mm shaft diameter, providing a defined parameter for the mechanical assembly.

Transmission and Cutting Components

The machine is equipped with a chain drive transmission system.

The cutting section adopts a CR12 cutter. These specifications describe the main transmission and cutting configuration of the equipment.

Speed and Power Configuration

The machine speed is specified at 15–20 m/min.

The total power requirement is 4+4 kW, and the electrical system is designed for 380 V / 50 Hz / 3 Phases.

The installation site should provide a compatible power supply according to these machine requirements.

Application

The 16-Station Color Steel Tile Roll Forming Machine is suitable for continuous forming of color steel roofing tile profiles.

Possible application areas include:

• Color steel tile production
• Roofing profile forming
• Metal sheet profile processing
• Roofing material manufacturing
• Building profile production

The final machine selection should be based on the required profile specifications and production requirements.

Machine Configuration Summary

This machine configuration includes:

• 16 roller stations
• 45# steel rollers and shafts
• Quenching and plating treatment
• Φ70 mm shaft diameter
• CR12 cutter material
• Chain drive system
• 15–20 m/min machine speed
• 4+4 kW total power
• 380 V / 50 Hz / 3-Phase voltage

These technical details provide a reference for customers evaluating a 16-Station Color Steel Tile Roll Forming Machine for color steel roofing profile production.
