Metal coil rolling machine / Metal forming machine / Roof panel forming machine

Main Technical Parameters

Product Overview

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. The 13-Station Color Steel Tile Roll Forming Machine is designed for continuous forming of color steel roofing tile profiles. With 13 roller stations, the machine guides the steel sheet through successive forming stages to produce the required tile profile.

13-Station Roll Forming Section

The machine incorporates 13 roller stations within the forming section. The steel sheet moves through the stations in sequence, allowing the roofing profile to be formed progressively.

For buyers selecting roll forming equipment, the number of stations is a key configuration detail and should be considered in relation to the required finished tile profile.

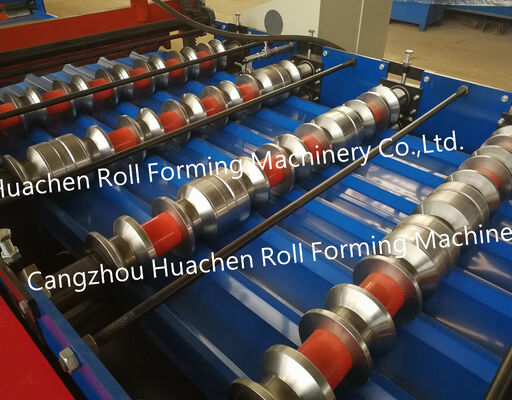

45# Steel Roller and Shaft Components

The rollers and shafts are specified as 45# steel, with quenching and plating treatment.

The forming system is equipped with a Φ70 mm shaft. These specifications provide clear information about the material and dimensional configuration of the machine's forming components.

Chain Drive System

Power transmission is provided through a chain drive system.

The transmission method is one of the machine's basic mechanical specifications and can be reviewed together with the roller station quantity, shaft diameter, and forming speed during equipment selection.

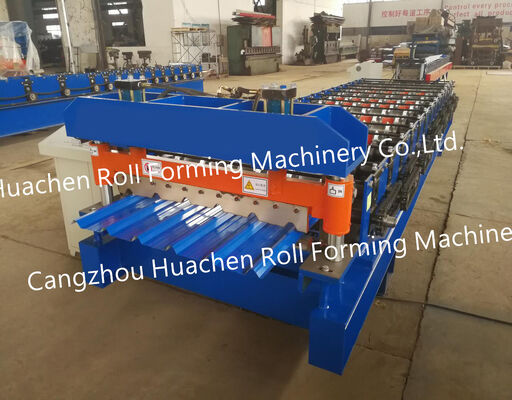

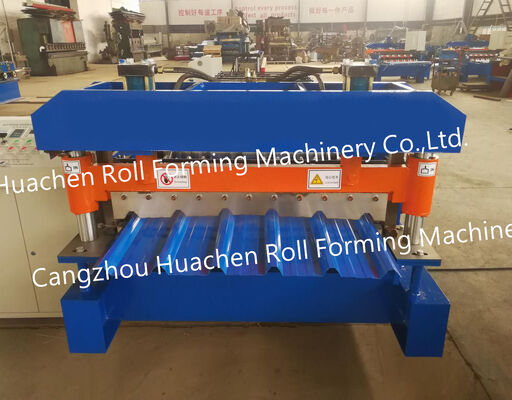

CR12 Cutter

The machine's cutting section uses CR12 as the specified cutter material.

The cutter specification is part of the overall equipment configuration and should be considered together with the required roofing profile and production requirements.

Production Speed

The machine has a specified production speed of 15–20 m/min.

This figure provides a measurable reference for production planning and equipment comparison. Actual production conditions may vary depending on the selected profile, raw material, and operating setup.

Power and Electrical Supply

The total power configuration is 4+4 kW.

The machine requires a 380 V / 50 Hz / 3-Phase electrical supply. Before installation, the power conditions at the production site should be checked against the specified machine requirements.

Application Scope

The 13-Station Color Steel Tile Roll Forming Machine is intended for continuous forming of color steel roofing tile profiles.

Typical application areas include:

• Color steel tile production
• Metal roofing profile manufacturing
• Steel roofing material forming
• Roofing sheet profile processing
• Building roofing material production

The appropriate machine configuration should be selected according to the required finished profile and material specifications.

Configuration Summary

The machine is configured with 13 roller stations, 45# steel rollers and shafts, and quenching and plating treatment. The forming system uses a Φ70 mm shaft.

For the cutting and transmission sections, the equipment is specified with a CR12 cutter and chain drive system. The production speed is 15–20 m/min, with 4+4 kW total power and a 380 V / 50 Hz / 3-Phase voltage configuration.

These technical specifications provide a straightforward reference for buyers comparing a 13-Station Color Steel Tile Roll Forming Machine with the requirements of a specific roofing profile production project.
