A tile-making machine / roof panel forming machine that uses metal coil rolling process

Main Technical Parameters

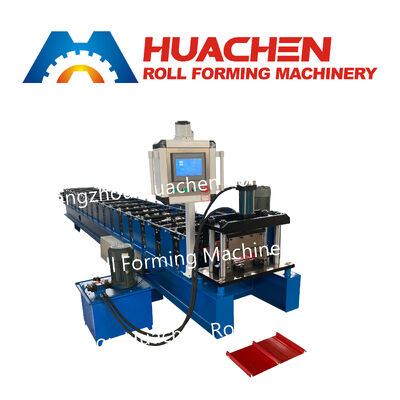

Product Overview

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applicationsThe 12-Station Color Steel Tile Roll Forming Machine is designed for manufacturing color steel roofing tile profiles through a continuous roll forming process. The machine is equipped with a 12-station forming section, allowing the material to be shaped gradually through multiple roller stages.

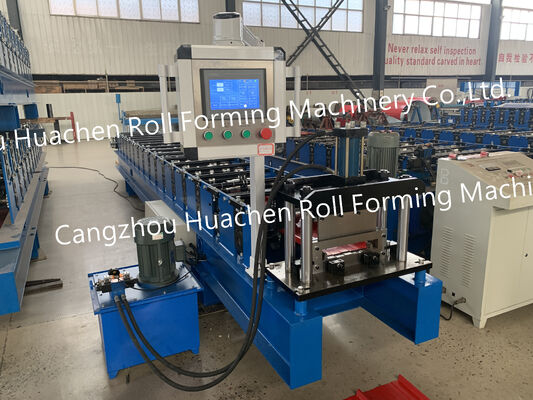

Forming Process Configuration

The machine is equipped with 12 roller stations arranged within the forming section. During operation, the steel sheet is guided through each station in order, where the profile is gradually formed according to the required design.

The roller station quantity is an important specification for buyers when selecting equipment for different color steel tile profile requirements.

Roller and Shaft Details

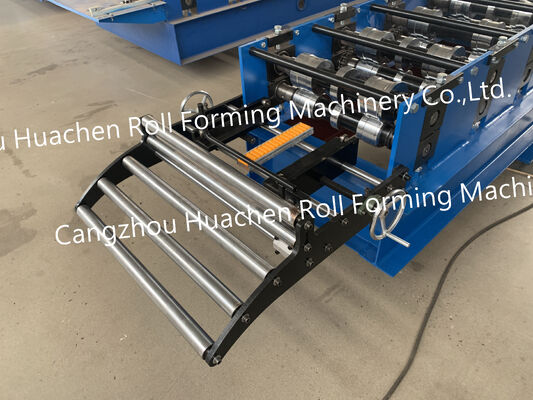

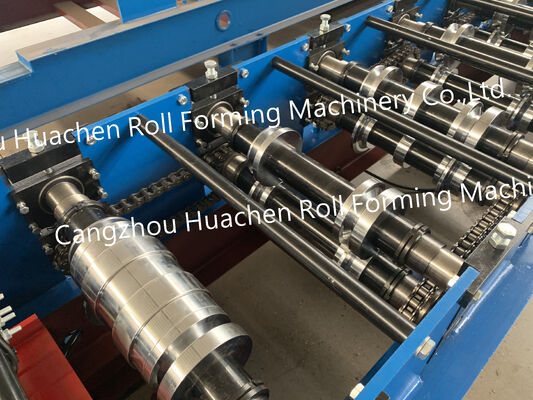

The forming rollers and shafts are manufactured from 45# steel with quenching and plating treatment.

The machine uses a Φ70 mm shaft diameter, providing a specific structural parameter for the forming system. These details help buyers evaluate the mechanical configuration of the equipment.

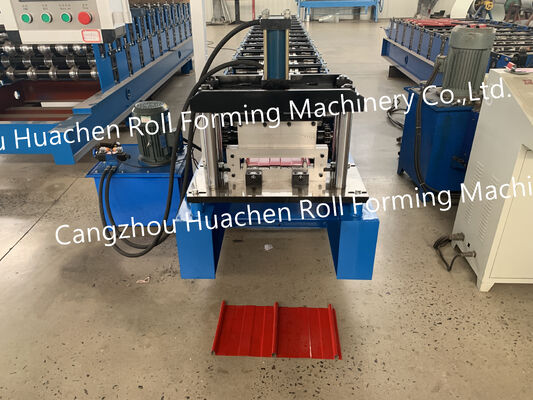

Drive and Cutting System

The transmission system adopts a chain drive structure.

The cutting unit is configured with a CR12 cutter. The drive type and cutter material are key components of the machine configuration and can be reviewed according to the production requirements.

Production Speed and Power Configuration

The machine provides a specified forming speed of 15–20 m/min.

The total power requirement is 4+4 kW, with an electrical configuration of 380 V / 50 Hz / 3 Phases. The installation site should provide a compatible power supply before machine operation.

Application Fields

The 12-Station Color Steel Tile Roll Forming Machine is mainly used for continuous production of color steel roofing tile profiles.

Typical applications include:

• Color steel roofing tile manufacturing
• Metal roofing profile processing
• Steel sheet profile forming
• Roofing material production
• Building profile manufacturing

The final machine configuration should be confirmed according to the required finished profile and production conditions.

Configuration Summary

This machine features a 12-station roller forming system, 45# steel rollers and shafts with quenching and plating treatment, and a Φ70 mm shaft diameter.

The equipment is also configured with a CR12 cutter, chain drive transmission, 15–20 m/min forming speed, 4+4 kW total power, and 380 V / 50 Hz / 3-Phase electrical supply.

These technical specifications provide a clear reference for customers evaluating a Color Steel Tile Roll Forming Machine for their production requirements.
