Specialized in manufacturing metal roll manufacturing machines and wall panel and roof panel forming machines

Progressive Forming with 15 Stations

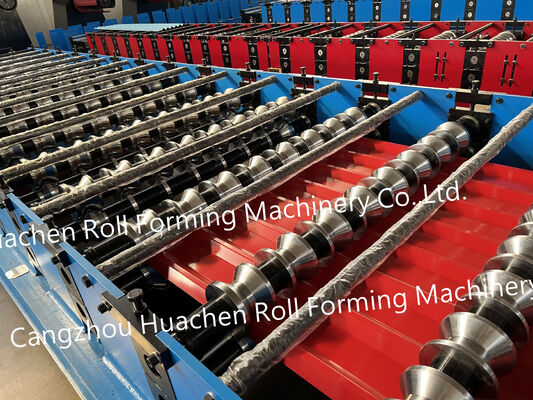

• The forming system is equipped with 15 roller stations. During operation, the steel sheet moves through the forming section and is shaped progressively by the roller assemblies.
• For a roofing profile project, the number of roller stations is one of the machine specifications that should be checked against the required finished profile.

Roller and Shaft Construction

The rollers and shafts are specified as 45# steel, with quenching and plating included in their treatment.

A Φ70 mm shaft is used in the forming system. These specifications provide measurable information about the machine's roller and shaft configuration and can be used as reference points during equipment selection.

Chain-Driven Transmission

The machine uses a chain drive transmission system.

The drive configuration is part of the overall mechanical design and can be evaluated together with the roller station count, shaft diameter, and forming speed when comparing color steel tile roll forming equipment.

CR12 Cutting Component

The cutting system uses CR12 as the specified cutter material.

For buyers reviewing different roll forming machines, the cutter material is one of the technical details that should be confirmed together with the required roofing profile and cutting configuration.

Forming Speed: 15–20 m/min

The specified forming speed is 15–20 m/min.

This value provides a direct reference for production planning and machine comparison. Actual production conditions may depend on the selected profile, material, and operating setup.

Electrical Configuration

The machine has a total power specification of 4+4 kW and uses a 380 V / 50 Hz / 3-Phase power supply.

The electrical requirements should be checked against the available power infrastructure at the intended installation site before commissioning.

Application Areas

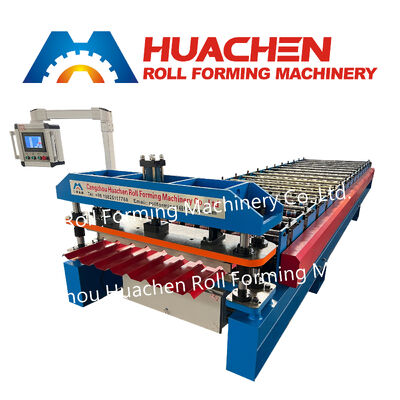

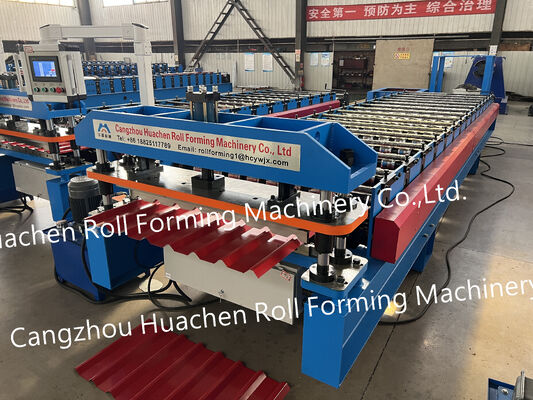

This 15-Station Color Steel Tile Roll Forming Machine is intended for continuous forming of color steel roofing tile profiles.

Possible applications include:

• Color steel tile manufacturing
• Metal roofing profile forming
• Steel roofing material production
• Roofing sheet processing
• Building roofing profile manufacturing

The machine should be matched with the required profile and material specifications before production use.

Key Points for Equipment Selection

When evaluating a 15-Station Color Steel Tile Roll Forming Machine, buyers can review the equipment through several measurable specifications.

The machine provides 15 roller stations, 45# steel rollers and shafts with quenching and plating treatment, and a Φ70 mm shaft. Its configuration also includes a CR12 cutter and chain drive transmission.

For production planning, the specified forming speed is 15–20 m/min. The electrical configuration is 4+4 kW total power with 380 V / 50 Hz / 3-Phase

power supply.

These parameters provide a clear technical reference for determining whether the machine configuration corresponds with a particular color steel roofing profile production requirement.
