Trapezoid Roofing Tile Roll Forming Machine Standing Seam Roof Rolling

Main Technical Parameters

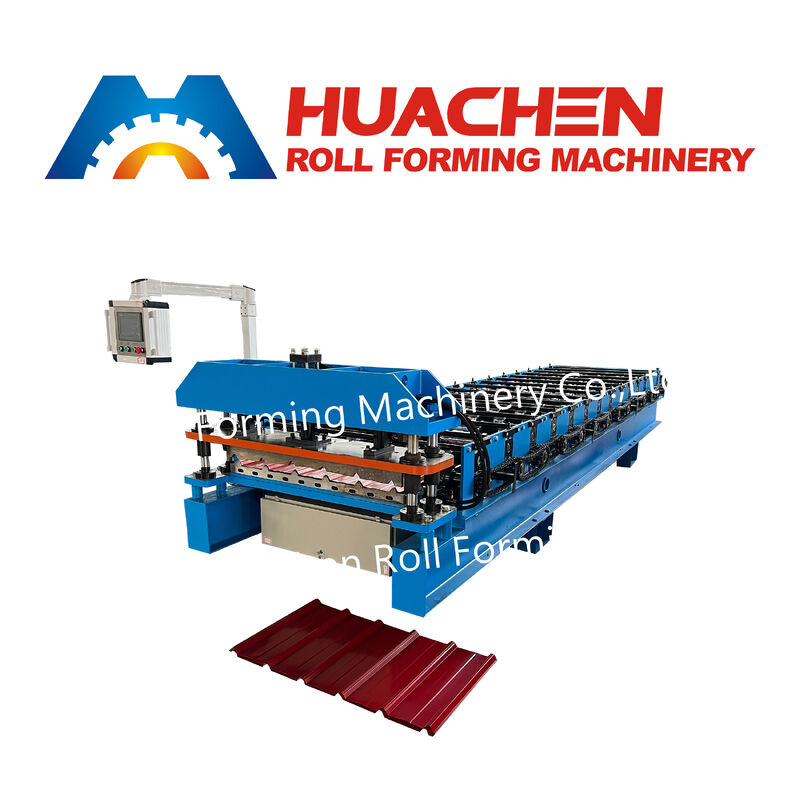

Product Overview

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. This robust equipment delivers consistent precision and speed, making it ideal for large-scale production facilities seeking to produce high-quality building materials.

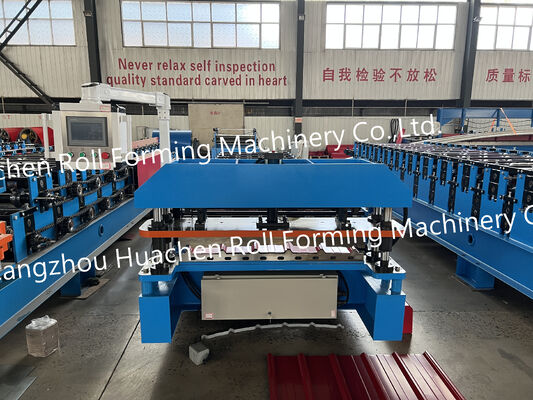

Forming Station Configuration

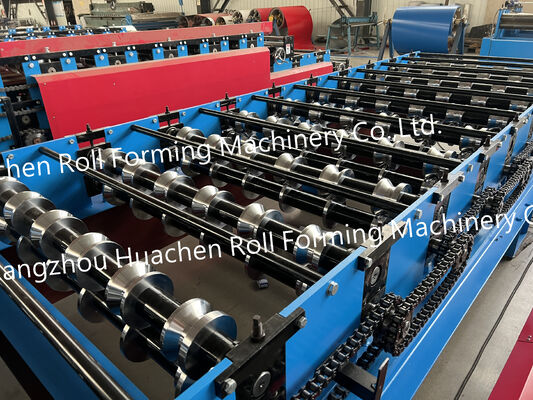

The 14 roller stations make up the main forming section of the machine. The roofing sheet is guided through the stations in sequence, with the profile being formed progressively during the process.

For equipment selection, the number of stations should be matched with the specific roofing profile rather than considered as an isolated specification.

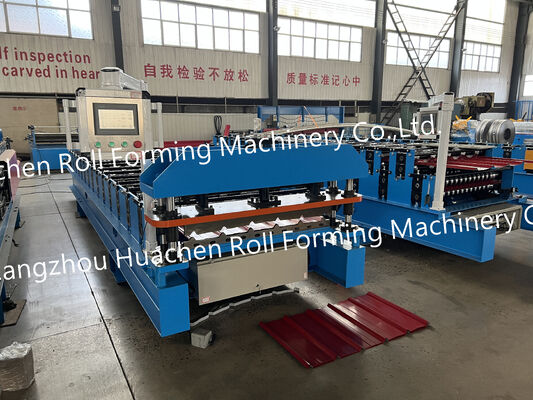

Roller, Shaft and Treatment Details

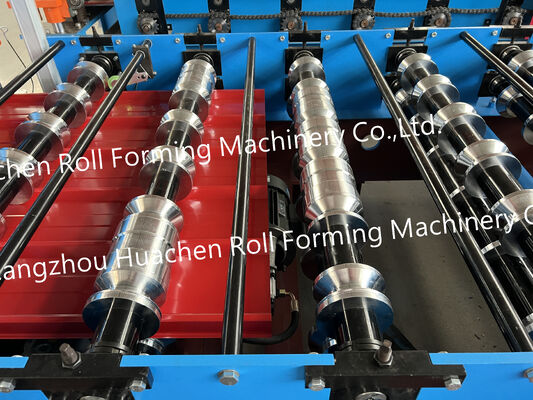

The machine uses 45# steel for its rollers and shafts. The supplied specification also identifies quenching and plating as the treatment applied to these components.

The shaft diameter is Φ70 mm, giving buyers a specific dimensional reference when reviewing the mechanical construction of the forming section.

Transmission and Cutting Arrangement

A chain drive is used for the machine's transmission system.

For cutting, the machine is equipped with a CR12 cutter. These two specifications form part of the machine's basic mechanical configuration and can be reviewed when comparing different color steel tile forming equipment.

Forming Speed

The specified forming speed is 15–20 m/min.

This value provides a measurable reference for production planning and equipment comparison. The actual production situation can depend on factors such as the selected roofing profile, raw material, and operating conditions.

Power Supply

The machine has a stated total power of 4+4 kW and is designed for a 380 V / 50 Hz / 3-Phase electrical supply.

The electrical conditions at the installation site should be confirmed before ordering and commissioning the equipment.

Production Applications

This 14-Station Color Steel Tile Roll Forming Machine is intended for the continuous forming of color steel roofing tile profiles.

It can be considered for applications such as:

• Color steel tile manufacturing
• Metal roofing profile production
• Steel roofing sheet forming
• Roofing material processing
• Building roofing profile production

The final machine configuration should correspond to the required finished profile and material specifications.

Key Parameters for Machine Evaluation

When comparing roll forming machines, buyers can use the following measurable specifications as a starting point:

14 roller stations define the forming section, while the Φ70 mm shaft and 45# steel roller and shaft construction describe important mechanical components. The machine also specifies a CR12 cutter, chain drive, and a forming speed of 15–20 m/min.

For installation planning, the machine is specified with 4+4 kW total power and a 380 V / 50 Hz / 3-Phase power supply.

These parameters provide a technical basis for checking whether the machine configuration matches the requirements of a particular color steel roofing tile production project.
