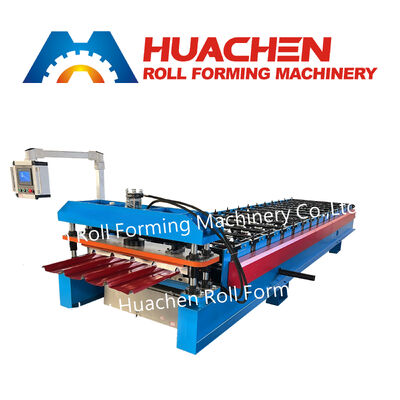

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. This robust equipment delivers consistent precision and speed, making it ideal for large-scale production facilities seeking to produce high-quality building materials.

Forming Section

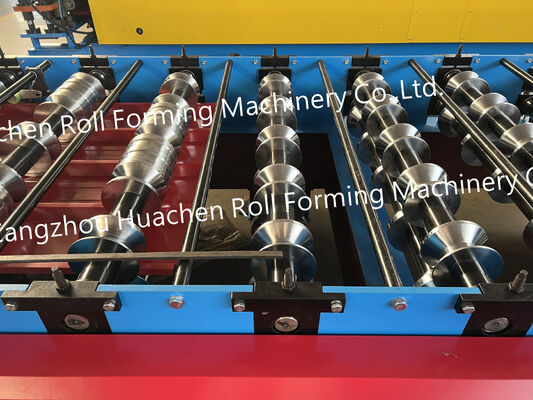

With 15 roller stations, the machine forms the steel sheet progressively as it moves through the roll forming section.

The station count is a key configuration parameter for a roofing roll forming machine. It should be considered alongside the required finished profile when determining whether the equipment is suitable for a particular color steel tile production project.

Material and Shaft Configuration

The rollers and shafts are specified as 45# steel, with quenching and plating treatment applied to the roller and shaft components according to the supplied machine specifications.

The forming system uses a Φ70 mm shaft. These specifications provide concrete technical information for buyers reviewing the mechanical configuration of the equipment.

Forming Speed and Drive

The specified forming speed is 15–20 m/min. The machine uses a chain drive for power transmission.

For equipment selection, the forming speed and drive type can be reviewed together with the number of roller stations, shaft diameter, and required roofing profile.

Cutting System

The machine is equipped with a CR12 cutter.

The cutter material is one of the specified components of the cutting system. For a complete machine evaluation, buyers should consider the cutter specification together with the required product profile and production process.

Electrical Configuration

The machine has a stated total power of 4+4 kW and operates on 380 V / 50 Hz / 3-Phase power.

The installation site should have a compatible electrical supply before commissioning. The machine's power requirements should also be considered when planning the overall production line.

Roofing Applications

The machine is intended for forming color steel roofing tile profiles through a continuous roll forming process.

Potential production applications include:

• Color steel tile manufacturing
• Metal roofing profile production
• Steel roofing material forming
• Roofing profile processing
• Building roofing material production

The specific application should be matched with the required profile and corresponding machine configuration.

Technical Points for Equipment Selection

For buyers comparing a 15-Station Color Steel Tile Roll Forming Machine, several measurable specifications can be used as initial selection criteria.

The machine provides 15 roller stations, a Φ70 mm shaft, 45# steel roller and shaft construction with quenching and plating, a CR12 cutter, and a 15–20 m/min specified forming speed. Its transmission system uses a chain drive, while the electrical configuration is 4+4 kW at 380 V / 50 Hz / 3-Phase.

These parameters can be used to compare the machine configuration with the technical requirements of a specific color steel roofing tile production project.
