Professional production of roller-forming machines for colored steel single-layer roof panels

Main Technical Parameters

Product Overview

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. This robust equipment delivers consistent precision and speed, making it ideal for large-scale production facilities seeking to produce high-quality building materials.

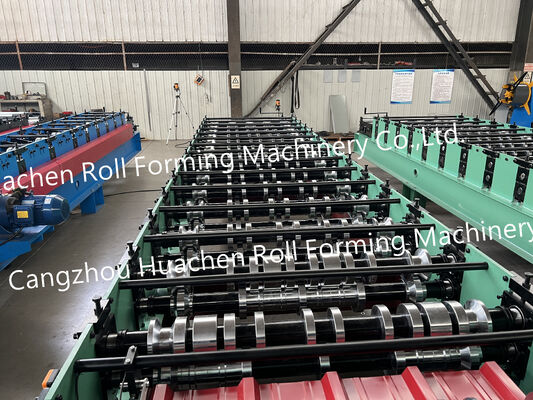

15-Station Forming System

The machine incorporates 15 roller stations within its forming system. Each station participates in the progressive shaping process as the steel sheet moves continuously through the machine.

The number of roller stations is an important equipment specification when selecting a roll forming machine, particularly for projects requiring a specific roofing profile.

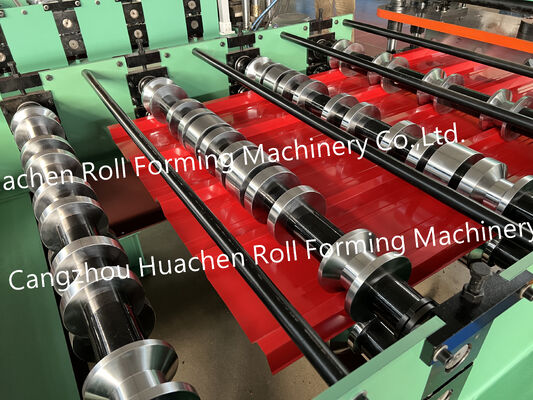

45# Steel Rollers and Shafts

Both the rollers and shafts use 45# steel as the specified material. The rollers and shafts are also treated through quenching and plating.

The shaft diameter is Φ70 mm, providing a clearly defined dimensional specification for the machine's forming structure.

15–20 m/min Forming Speed

The machine has a specified forming speed of 15–20 m/min.

This figure can be used as a reference when planning production capacity and comparing different color steel tile roll forming machine configurations. Actual operating conditions may depend on the product profile, material specifications, and production setup.

Chain Drive Transmission

A chain drive system is used for machine transmission.

The drive type forms part of the machine's mechanical configuration and should be evaluated together with the roller stations, shaft dimensions, forming speed, and other technical specifications when selecting equipment.

CR12 Cutting System

The machine is equipped with a cutting system using CR12 cutter material.

The cutter material is one of the key specifications of the cutting section and can be included in technical comparisons between different roofing roll forming machines.

Electrical Configuration

The machine is configured with 4+4 kW total power and requires a 380 V / 50 Hz / 3-Phase electrical supply.

The electrical requirements should be confirmed before installation to ensure that the available power supply at the production site is compatible with the machine configuration.

Application

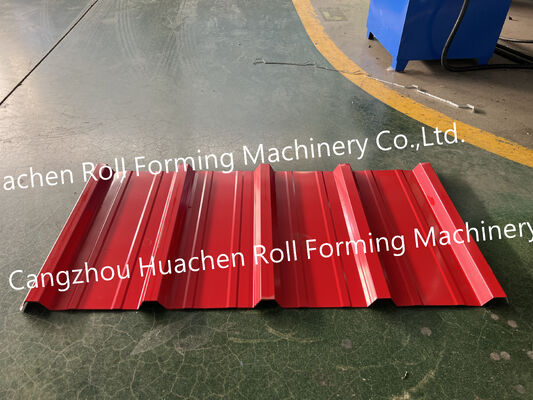

The 15-Station Color Steel Tile Roll Forming Machine is intended for continuous production of color steel roofing tile profiles.

Typical applications may include:

• Color steel tile production
• Metal roofing profile manufacturing
• Steel roofing material production
• Roofing sheet forming
• Building roofing profile production

The final machine configuration should be matched to the required roofing profile and material specifications.

Key Configuration

The main technical configuration of this roll forming machine includes:

• 15 roller stations
• 45# steel rollers and shafts
• Quenching and plating treatment
• Φ70 mm shaft diameter
• CR12 cutter material
• Chain drive transmission
• 15–20 m/min forming speed
• 4+4 kW total power
• 380 V / 50 Hz / 3-Phase power supply

These measurable specifications provide buyers with a clear technical reference when evaluating a Color Steel Tile Roll Forming Machine for their production requirements.
