Product Details:
|
Forming Speed: | 15m/min | Voltage: | 380V/50Hz/3Phase |
---|---|---|---|
Main Roller Material: | CR12 | Blade Material: | Cr12 |
Power: | 15+5.5KW | Shaft: | 45# Steel |
Structure: | Stand Type | Suitable Material: | 1.5-2mm(DX51 - GALVANIZED/Q300-350) |
Highlight: | 14 Stations Cold Roll Machine,Racking Beams Cold Roll Machine,Stand Type Cold Roll Forming Equipment |

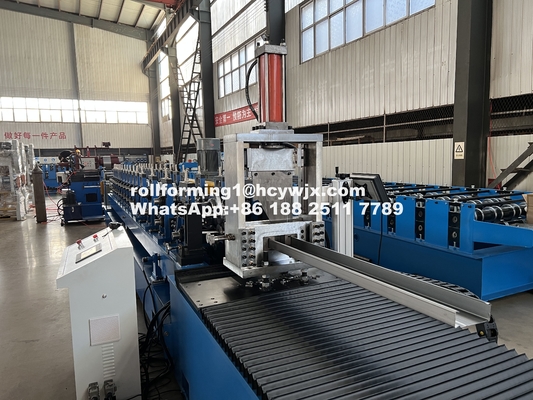

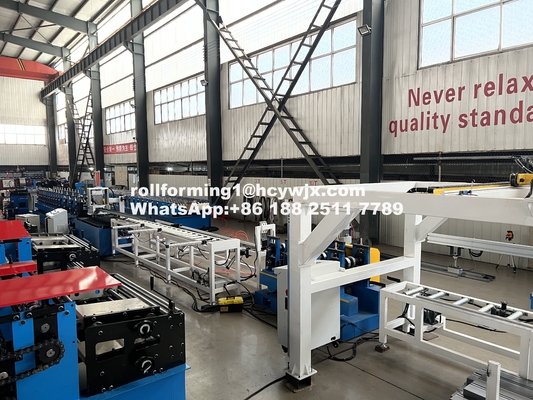

This machine is Double C Clasping Beam Machine Line. It is an integration of various different technologies used primarily in the field of storage shelf equipment. This machine includes hydraulic decoiler, a leveling device, a forming unit, a cutting system, a double C Clasping Machine, a robot-operated automatic palletizing part, a steel coil butt welding machine, and an inkjet printer. All of these can be customized in accordance with specific needs.
The utility model relates to a double C-shaped beam. It can be used for equipment applicaations in the storage field. The key points of its technical solution are quite straightforward – it consists of two C-shaped beams that are coupled together. A number of through holes facing each other is provided for easy connection. The C-shaped beams have a limit column installed in each pair of through holes. These limit columns have stoppers on their ends that are outside the C-shaped beams and a positioning pin on the end that is within the C-shaped beams. Both ends of the positioning pins are equipped with elastic clips and a compression spring is placed atop the limiting column. A positioning ring is connected to one end of the compression spring and is partially inserted into the elastic clips, causing it to be give in an compressed state.
The main advantage of this machine is its improved stability in the connection between two C-shaped beams. This is due to the inventive design of the limit columns, stoppers, positioning pins and elastic clips, as well as the compression spring and positioning ring.
Parameter | Value |
---|---|
Blade Material | Cr12 |
Forming Speed | 15m/min |
Shaft | 45# Steel |
Power | 15+5.5KW |
Structure | Stand Type |
Voltage | 380V/50Hz/3Phase |

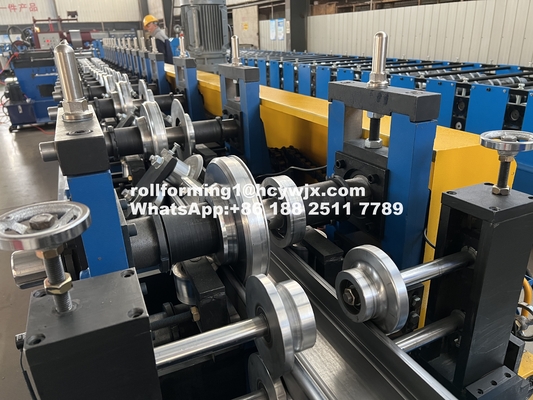

Rollers | 14Stations |
Roller Shaft Diameter | 80mm |
Suitable Material | 1.5-2mm(DX51 - GALVANIZED/Q300-350) |
Main Roller Material | CR12 |
Iron plate or steel plate is machined (stamped or rolled) into a "C" shape. The processing of the steel produces strong plastic deformation, causing the crystal lattice to twist and distort, and the grains to shear and slip. As a result, the grains are elongated, which increases the steel's hardness, but decreases its plasticity and impact toughness. The steel thus formed into a C-shaped component is referred to as a single-eye C-shaped beam.
When two single-eye C-shaped beams are placed upside-down in relation to each other, they are then welded together to make the structure even stronger. This type of steel structure can then be used for greater strength purposes
