|Roller Shaft Diameter:||80mm||Rollers:||14Stations|
|Structure:||Stand Type||Blade Material:||Cr12|
|Power:||15+5.5KW||Main Roller Material:||CR12|

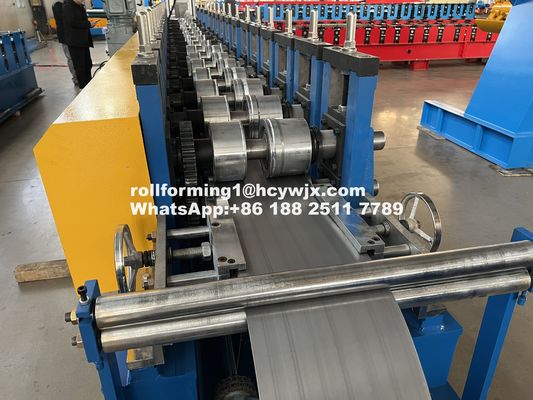

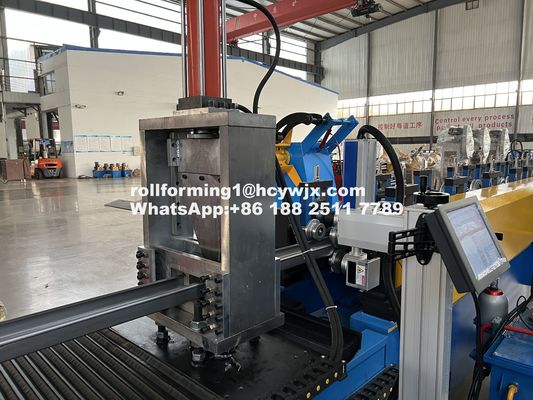

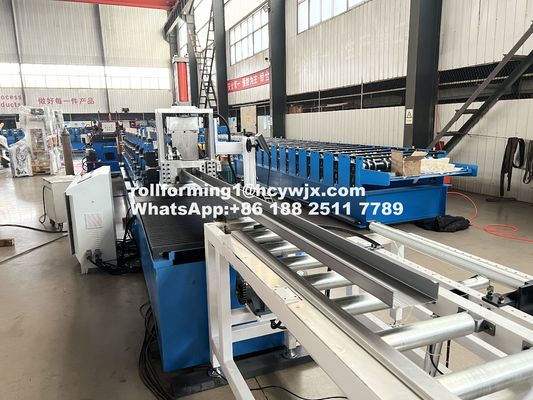

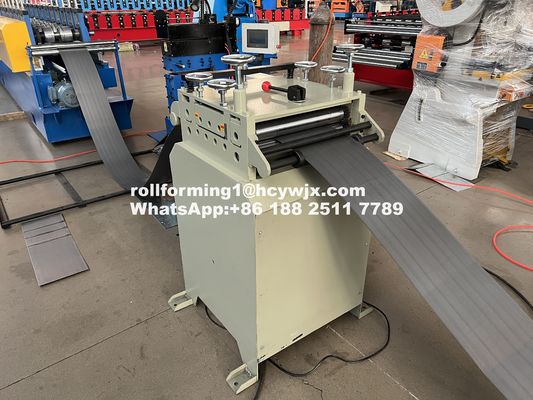

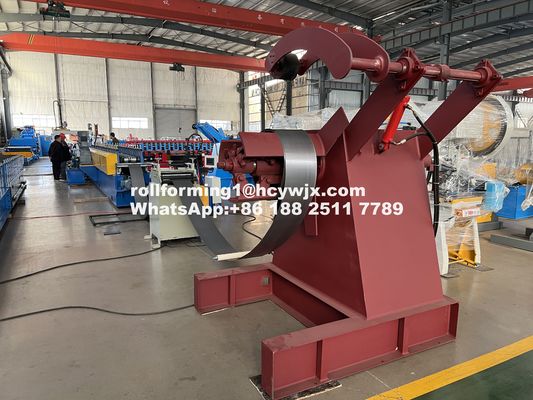

The Double C Clasping Beam Machine Line is an equipment used for the field of storage shelf. It consists of various parts, including a hydraulic decoiler, a leveling device, a forming unit, a cutting system, a double C clasping machine, a robot automatic palletizing part, a steel coil butt welding machine, and an inkjet printer. All these parts can be customized according to users' needs.
The core of the Double C Clasping Beam Machine Line is the double C-shaped beam: two C-shaped beams are linked together and each of them is equipped with multiple pairs of opposite through holes. As for the through holes, there are stoppers equipped outside one end of each limit column and positioning pins equipped inside the C-shaped beam. Moreover, both ends of the positioning pin are threaded with elastic clips, a compression spring is set on the limiting column such that one end of the compression spring is provided with a positioning ring. It is partially inserted into the two elastic clips with the compression spring in a compressed state.
This creative design of the Double C Clasping Beam Machine Line provides improved stability for the connection of two C-shaped beams, making it a great tool for storage shelf equipment.
|Main Roller Material||CR12|
|Roller Shaft Diameter||80mm|
|Suitable Material||1.5-2mm(DX51 - GALVANIZED/Q300-350)|
Iron plate or steel plate is machined (stamped or rolled) into a "C" shape. The process of steel production brings about strong plastic deformation, resulting in a twist and distortion of the crystal lattice and the shearing and slippage of the grains. Subsequently, the grains become elongated, the hardness is significantly enhanced, and the plasticity and impact toughness are decreased. The formed C-shaped component is referred to as a single-eye C-shaped beam. The two C-shaped beams are exchanged up and down and then welded together to bolster their strength.
Brand Name: HC
Model Number: HC80/90/100/110/120/130/140/150/160
Place of Origin: China
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 60Days
Payment Terms: 30% deposit by T/T before manufacture, The balance to be paid before delivery.
Supply Ability: 60 Sets Per Month
Forming Speed: 15m/min
Roller Shaft Diameter: 80mm
Suitable Material: 1.5-2mm(DX51 - GALVANIZED/Q300-350)
Structure: Stand Type
container board roll forming machine, Container Siding Machine, roll forming machine, cold roll forming machine
We provide complete technical service and support for our cold roll forming machines, including installation, commissioning, spares and after-sales service. Our service staff are experienced professionals who are specially trained in the operation of cold roll forming machines.
We offer on-site service, including maintenance and repair of these machines, as well as remote support via phone, email or video call. Our technicians are available to answer questions and provide technical assistance. We also provide a range of spare parts for our cold roll forming machines, such as cutting blades, forming tools and other consumables.
We have a comprehensive service plan, which includes preventive maintenance, regular checkups and scheduled servicing. This is designed to ensure that your cold roll forming machines are operating safely and efficiently. We also provide a range of technical support and training services, including training in operation and maintenance, as well as troubleshooting and problem-solving.
We strive to provide the highest level of service and support for our customers. If you have any questions or need any assistance, please do not hesitate to contact us.
A1: The brand name of the Cold Roll Forming Machine is HC.
A2: The available model numbers for the Cold Roll Forming Machine are HC80/90/100/110/120/130/140/150/160.
A3: The Cold Roll Forming Machine is manufactured in China.
A4: Yes, the Cold Roll Forming Machine has CE certification.
A5: The minimum order quantity for the Cold Roll Forming Machine is 1.
