Name: Hydraulic Automatic Highway Guardrail Roll Forming Machinery with CE Certificate
Brand: Cangzhou Huachen Roll Forming Machinery Co., Ltd.
SKU: HC330
Price: 39,000.00 USD
Availability: InStock

Hydraulic Automatic Highway Guardrail Roll Forming Machinery with CE Certificate

1Set

MOQ

29000-49000USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Thickness: 2-3mm

Certificate: ISO&CE

Warranty: 1year

Highlight:

sheet metal Forming Machine

sheet metal roll forming machines

Basic Infomation

Place of Origin: MADE IN CHINA

Brand Name: HC

Certification: CE

Model Number: HC330

Payment & Shipping Terms

Packaging Details: Main machine is nude, the control panel is packed by carton box.

Delivery Time: 60days after receive agreed deposit.

Payment Terms: 30% deposit by TT in advance, the balance to be paid before delivery.

Supply Ability: 20Set/Month

Gallery

Hydraulic Automatic Highway Guardrail Roll Forming Machinery with CE Certificate

Product Description

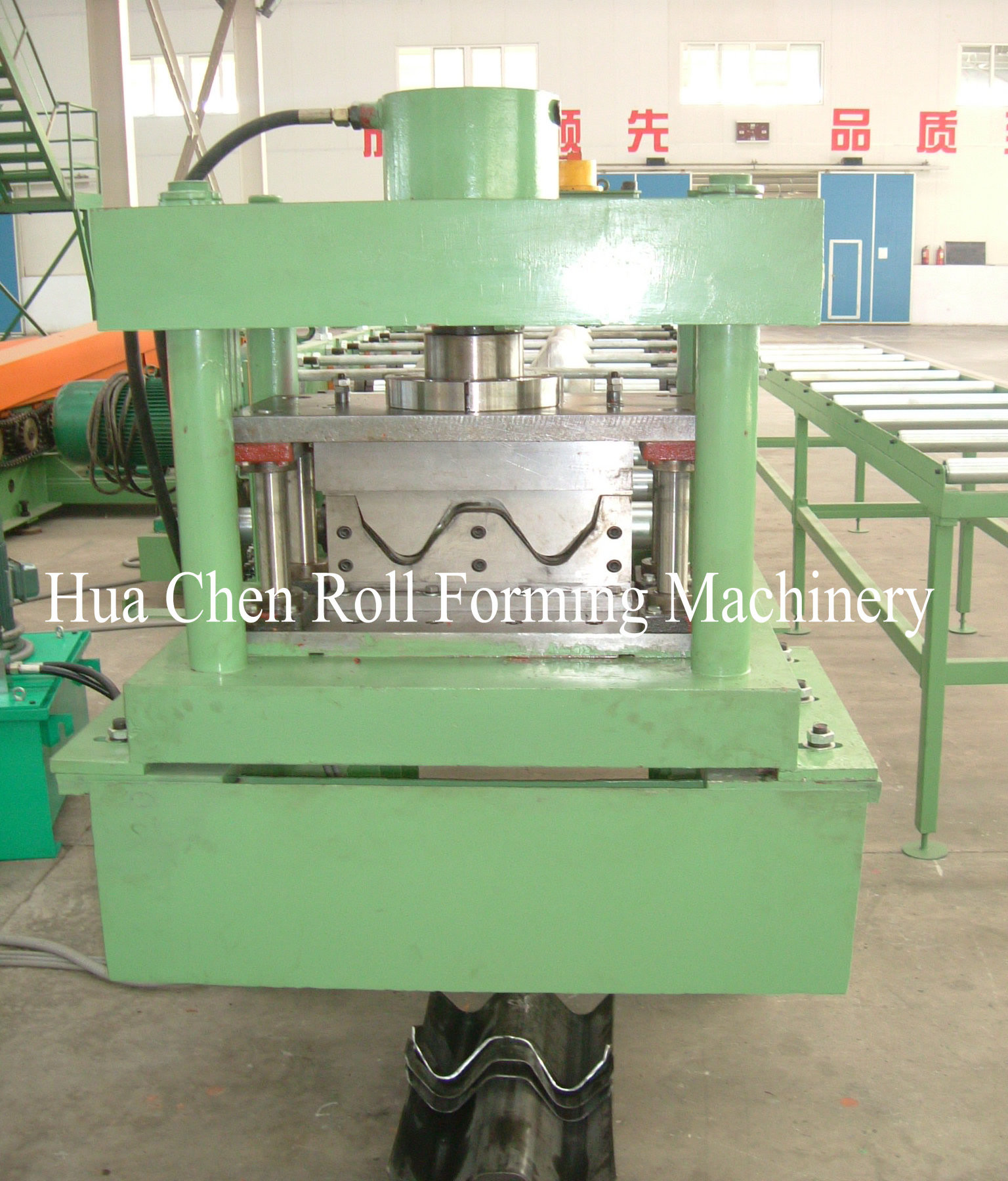

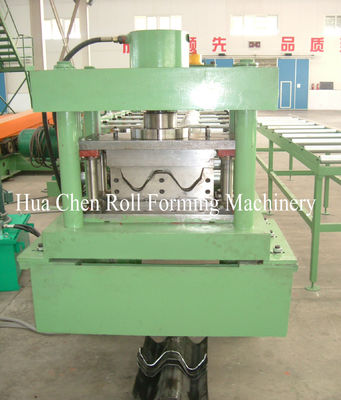

Highway Guardrail Roll Forming Machine

Hydraulic Automatic Highway Guardrail Roll Forming Machinery with CE Certificate 0

1.Quick Detail:

1.Suitable to process: Color steel plate

2.Width of the plate: 550mm

3.Rollers: 24 rows

4.Dimensions: 11.6*1.35*1.51m

5.Power: 22+7.5kw

6.Rolling material: shaft bearing steel(quenching)

7.Thickness of the plate:2.5-3mm

8.Voltage: 380V 50Hz 3phases

9.Material of the cutting plate: Cr12

10.Hydraulic: 40#

11.Processing precision: Within 1.00mm

12.Control system: PLC control

2,Description:

Highway Guardrail Roll Forming Machine Main parameter

No.	Main parameter of Highway Guardrail Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	550mm
3	Rollers	24 rows
4	Dimensions	11060013501510mm
5	Power	33+7.5kw
6	Rolling material	shaft bearing steel(quenching)
6	Thickness of the plate	2.5-3mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ100mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting

3.Competitive Advantage

1.ISO certification

2. CE certification

3. PLC Panasonic

4. One year free warranty

5. Low loss, easy operate

Hydraulic Automatic Highway Guardrail Roll Forming Machinery with CE Certificate 3
