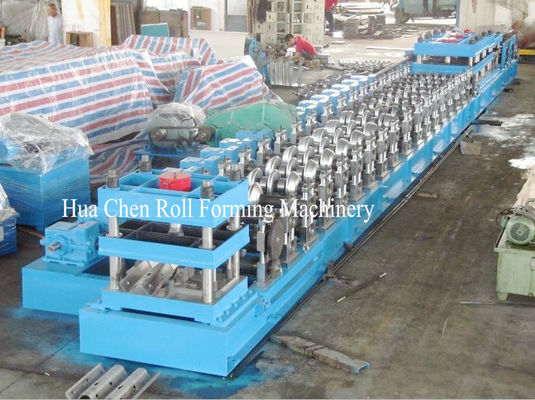

W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness
W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

Large Image :  W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: HC
Certification: CE
Model Number: HC330
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 48000USD
Packaging Details: Main machine is nude, the control panel is packed by carton box.
Delivery Time: 60days after receive agreed deposit.
Payment Terms: 30% deposit by TT in advance, the balance to be paid before delivery.
Supply Ability: 20Set/Month

W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

Description
Material Thickness: 3mm Speed: 10m/min
Punch: Included Drive: Gear Box
Warranty: 1 Year Free Technical Support: Whole Life
High Light:

sheet metal roll forming machines

,

Highway Guardrail Roll Forming Machine

Highway Guardrail Roll Forming Machine



Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 550mm

3. Rollers: 24 rows

4. Dimensions: 11.6*1.35*1.51m

5. Power: 22+7.5kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:2.5-3mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Hydraulic Decoiler

1. inner diameter: 450-550mm

2. outer diameter: 1500mm

3. coil width:1250mm

4. capacity: 5T

Feeding&Flatting Device

1. upper leveling roller: 3 station

2. lower leveling roller: 4 station

3. shaft: 45#steel

4. roller: 45#steel ang outer diameter 80mm

Forming Mchine

1. shaft: 45#steel and outer diameter 80mm

2. roller material: Cr15

3. gear box transmission

4. forming station:18 stations

5. forming speed: 8-12m/min

6. motor: 11kw

7. voltage: 220v 50hz 3phase

Hydraulic punching

1. punching type: hydraulic punching

2. punching material: Cr12

3. punching die: Cr12

Cutting

1. cutting type: hydraulic cutting

2. cutting material: Cr12&Cr12mov

3. oil pump: 18.5kw

Control System

1. PLC Brand:Delta

2. Screen: touch screen

3. automatic length and quantity measurement

4. control forming speed

5. error is easy to adjust

6. scram stop button

Runout Table length of runout table is according to client requirement

W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness 0

5,Description:



Highway Guardrail R Forming Machine  Main parameter

No.

   Main parameter of Highway Guardrail R Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

550mm

3

Rollers

24 rows

4

Dimensions

110600*1350*1510mm

5

Power

33+7.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

2.5-3mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ100mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting

W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness 1W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness 2W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness 3

Competitive Advantage



1. ISO certification

2. CE certification

3. PLC Panasonic

4. One year free warranty

5. Low loss, easy operate
