Product Details:
|
| Material: | GI | Thickness: | 4mm |
|---|---|---|---|
| Speed: | 10m/min | Roller: | Bearing Steel |
| Warranty: | 18 Month | Life Time: | 10 Years Above |
| High Light: | sheet metal Forming Machine,sheet metal roll forming machines |
||

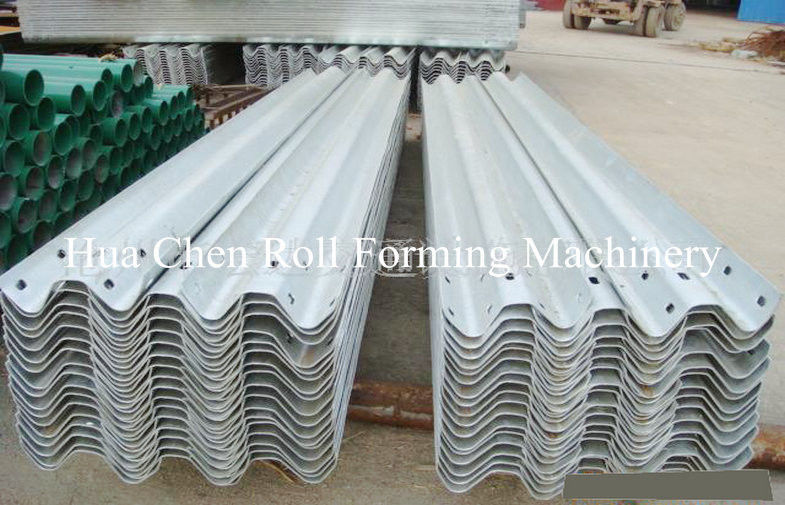

Factory price Automatic Highway Guardrail Forming Machine with Gear box driving
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 550mm
3. Rollers: 24 rows
4. Dimensions: 11.6*1.35*1.51m
5. Power: 22+7.5kw
6. Rolling material: shaft bearing steel(quenching)
7. Thickness of the plate:2.5-3mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
2. Processing technique and deployment
Processes: 10T Hydraulic de-coiler—Leveling device--Punching station--Roll forming machine—PLC system—Hydraulic system-Cutter—Output table
3. Technical Specification
(1)Hydraulic de-coiler: max.capacity: 10T;
(2) Hydraulic System: Power of the oil pump: 11kw Hydraulic oil :40#
(3)Computer control cabinet :
It adopts Delta PLC to control(PLC brand can be changed as your requirement).
The target piece length is adjustable and digit of it can be adjusted
Computed mode has two modes: automatic and manual one.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Reducer is Xingxing Cycloid which works stably and no noise
(4)Counter: One counter gauges length, pulses, and decides length
(5) Output table: It used to load the forming plate
Highway Guardrail R Forming Machine Main parameter
|
No. |
Main parameter of Highway Guardrail R Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
550mm |
|
3 |
Rollers |
24 rows |
|
4 |
Dimensions |
110600*1350*1510mm |
|
5 |
Power |
33+7.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
2.5-3mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting
After-sales service
Technical Support
Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.
Spare Parts
Promptly providing spare parts and wearing parts.
Upgrade
Improve technology and upgrade of equipments.
Other service
Raw Materials
Supply of raw materials made in China with good quality, quick delivery and reasonable price
Finished products purchase
