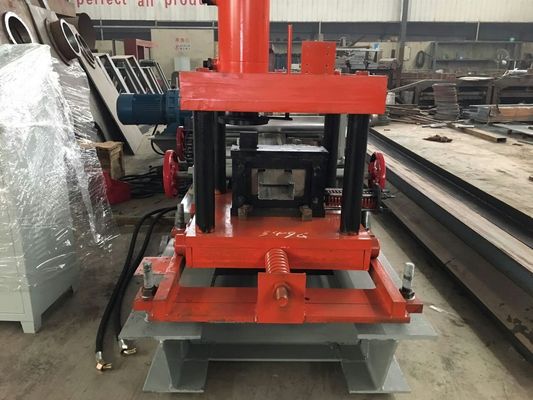

PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine

PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine
PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine

Large Image :  PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 15000-49000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine

Description
High Light:

roll form machines

,

purlin roll forming machine

1.size of c z purlin

C Z purlin roll forming machine/ Z section stud roll forming machine/ roll formig machine for saleC Z purlin roll forming machine/ Z section stud roll forming machine/ roll formig machine for sale



1. Processing technique and deployment of C Z purlin roll forming machin

Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cutting —Output Table

C Z purlin roll forming machine/ Z section stud roll forming machine/ roll formig machine for sale

2. Components of line of C Z purlin roll forming machin

No. Name Unit Qty
1 Decoiler set 1
2 Entry Beach set 1
3 Main Machine for roll forming set 1
4 Cutting System set 1
5 punching set 1
6 Output Table set 1
7 Control System(PLC) set 1
8 hydraulic station set

1



PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine 3PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine 4PLC Control C Purlin Roll Forming Machine / Z Section Stud Roll Forming Machine 5

Advantage:Automatic length cutting, automatic punching, high degree of automation, quick and easy installation

Length of the main part 6800mm*800mm*1200mm
Weight of main part 7.2 tons
Voltage 380V 50HZ 3Phase
Frame 400 H steel
Drive mode differential gear
Main axle material GR15
Material of shafts 45# steel
Diameter of shafts φ80mm
Number of rollers 12 rollers
Main power 11kw(cycloidal planetary gear speed reducer)
Forming speed 8m-10m/min
Adjustment method Half seams type Looper

Warranty

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment)
