Product Details:
|
| Suitable Material Thickness: | 1-1.2mm | Forming Station: | 12Stations |
|---|---|---|---|
| Shaft: | 45# Steel | Main Roller: | GCr15 Bearing Steel |
| Balde Material: | Cr12 | Structure: | Stand Type |
| Forming Speed: | 8-10m/min | Control System: | PLC Control |
| Power: | 11+7.5KW | Voltage: | 380v 50Hz 3phases |
| Highlight: | roll form machines,purlin roll forming machine |
||

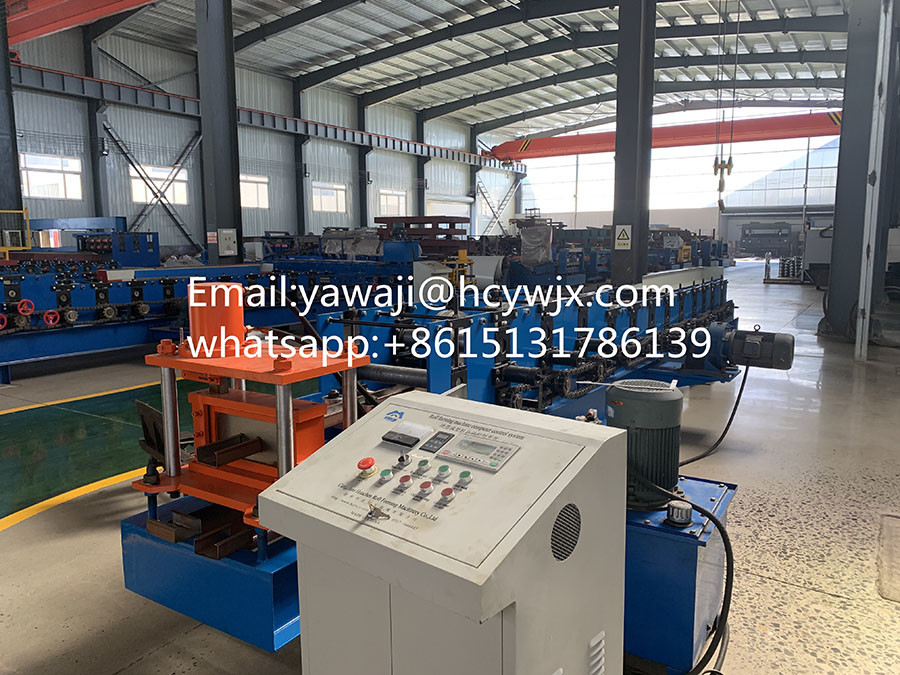

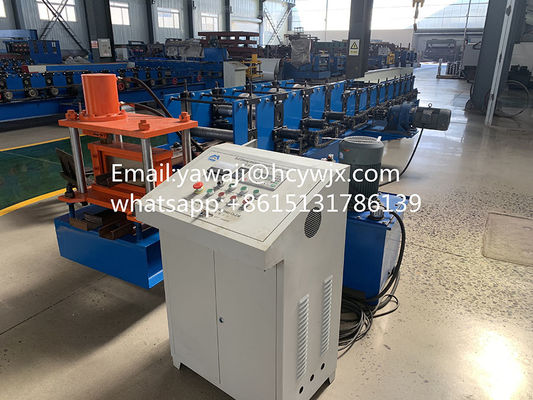

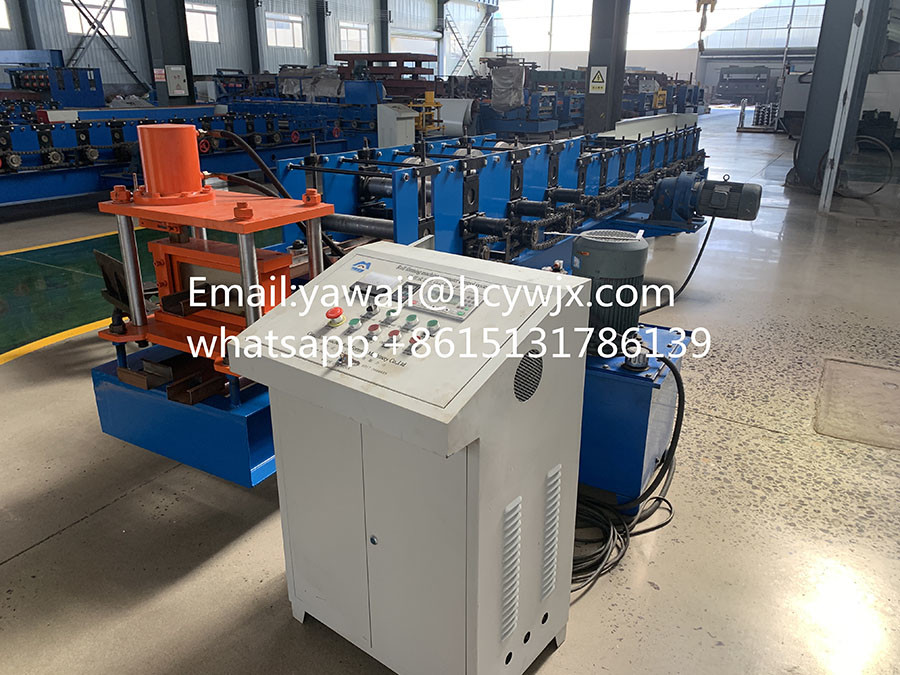

Components of line of C Z purlin roll forming machin
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Entry Beach | set | 1 |

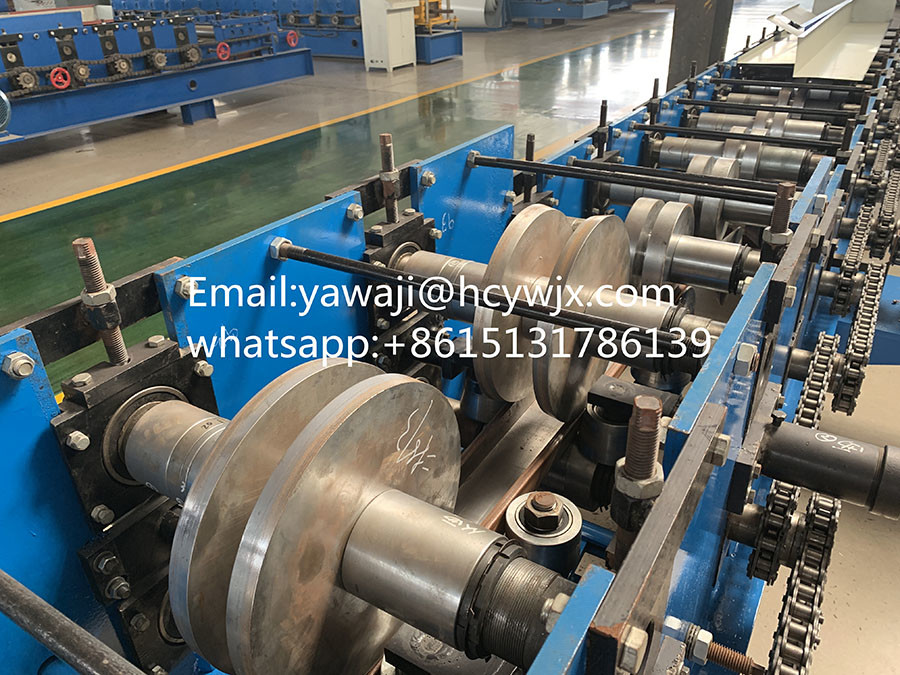

| 3 | Main Machine for roll forming | set | 1 |

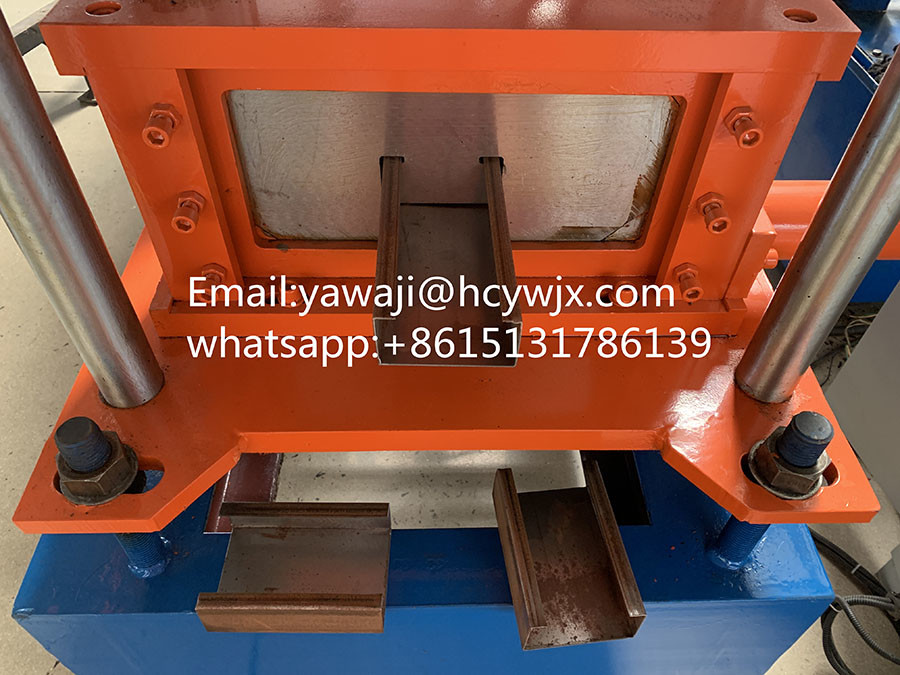

| 4 | Cutting System | set | 1 |
| 5 | punching | set | 1 |
| 6 | Output Table | set | 1 |
| 7 | Control System(PLC) | set | 1 |
| 8 | hydraulic station | set |
1 |
Advantage:Automatic length cutting, automatic punching, high degree of automation, quick and easy installation
| Length of the main part | 6800mm*800mm*1200mm |
| Weight of main part | 7.2 tons |
| Voltage | 380V 50HZ 3Phase |
| Frame | 400 H steel |
| Drive mode | differential gear |
| Main axle material | GR15 |
| Material of shafts | 45# steel |
| Diameter of shafts | φ80mm |
| Number of rollers | 12 rollers |
| Main power | 11kw(cycloidal planetary gear speed reducer) |
| Forming speed | 8m-10m/min |
| Adjustment method | Half seams type Looper |
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
