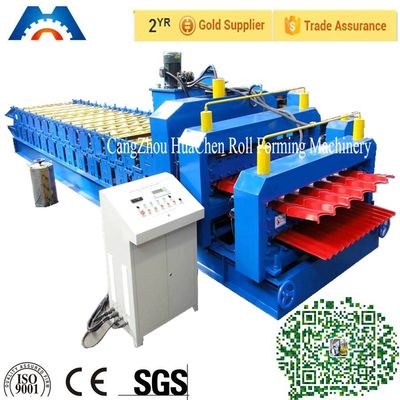

Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler

Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler
Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler

Large Image :  Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO/CE
Model Number: HC31-18
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler

Description
Color: Blue Type: Automatic
Control System: PLC Control Cutting Method: Hydraulic Cuting
Per Month: 30 Sets
High Light:

metal roll forming machine

,

corrugated roll forming machine

Roof Wall Double Roll Former With 0 -15m/min and Manual or Hydraulic Decoiler


 Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler 0Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler 1


Quick Detail:


1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 12/15 rows
4. Dimensions: 9.5*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control



Description:


 Main parameter

No.

 Main parameter of Double Layer Roof Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :12 rows
Down level :15 rows

4

Dimensions

9500*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control



Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

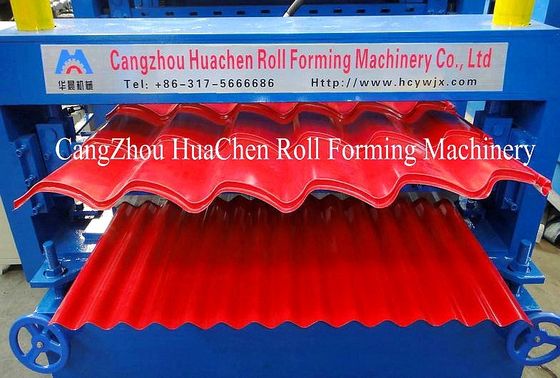

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site
 Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler 2Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler 3
Competitive Advantage
 1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain

Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler 4
