Product Details:
|
| Capacity: | 15m/min | Thickness: | 1mm |
|---|---|---|---|
| Warranty: | 12 Month | Type: | Wall Panel Roll Forming Machine |
| High Light: | sheet metal rolling equipment,roof sheet making machine |
||
Being counted amongst the most prominent entities of the market, we are engaged in offering a best quality range of Metal Wall Panel Roll Forming Machine which finds application in production of false ceiling section profiles, cable trays and DIN rails. The offered roll forming roofing product is valued for easy usage, high strength, corrosion & thermal resistance and easy installation. This Metal Wall Panel Roll Forming Machine is manufactured at our state-of-the-art manufacturing unit using high grade raw materials and cutting-edge technology in line with global set industry norms.
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate:1250mm
3. Rollers: 10 rows
4. Dimensions: 5.3*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control

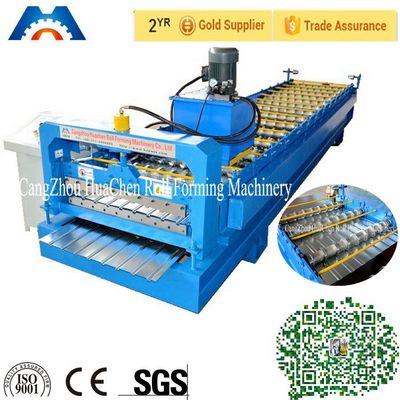

Description: Metal Profiling Wall Panel Roll Forming Machine With Hydraulic Precut
Main parameter
|
No. |
Main parameter of Wall Panel Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250 mm |
|
3 |
Rollers |
10 rows |
|
4 |
Dimensions |
5300*1550*1510mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

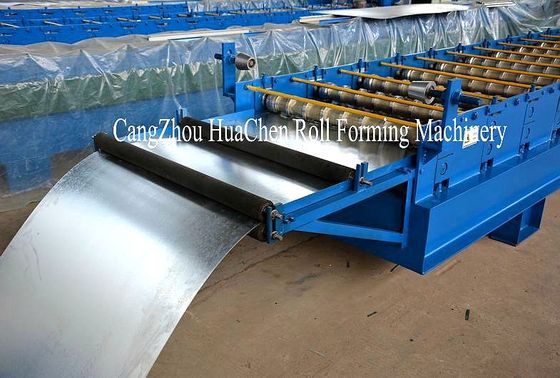

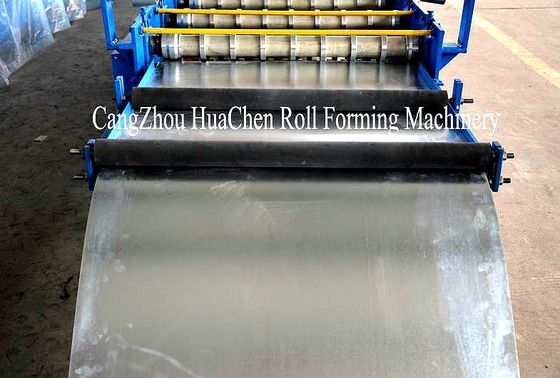

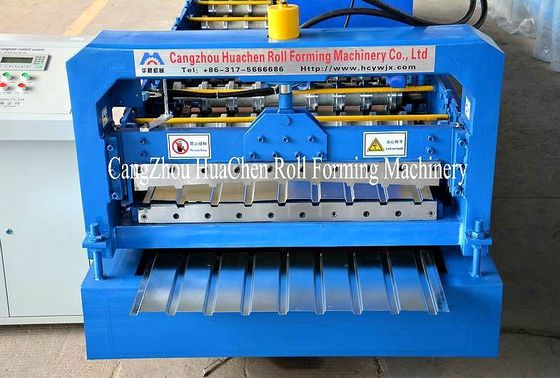

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

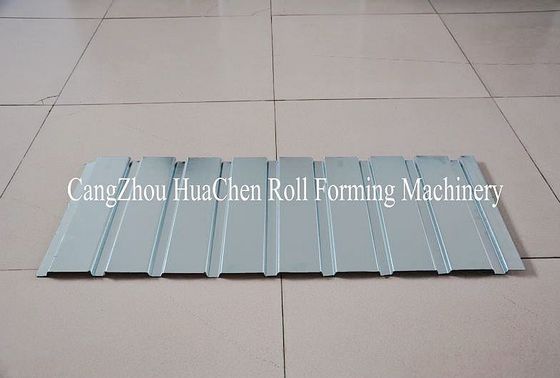

Application: Metal Profiling Wall Panel Roll Forming Machine With Hydraulic Precut
This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. sample customized
2. short production cycle
3. quality guarantee
4. high-effect, low consume
5. provide lifelong technical support
