Roof corrugated panel rolling machine, double-layer roof tile rolling machine

Name: Roof corrugated panel rolling machine, double-layer roof tile rolling machine
Brand: Cangzhou Huachen Roll Forming Machinery Co., Ltd.
SKU: Applicable to GI/PPGI sheets
Price: 30,500.00 USD
Availability: InStock

All Products

Glazed Tile Roll Forming Machine
(167)

Roofing Sheet Roll Forming Machine
(166)

Double Layer Roll Forming Machine
(294)

Wall Panel Roll Forming Machine
(144)

Ridge Cap Roll Forming Machine
(61)

Door Frame Roll Forming Machine
(29)

Shutter Door Roll Forming Machine
(59)

Floor Deck Roll Forming Machine
(55)

Downspout Roll Forming Machine
(31)

Slitter Cutter Machine
(31)

Cold Roll Forming Machine
(21)

CZ Purlin Roll Forming Machine
(58)

Gutter Roll Forming Machine
(51)

Stone Coated Roof Tile Machine
(11)

Highway Guardrail Forming Machine
(15)

Sandwich Panel Roll Forming Machine
(7)

Roof Sheet Crimping Machine
(11)

Corrugated Roll Forming Machine
(17)

Stud And Track Roll Forming Machine
(53)

Best Products

IBR Wall And Roof Sheet Double Layer Roll Forming Machine Mongolia Style

Aluminum Roofing Sheet Roll Forming Machine

Three Layer Roofing Sheet Roll Forming Machine

Customer Reviews

Machine easy to use. The boss is very nice.

—— Mr.Angolon From Europe

This is a good manufacturer, a good English communicater, and I like your machines. It is good quality, and pretty!

—— Mr.Mark From Africa

Nice supplier! I like your swift delivery and quick production cycle, will keep in touch with you guys.

—— Mr.Jack From America

I'm Online Chat Now

Roof corrugated panel rolling machine, double-layer roof tile rolling machine

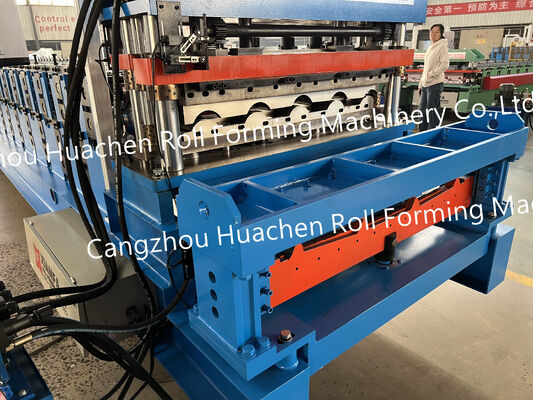

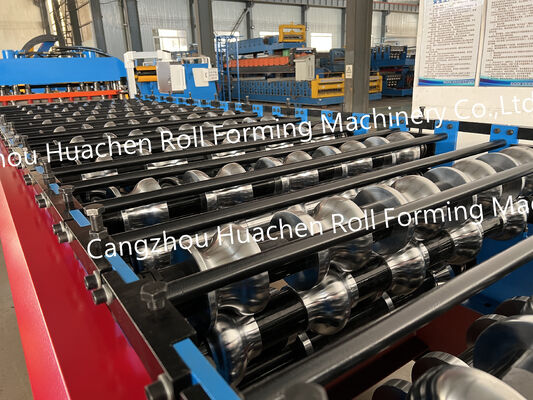

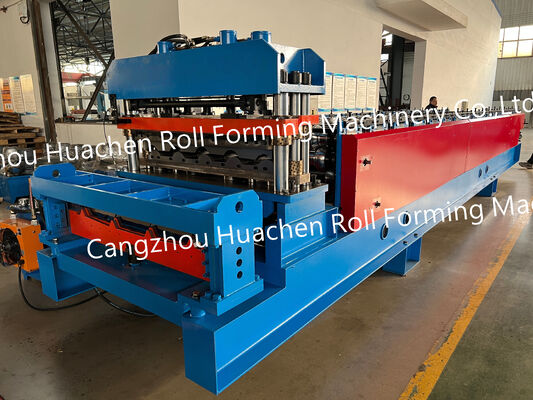

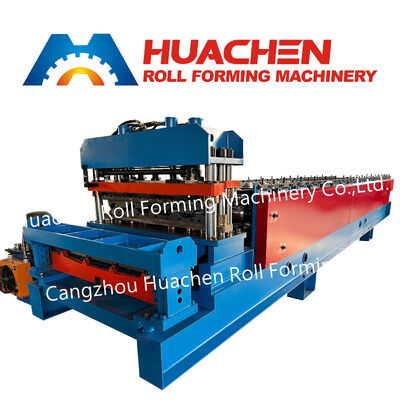

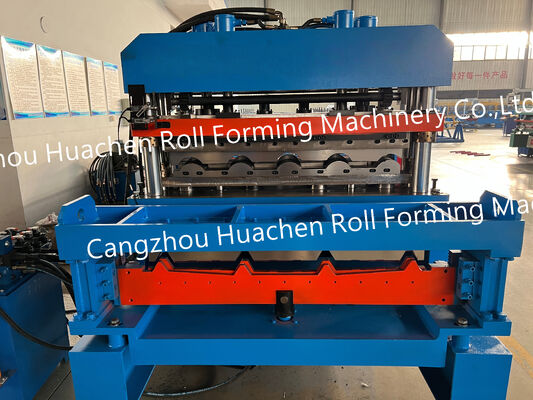

Large Image : Roof corrugated panel rolling machine, double-layer roof tile rolling machine

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	Applicable to GI/PPGI sheets

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	40GP Container
Delivery Time:	30days
Payment Terms:	L/C,T/T
Supply Ability:	60 Sets Per Month

Contact Now

Roof corrugated panel rolling machine, double-layer roof tile rolling machine

Description

Panel Thickness:	0.3-0.6mm	Motor Power:	4+4KW
Machine Frame:	350 H Beam	Cutting Method:	Hydraulic Cutting
Decoiler Type:	Hydraulic/manual Decoiler	Roller Material:	45# Steel
Machine Type:	Roll Forming Machine	Production Capacity:	15-20m/min

Main Technical Parameters

Roller Stations	Upper Layer: 12Stations Down Layer: 15Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	15-20m/min
Total Power	4+4KW
Voltage	380V 50Hz3Phases

A double layer roll forming machine is an advanced and highly efficient industrial equipment designed for the metal manufacturing and construction industries. Unlike traditional single-layer machines, this specialized system integrates two independent sets of roll forming dies vertically into a single, compact machine frame. This unique double-deck structure enables a single machine to produce two entirely different metal sheet profiles—such as classic sinusoidal corrugated sheets on one level and trapezoidal IBR panels or glazed roof tiles on the other.
