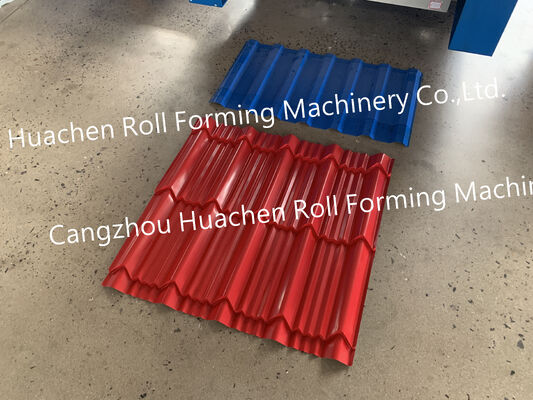

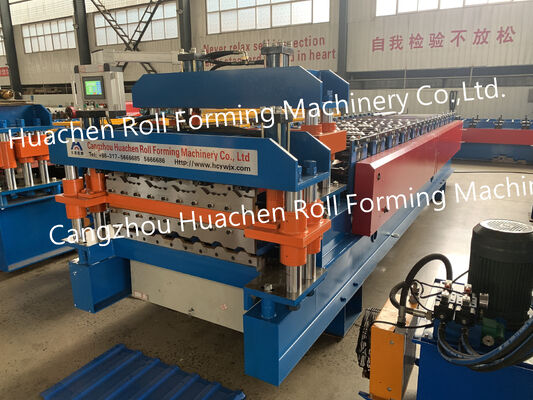

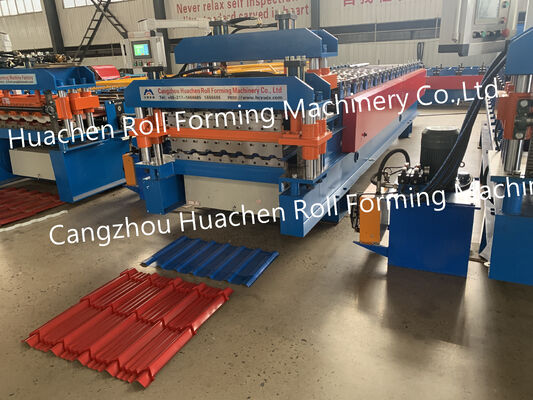

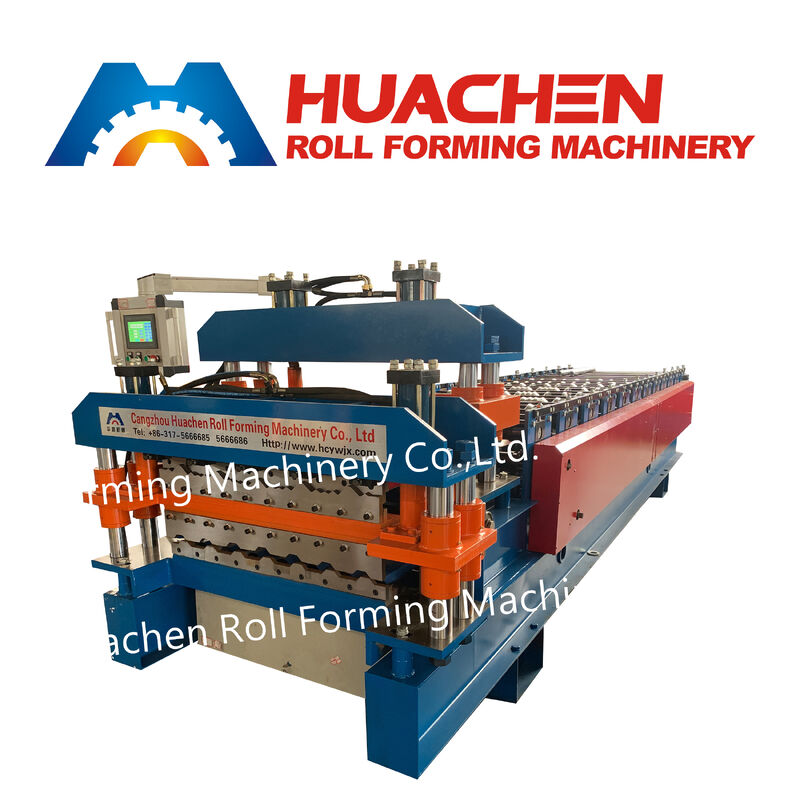

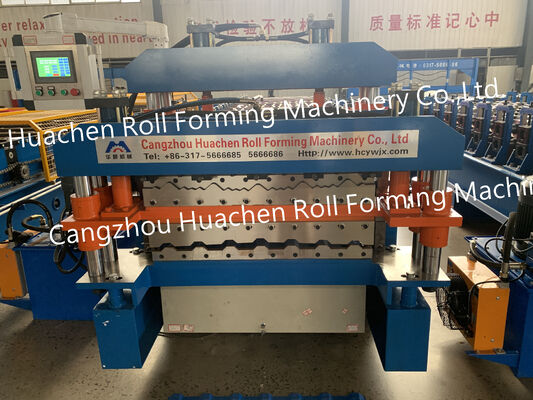

Roof top plate rolling forming machine / Roofing tile forming machine

Large Image : Roof top plate rolling forming machine / Roofing tile forming machine

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	29-17-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	40GP Container
Delivery Time:	30days
Payment Terms:	L/C,T/T
Supply Ability:	60 Sets Per Month

Contact Now

Roof top plate rolling forming machine / Roofing tile forming machine

Description

Panel Thickness:	0.3-0.6mm	Motor Power:	4+4KW
Machine Frame:	350 H Beam	Cutting Method:	Hydraulic Cutting
Decoiler Type:	Hydraulic/manual Decoiler	Roller Material:	45# Steel
Machine Type:	Roll Forming Machine	Production Capacity:	15-20m/min

Main Technical Parameters

Roller Stations	Upper Layer: 10Stations Down Layer: 12Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	15-20m/min
Total Power	4+4KW
Voltage	380V 50Hz3Phases

Product Overview

A roll forming machine (or cold roll forming machine) is a specialized, automated manufacturing system designed to continuously bend flat metal coils into specific, uniform cross-sectional profiles. Unlike press braking or stamping, roll forming processes the material incrementally through a series of sequential roller stations, making it the premier choice for high-volume, high-precision metal production.
