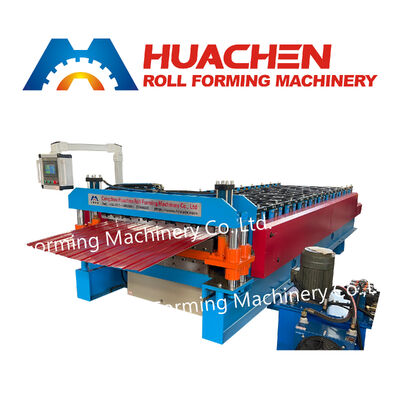

High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine

Large Image : High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	6-24-1220

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	40GP Container
Delivery Time:	30days
Payment Terms:	L/C,T/T
Supply Ability:	60 Sets Per Month

Contact Now

High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine

Description

Panel Thickness:	0.3-0.6mm	Motor Power:	4+4KW
Machine Frame:	350 H Beam	Cutting Method:	Hydraulic Cutting
Decoiler Type:	Hydraulic/manual Decoiler	Roller Material:	45# Steel
Machine Type:	Roll Forming Machine	Production Capacity:	15-20m/min

Main Technical Parameters

Roller Stations	Upper Layer: 11Stations Down Layer: 12Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	15-20m/min
Total Power	4+4KW
Voltage	380V 50Hz3Phases

Product Overview

High Efficiency & Speed: Capable of producing panels at a continuous speed of 15 to 20 meters per minute (with high-speed models reaching up to 30-40 m/min), significantly shortening project delivery times.
Exceptional Precision: Integrated with high-resolution rotary encoders, the PLC system maintains a strict cutting length tolerance within +-1mm, ensuring perfect interlocking and seamless overlapping during on-site installation.
Great Profile Versatility: The machine can be customized to produce various popular profiles, including trapezoidal (IBR) panels, classic sinusoidal corrugated panels, tile-effect sheets, and concealed-fix (standing seam) profiles.
Space-Saving Double-Layer Option: For factories with limited floor space, the machine can be engineered as a "Double-Layer" model, integrating two independent forming frameworks on a single base frame to produce two different profiles using only one motor and control system.
