Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine

Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine
Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine

Large Image :  Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: 12-235
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 30days
Payment Terms: T/T,L/C
Supply Ability: 60 Sets Per Month

Fully automatic wall panel roof panel sheet forming machine, glazed thin plate forming machine

Description
Panel Thickness: 0.3-0.6mm Motor Power: 4+4KW
Machine Frame: 350 H Beam Cutting Method: Hydraulic Cutting
Decoiler Type: Hydraulic/manual Decoiler Roller Material: 45# Steel
Machine Type: Roll Forming Machine Production Capacity: 15-20m/min

Product Overview

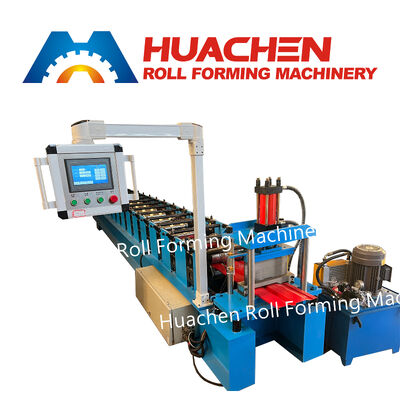

The HC Wall Panel Roll Forming Machine is an industrial-grade, fully automatic manufacturing solution engineered for high-precision production of wall and roofing sheets. Built with a heavy-duty 350 H-Beam structural frame and premium 45# quenched steel rollers, this equipment ensures continuous operational stability, minimal maintenance, and long service life.

Certified with international CE standards, our roll forming machinery delivers high-speed forming (15–20 m/min) for panel thicknesses ranging from 0.3mm to 0.6mm, making it an ideal asset for modern prefabricated building component manufacturing.

Technical Specifications

Parameter Specification
Model Number HC 12-235
Certification CE Certified
Forming Speed 15 - 20 m/min
Roller Stations 12 Stations
Roller & Shaft Material High-grade 45# Steel (Quenching & Hard Chrome Plated)
Shaft Diameter Φ70 mm
Cutting Blade Material Cr12 Mold Steel with Heat Treatment
Cutting Method Precision Hydraulic Cutting
Suitable Material Thickness 0.3mm – 0.6mm
Main Frame Structure 350 H-Beam Heavy Steel Frame
Drive System Heavy-Duty Chain Drive
Total Motor Power 8 KW (4KW Main + 4KW Hydraulic Pump)
Power Supply Voltage 380V / 50Hz / 3-Phase (Customizable)
Decoiler Type Manual / Hydraulic Decoiler Optional

Key Advantages & Engineering Highlights

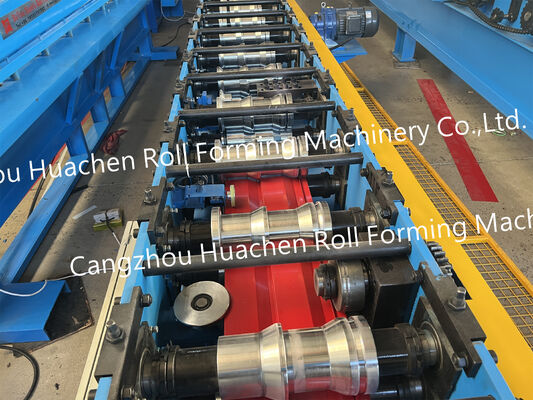

  • Enhanced Durability & Precision: Rollers crafted from 45# steel undergo strict quenching processes and hard chrome plating to minimize surface wear and protect sheet coatings from scratch damage.

  • Structural Stability: Built on a 350 H-beam welded base, eliminating operational vibrations to maintain precision tolerance during long manufacturing runs.

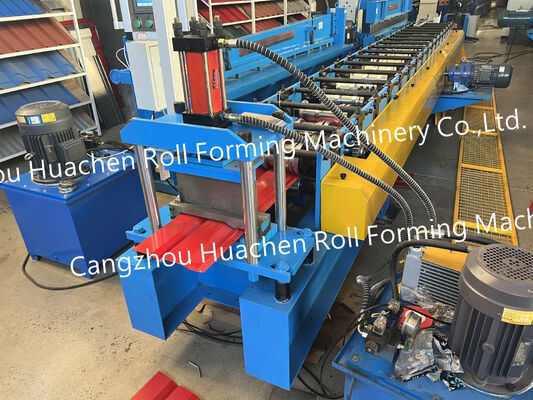

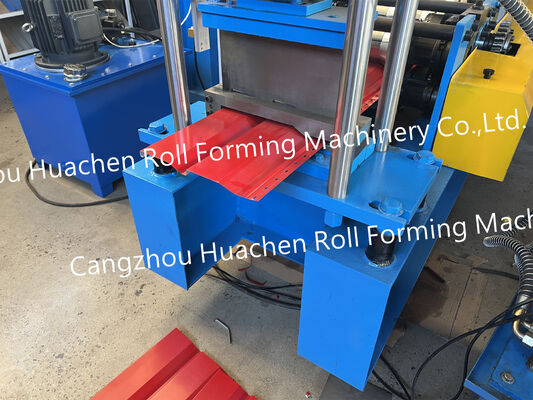

  • Clean & Automatic Cutting: Premium Cr12 hydraulic cutting mechanism ensures burr-free cuts without deforming panel profiles.

  • Customizable & Flexible: Adaptable profile dimensions, voltage setups, and decoiler options to match your factory layout and production standards.

Main Applications

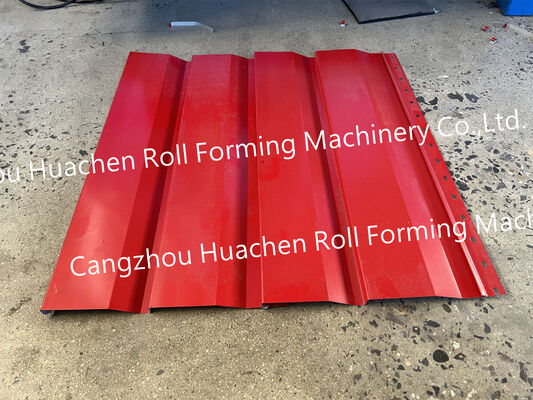

Our automated wall roll forming machinery produces high-strength exterior wall cladding, interior partition panels, and decorative roof sheets widely utilized in:

  • Prefabricated steel structure buildings & warehouses

  • Commercial industrial plants & agricultural facilities

  • Modular housing, cold storage units, and residential wall panels

Quality Assurance & After-Sales Service

  • Factory Acceptance Testing (FAT): Every machine undergoes continuous run testing with actual materials prior to shipment.

  • Global Technical Support: We provide comprehensive operation manuals, foundation drawings, remote online installation guidance, and lifetime spare parts support.

  • International Delivery: Secure export packaging shipped in standard 40GP containers to safeguard your investment.

Frequently Asked Questions (FAQ)

Q1: Can the machine profile be customized based on our technical drawings?

A: Yes. We customize roller stations, cutting dies, and effective width configurations based on customer-provided profile drawings or original sample sheets.

Q2: What is the lead time and monthly supply capacity?

A: Our standard lead time is 30 days upon order confirmation. We maintain a monthly production capacity of 60 sets to ensure timely global dispatch.

Q3: How do you handle installation and operator training?

A: We provide detailed installation videos, wiring diagrams, and user manuals. On-site engineering support or live video commissioning assistance is available upon request.
