Roof Use Corrugated Steel Roof Tile Making Machine

Roof Use Corrugated Steel Roof Tile Making Machine
Roof Use Corrugated Steel Roof Tile Making Machine Roof Use Corrugated Steel Roof Tile Making Machine Roof Use Corrugated Steel Roof Tile Making Machine Roof Use Corrugated Steel Roof Tile Making Machine Roof Use Corrugated Steel Roof Tile Making Machine

Large Image :  Roof Use Corrugated Steel Roof Tile Making Machine

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: Applicable to GI/PPGI sheets
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 30days
Payment Terms: L/C,T/T
Supply Ability: 60 Sets Per Month

Roof Use Corrugated Steel Roof Tile Making Machine

Description
Panel Thickness: 0.3-0.6mm Motor Power: 4+4KW
Machine Frame: 350 H Beam Cutting Method: Hydraulic Cutting
Decoiler Type: Hydraulic/manual Decoiler Roller Material: 45# Steel
Machine Type: Roll Forming Machine Production Capacity: 15-20m/min

Product Overview

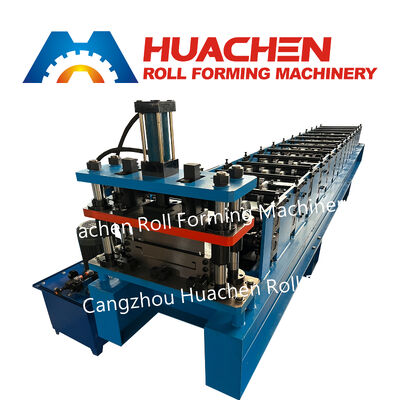

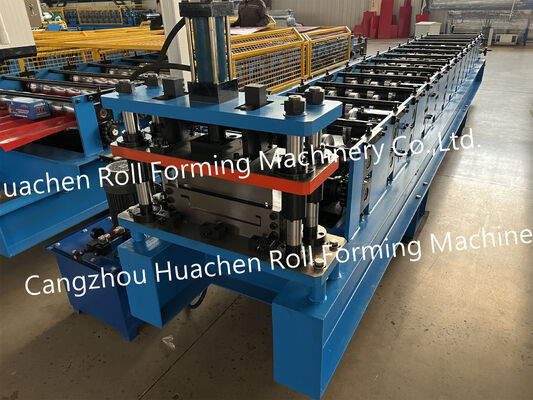

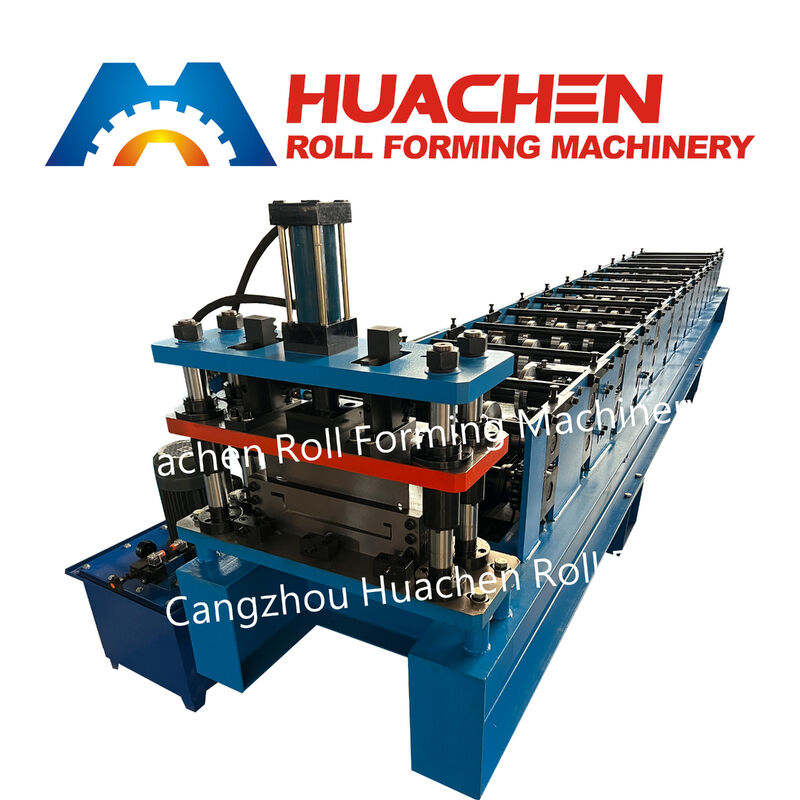

The HC Industrial-Grade Corrugated Steel Roof Tile Making Machine is an advanced, high-efficiency roll forming system engineered specifically for the continuous production of high-strength metal roofing sheets and corrugated tiles. Built on a heavy-duty 350 H-beam steel base and equipped with quenched 45# steel rollers, this equipment delivers exceptional dimensional accuracy, structural rigidity, and a reliable production speed of 15 to 20 meters per minute. Certified with international CE standards, it is the premier manufacturing solution for global roofing contractors, pre-fabrication housing builders, and metal building material suppliers seeking long-term operational durability and high output efficiency.

Key Technical Parameters

  • Roller Stations: 12 - 18 Stations (Customized per profile)

  • Roller & Shaft Material: High-Grade 45# Steel (Quenched and Hard-Chrome Plated)

  • Diameter of Shaft: Φ70 mm Solid Steel

  • Cutter Material: CR12 Mould Steel with Heat Treatment

  • Drive Type: Precision Chain Drive

  • Production Speed: 15 - 20 m/min

  • Total Motor Power: 4 kW + 4 kW (Hydraulic Station + Main Motor)

  • Working Voltage: 380V, 50Hz, 3-Phase (Customizable)

  • Machine Frame Structure: Heavy-Duty 350 H-Beam Steel Base

  • Cutting Method: Post-Cutting Hydraulic Shear (Stop-to-Cut)

Product Advantages & EEAT Highlights

  • Rigid 350 H-Beam Foundation: Welded from heavy structural steel to effectively absorb high-speed mechanical vibrations, ensuring long-term alignment, stability, and straightness of formed roofing sheets.

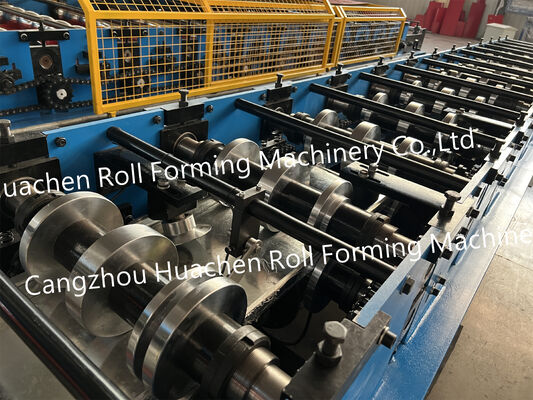

  • Wear-Resistant Hard-Chrome Rollers: Precision-machined 45# steel rollers plated with hard chrome protect prepainted steel coils (PPGI/GI) from surface scratches while dramatically increasing component service life.

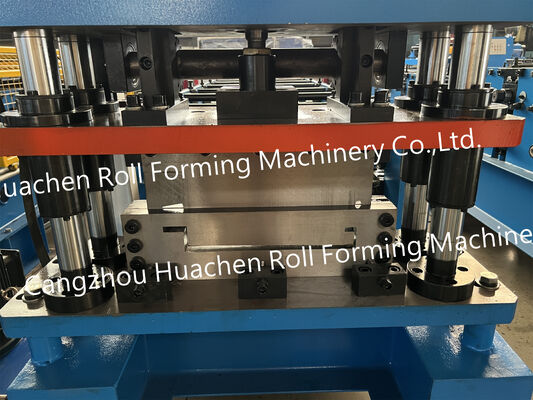

  • Precision Hydraulic Cutting: Utilizes high-hardness CR12 mould steel blades to provide clean, burr-free cuts, backed by automated length tracking to eliminate raw material waste.

  • Modular Container Shipping Design: The compact layout allows the complete machine line to be safely anchored and packed into a standard 40GP ocean shipping container for cost-effective global delivery.

Applications

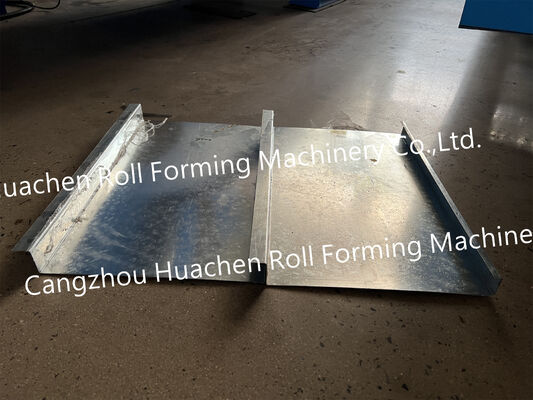

This automated corrugated roof tile roll forming equipment is designed to process cold-rolled steel, galvanized steel (GI), and prepainted galvanized iron (PPGI) coils. Finished roofing profiles are widely utilized in:

  • Industrial workshops, warehouses, and large-span steel structure buildings

  • Commercial complexes, agricultural facilities, and modern residential roofing

  • Prefabricated modular houses and temporary site shelters

Quality Assurance & Support Services

  • Quality Certification: Fully compliant with international CE standards. Every machine undergoes a rigorous 72-hour continuous trial run with raw materials before factory dispatch.

  • Comprehensive Technical Documentation: Detailed user operation manuals, electrical wiring diagrams, and high-definition video installation guides are provided with each unit.

  • Warranty & Global Support: Backed by a 1-year warranty covering core mechanical parts, alongside lifetime remote technical assistance and fast-dispatch spare parts supply.

Frequently Asked Questions (FAQ)

Q1: What raw material specifications are compatible with this machine?

A: The machine processes Galvanized Steel (GI), Prepainted Galvanized Steel (PPGI), Galvalume (GL), and Aluminum sheets with a thickness range of 0.3 mm to 0.6 mm.

Q2: Can the electrical voltage and motor configurations be customized for our local power grid?

A: Yes. We offer full customization for local voltage standards (e.g., 220V, 415V, 440V, 50Hz/60Hz, 3-Phase) as well as optional brand upgrades for PLC controllers and motors.

Q3: What is the standard delivery lead time and how is the machine packaged?

A: The standard production lead time is 30 days upon receiving the advance deposit. The machine line is meticulously waterproofed, anti-rust treated, and securely anchored inside a standard 40GP container.
