Single Layer Aluminium Panel Roof Tile Roll Forming Step Tiles Machine

Main Technical Parameters

Product Overview

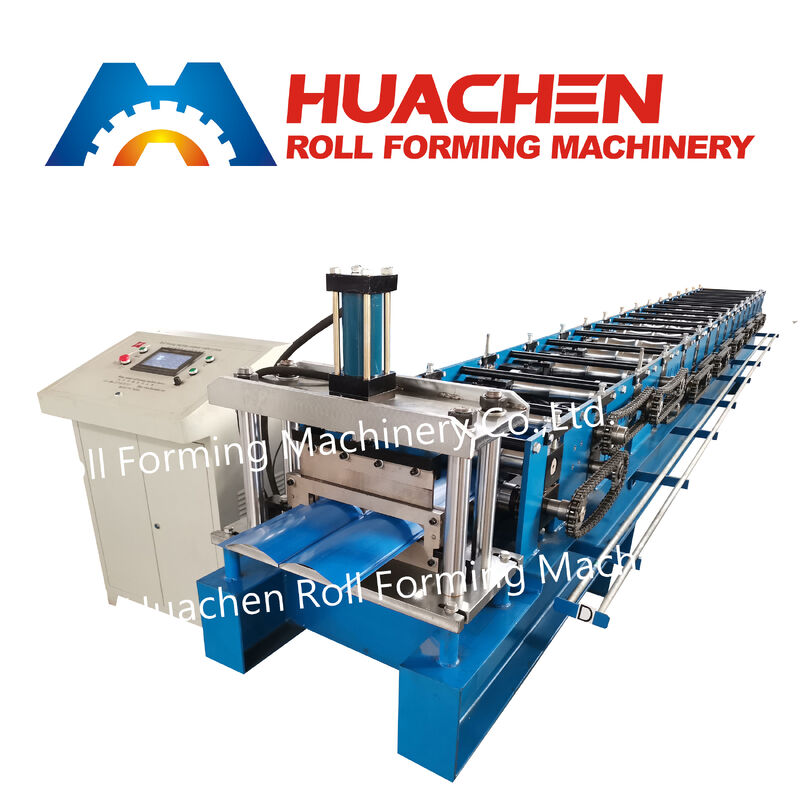

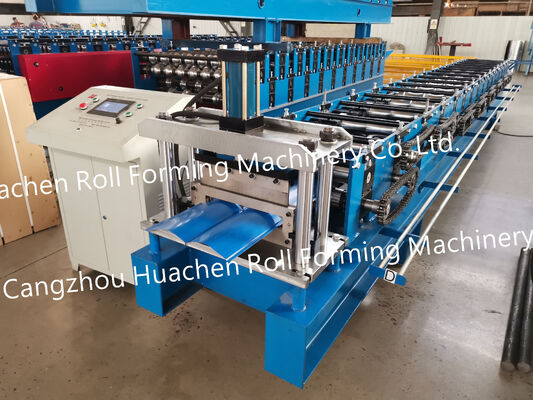

The Single Layer Aluminium Roof Tile Roll Forming Machine (Model 19-416) by HC is an industrial-grade manufacturing solution engineered for high-precision, continuous production of aluminium and metal roof step tiles. Built with a heavy-duty 350 H Beam structural frame, 45# quenched steel rollers, and an integrated hydraulic cutting system, this machine delivers consistent forming accuracy at speeds up to 15–20 m/min. Certified with CE standards, it provides long-term reliability for commercial, residential, and industrial roofing material production.

Technical Specifications

Key Features

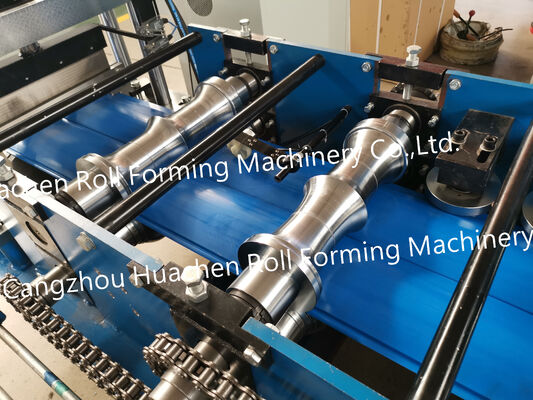

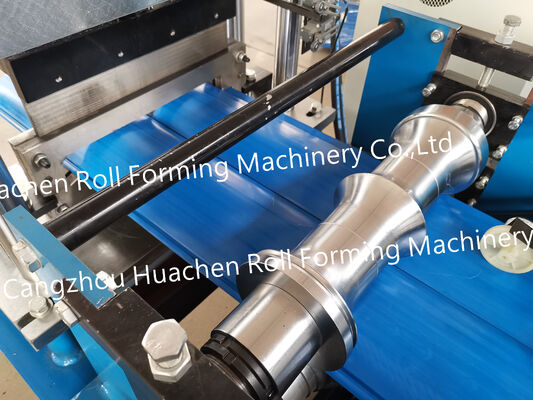

• Precision Engineering & Durability: Rollers are machined from premium 45# steel with quenching and hard chrome plating, ensuring smooth profile forming, minimal wear, and long equipment service life.

• Heavy-Duty Frame Design: Constructed with a rigid 350 H Beam structure to eliminate vibration during high-speed operation and maintain strict dimensional tolerances.

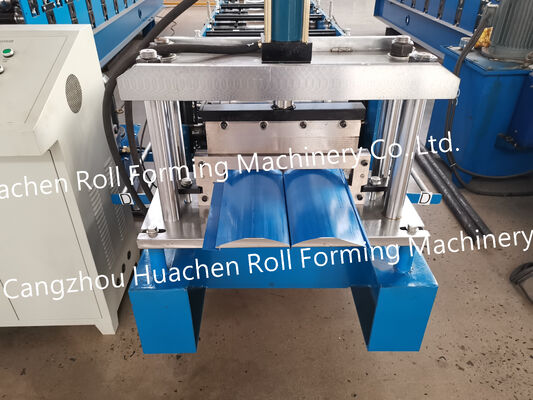

• Clean, Burr-Free Cutting: Premium Cr12 cutter blades driven by a powerful hydraulic system deliver smooth, precise cuts without deformation or burrs.

• High Output Efficiency: Reaches operating speeds of 15–20 m/min with stable chain-drive transmission, optimizing overall plant throughput.

• Flexible Customization & Quality Assurance: CE-compliant design supporting tailored voltage, width, and uncoiler configurations to match global facility requirements.

Applications

• Residential Buildings: Elegant step tiles for modern villas, residential roofing, and architectural roofs.

• Commercial & Industrial Structures: Durable roofing and cladding solutions for warehouses, factories, and commercial complexes.

• Prefabricated & Modular Homes: Standardized panel forming for light steel structures, agricultural sheds, and mobile housing projects.

Frequently Asked Questions (FAQ)

• Q1: What materials can this roll forming machine process?

  • A: This machine is optimized for 0.3–0.6 mm thick aluminium coils, galvanized steel, and pre-painted steel (PPGI/PPGL) coils.

• Q2: Does HC provide installation and operational support?

  • A: Yes, we offer comprehensive technical support including detailed operation manuals, video guidance, remote assistance, and on-site engineer commissioning upon request.

• Q3: What is the estimated lead time and packaging for shipment?

  • A: Standard production lead time is 30 days. The machine is securely packed and fixed in a standard 40GP container for ocean transport.
