Product Details:
|
| Panel Thickness: | 0.3-0.6mm | Motor Power: | 4+4KW |
|---|---|---|---|
| Machine Frame: | 350 H Beam | Cutting Method: | Hydraulic Cutting |
| Decoiler Type: | Hydraulic/manual Decoiler | Roller Material: | 45# Steel |
| Machine Type: | Roll Forming Machine | Production Capacity: | 15-20m/min |
| Technical Item | Specification |
| Model Number | 55135907 |
| Machine Type | Roll Forming Machine |
| Roller Stations | 1-2 Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ 70 mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Forming Speed | 15 – 20 m/min |
| Total Power | 4 + 4 KW |
| Voltage | 380V, 50Hz, 3-Phase (Customizable) |
| Machine Frame | Robust 350 H-Beam Frame |
| Cutting Method | Hydraulic Cutting |
| Decoiler Type | Hydraulic or Manual Decoiler Options |
| Panel Thickness | 0.3 – 0.6 mm |
| Certification | CE Certified |

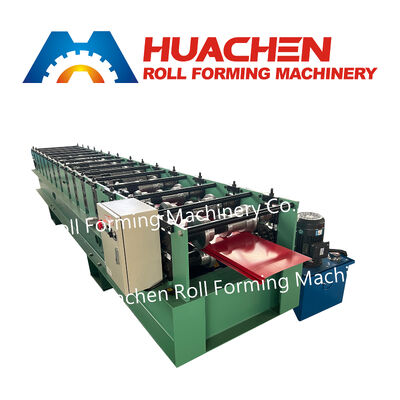

The HC Wall Panel Roll Forming Machine (55135907) is a highly efficient industrial solution engineered for manufacturing high-end metal profile profiled roof panels and steel profiled sheets for decoration. Designed for modern building material manufacturers and large-scale construction facilities, this robust equipment delivers consistent precision and speed. Built on a rigid 350 H-beam frame with solid 45# steel rollers and driven by dual 4 kW motors, it guarantees stable, high-speed output at 15–20 m/min while maintaining strict length tolerances across 0.3–0.6 mm steel coils.

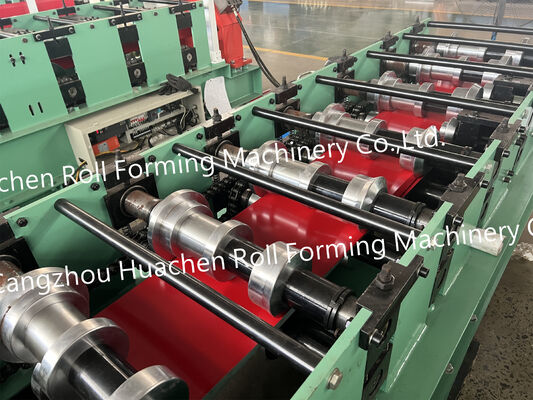

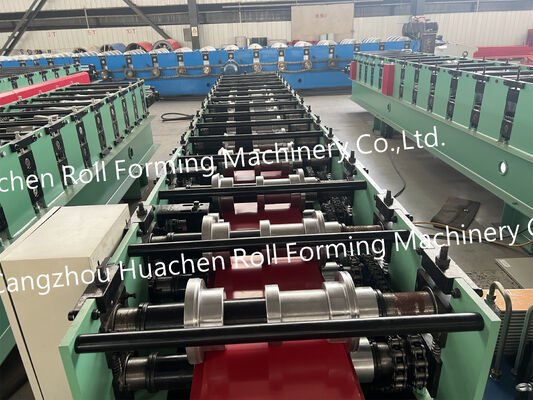

High-Precision 45# Quenched Rollers: All forming rolls are precision-machined from solid 45# forged steel with quenching and hard chrome plating, ensuring durability, precision, and zero scratching on pre-painted (PPGI) surfaces.

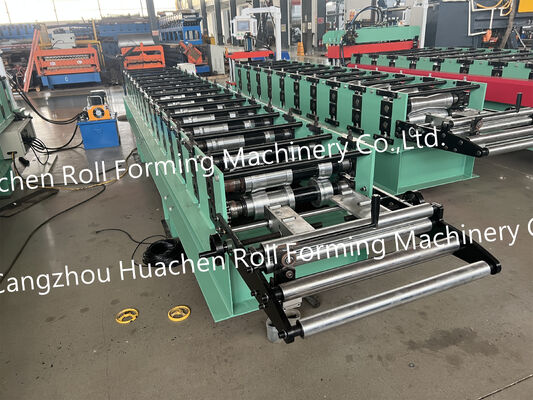

Rigid 350 H-Beam Foundation: Constructed with a heavy-duty 350 H-beam welded base and solid Φ70 mm main shafts to completely absorb vibration during continuous high-speed operations.
Clean Hydraulic Cutting: Equipped with premium Cr12 alloy steel cutting blades, delivering burr-free, clean cuts without deforming the wall or roof panel profiles.
High Production Efficiency: Operates at a stable forming speed of 15–20 m/min powered by a reliable 4 + 4 kW dual-motor drive system.
CE-Certified International Standards: Manufactured strictly under European CE compliance guidelines, with secure 40GP container packaging for safe international transit.

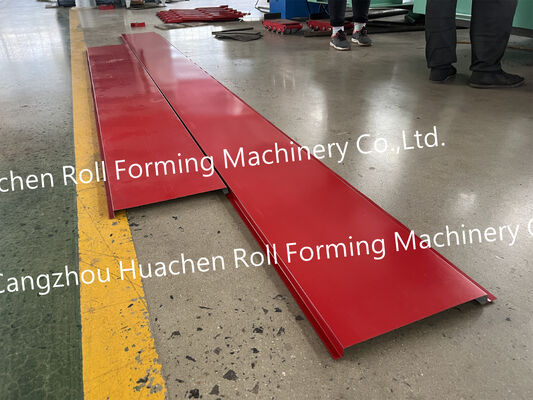

Architectural Wall & Roof Cladding: Ideal for producing high-end metal profile profiled roof panels and steel profiled sheets for decoration.
Residential & Commercial Buildings: Widely used for exterior and interior wall panels, roofing panels, and partition walls in commercial workshops and residential structures.
Prefabricated Structures: Cost-effective roofing and siding components for modular prefabricated houses, warehouses, factories, and agricultural buildings.
Q1: What materials and thicknesses can this machine process?A: The machine is designed for GI and PPGI steel sheets with a thickness range of 0.3 mm to 0.6 mm.
Q2: Do you support custom profile drawings and local voltage requirements?A: Yes. We support OEM customization based on your exact profile CAD drawings and local industrial voltage standards (e.g., 380V, 50Hz, 3-Phase).
Q3: What is the production lead time, warranty, and after-sales service?A: Standard production lead time is 30 days. We provide comprehensive technical support including installation guidance, operational training, detailed user manuals, maintenance schedules, and readily available spare parts.
Q4: How is the machine packaged for international shipping?A: The entire production line is securely packed into a single 40GP container, coated with anti-rust protection and firmly secured to ensure safe arrival.
