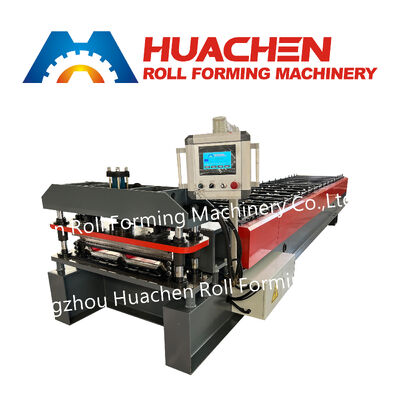

45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials

45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials
45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials 45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials 45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials 45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials 45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials

Large Image :  45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: 36-760
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 40GP Container
Delivery Time: 30days
Payment Terms: L/C,T/T
Supply Ability: 60 Sets Per Month

45 steel shaft wall plate forming machine, suitable for GI/PPGI sheet materials

Description
Panel Thickness: 0.3-0.6mm Motor Power: 4+4KW
Machine Frame: 350 H Beam Cutting Method: Hydraulic Cutting
Decoiler Type: Hydraulic/manDecoileual R Roller Material: 45# Steel
Machine Type: Roll Forming Machine Production Capacity: 15-20m/min

Main Technical Parameters

Roller Stations

 18Stations

Roller & Shaft Material

45# Steel Quenching and Plating

 Shaft Diameter

Φ70mm

Cutter Material

CR12

Type of drive

Chain Drive

Speed data

15-20m/min

Total Power data

4+4KW

Voltage

380V 50Hz3Phases

Inside the Forming Process

The production process is based on gradually shaping metal material rather than forming the entire profile in one operation.

  • Initial Feeding: Metal coil enters the machine and moves toward the forming section.

  • Progressive Profile Shaping: The material passes through 18 roller stations to achieve the configured roofing shape.

  • Length Cutting: The CR12 cutter is used to separate the formed sheet according to the required cutting length.

  • Product Collection: Completed roofing sheets are collected for further handling and use.

Mechanical Configuration

18-Station Forming Structure

The machine uses 18 roller stations to complete the progressive forming process. The roller arrangement is configured according to the intended roofing profile.

45# Steel Components

Both rollers and shafts are specified as 45# steel, with quenching and plating treatment.

Φ70mm Shaft Design

The forming assembly uses shafts with a diameter of Φ70mm.

CR12 Cutting Component

The cutting section is equipped with a CR12 cutter for separating the finished metal sheets.

Chain Transmission

A chain drive system provides the transmission method for the machine's forming operation.

Production Applications

This equipment can be configured for different metal roofing sheet profiles according to the roller design. Potential application markets include:

  • Metal roofing sheet manufacturing

  • Industrial building construction

  • Factory and workshop roofing

  • Warehouse construction

  • Commercial and agricultural buildings

The actual finished profile depends on the machine's roller design. Customers should provide their roofing sheet drawings or sample profiles when confirming the machine configuration.

Questions Before Purchasing

Can the machine produce different roofing profiles?

The finished profile depends on the roller design and machine configuration. The required profile should be confirmed before production.

What is the forming speed?

The specified production speed is 15–20m/min.

What is the material used for the rollers and shafts?

The specified material is 45# steel with quenching and plating.

What is the cutting component material?

The cutter material is CR12.

What type of transmission is used?

The machine adopts chain drive transmission.

What power supply is required?

The machine specification is 380V, 50Hz, 3 phases, with total power of 4+4KW.
