Product Details:
|
| Panel Thickness: | 0.3-0.6mm | Motor Power Data: | 4+4KW |
|---|---|---|---|
| Machine Frame: | 350 H Beam | Cutting Method Type: | Hydraulic Cutting |
| Machine Type: | Roll Forming Machine | Roller Material: | 45# Steel |
| Decoiler Type: | Hydraulic/manDecoileual R | Production Capacity: | 15-20m/min |
Main Technical Parameters
|
Roller Stations |
18Stations |
|
Roller & Shaft Material |
45# Steel Quenching and Plating |
|
Shaft Diameter |
Φ70mm |
|
Cutter Material type |
CR12 |
|
Drive Shape |
Chain Drive |
|
Speed data |
15-20m/min |
|
Total Power |
4+4KW |
|
Voltage |
380V 50Hz3Phases |

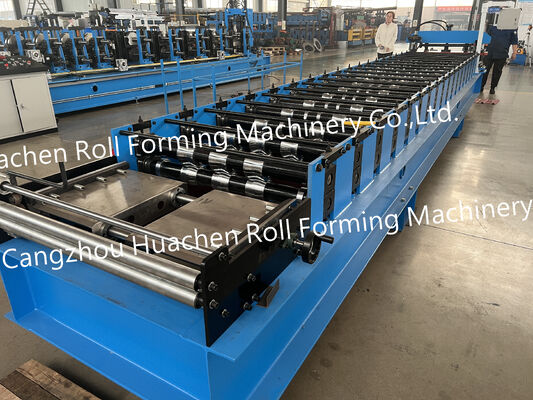

Forming Stations – 18 Units
The forming section consists of 18 roller stations. Metal material moves through these stations in sequence, gradually developing the required roofing profile.

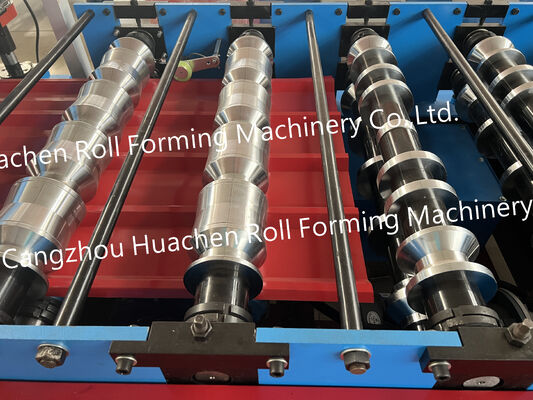

Rollers and Shafts – 45# Steel
The rollers and shafts are made from 45# steel and receive quenching and plating treatment. The specified shaft diameter is Φ70mm.

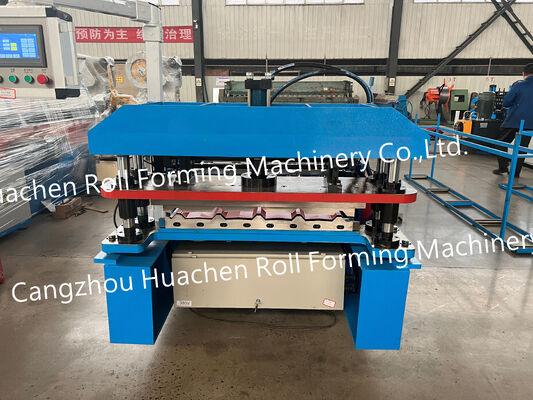

Cutting Unit – CR12
The cutting component uses CR12 material to separate the formed roofing sheets according to the production length setting.
Transmission – Chain Drive
The machine adopts chain drive transmission as its mechanical power transfer system.
Electrical System – 4+4KW
The total power configuration is 4+4KW. The specified electrical supply is 380V, 50Hz, 3 phases.
The machine follows a continuous forming sequence:
Metal coil is introduced into the feeding section.
The material travels through the 18 roller stations.
Each roller stage contributes to the progressive shaping process.
The cutting unit separates the formed sheet at the required length.
Finished sheets are collected for subsequent handling.
The final roofing profile is determined by the roller design selected for the machine.
The machine can be used in metal roofing production for various construction projects, depending on the configured profile:
Factory and workshop roofing
Industrial buildings
Commercial property construction
Warehouse roofing systems
Agricultural buildings
For accurate machine selection, buyers should provide the required roofing profile drawing, material thickness, and finished sheet dimensions.
Is this an 18-station machine?
Yes. It is equipped with 18 roller stations.
What is the shaft diameter?
The shaft diameter is Φ70mm.
What is the specified roller and shaft treatment?
The material is 45# steel with quenching and plating.
Does the machine use a chain drive?
Yes, chain drive is the specified transmission type.
What is the production speed?
The specified speed is 15–20m/min.
What is the electrical configuration?
Total power is 4+4KW, with 380V, 50Hz, 3-phase voltage.

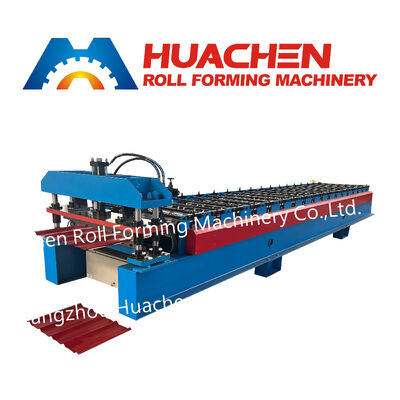

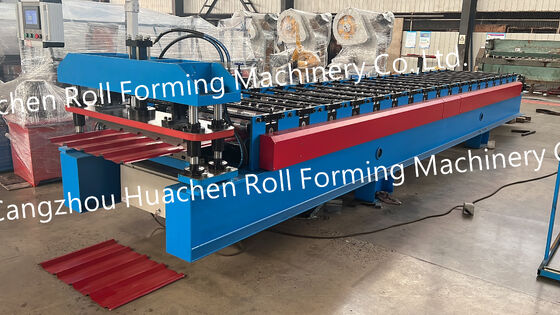

18 Roller Station Roofing Sheet Roll Forming Machine
18 station roofing sheet roll forming machine featuring 45# steel rollers and shafts, Φ70mm shaft diameter, CR12 cutter, chain drive, and 15–20m/min production speed.
