Product Details:
|
| Panel Thickness: | 0.3-0.6mm | Motor Power: | 4+4KW |
|---|---|---|---|
| Machine Frame: | 350 H Beam | Cutting Method: | Hydraulic Cutting |
| Decoiler Type: | Hydraulic/manDecoileual R | Roller Material: | 45# Steel |
| Machine Type: | Roll Forming Machine | Production Capacity: | 15-20m/min |
Main Technical Parameters
|
Roller Stations |
15Stations |
|
Roller & Shaft Material |
45# Steel Quenching and Plating |
|
Diameter of Shaft |
Φ70mm |
|
Cutter Material |
CR12 |
|
Drive Type |
Chain Drive |
|
Speed |
15-20m/min |
|
Total Power |
4+4KW |
|
Voltage |
380V 50Hz3Phases |

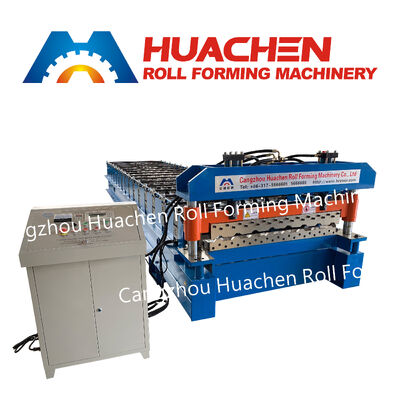

The machine transforms flat metal material into a shaped roofing panel through a sequence of mechanical operations.
Material Feeding
The metal strip is introduced into the machine and positioned for the forming process.
Roller Shaping
The material travels through 15 roller stations. Each station contributes to the gradual development of the selected profile.
Hydraulic or Mechanical Production Setup
The cutting method should be confirmed according to the actual machine configuration. The supplied specification identifies CR12 as the cutter material but does not specify the cutting drive method.
Finished Panel Output
After cutting, the formed sheets are collected for subsequent handling and installation.
The machine is equipped with 15 roller stations, providing multiple forming stages for processing metal sheets into the required profile.
The roller and shaft material is 45# steel, with quenching and plating treatment specified for these components.
The forming assembly uses a shaft diameter of Φ70mm.
The cutter is specified as CR12 material and is used in the sheet separation process.
The transmission system adopts chain drive to transfer power during machine operation.
The total power is 4+4KW, and the specified voltage is 380V, 50Hz, 3 phases.
According to the selected roller design, this machine can be configured for producing metal roofing profiles used in:
Residential roofing projects
Industrial factories and workshops
Commercial buildings
Warehouse construction
Agricultural buildings
The actual finished panel shape depends on the selected roller profile. Buyers should provide drawings or samples to confirm the required configuration.
Before purchasing, consider these important production details:
Confirm the desired roofing sheet profile.
Provide the raw material type and thickness.
Specify the required finished panel width.
Confirm the cutting length requirements.
Check compatibility with the factory's electrical supply.
Providing these details helps establish whether the machine configuration matches the intended production requirements.
How many roller stations does this model have?
It is equipped with 15 roller stations.
What is the roller and shaft material?
Both use 45# steel with quenching and plating.
What is the shaft diameter?
The specified shaft diameter is Φ70mm.
What is the cutter material?
The cutter material is CR12.
Which transmission system is used?
The machine adopts chain drive transmission.
What is the operating speed?
The specified speed is 15–20m/min.
What power supply is required?
The machine specification is 4+4KW total power and 380V, 50Hz, 3 phases.
