Product Details:
|

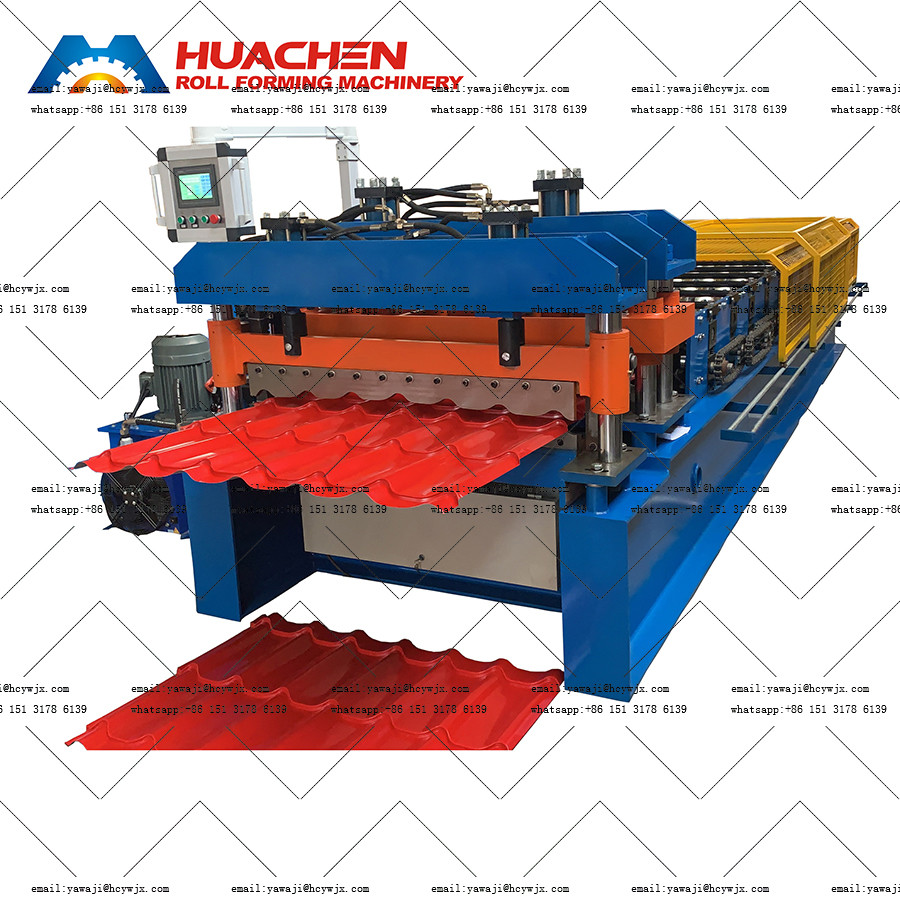

| Material Type: | PPGI/GI | Material Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Material Width: | 1250mm | Roller Stations: | 12 Stations |
| Roller & Shaft Material: | 45# Steel Quenching And Plating | Diameter Of Shaft: | Φ70mm |
| Cutter Material: | CR12 | Drive Type: | Chain Drive |
| Speed: | 4m/min | Total Power: | 5.5+5.5KW |
| Voltage: | 380v 50Hz 3phases | ||
| Highlight: | GI Glazed Sheet Roll Forming Machine,PPGI Glazed Sheet Roll Forming Machine |
||
Product Description
With humanized design and advanced control system, the operation interface is simple and intuitive, and operators can master the operation skills after simple training. The equipment has a high degree of automation, and many production parameters can be quickly set and adjusted through the control system, reducing the complexity and difficulty of manual operation.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1250mm | |
| Roller Stations | 12Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 4m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
In the production process of glazed tiles, metal sheets are usually supplied in the form of coils. The primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.
Hydraulic Pump Station
When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Feeding Table & Pre-Cutter
During the sheet feeding process, the feed table can play a certain buffering role. When the sheet is transferred from the external loading device to the feed table, the conveying device of the feed table can receive the sheet at a relatively slow speed, reducing the impact force of the sheet during the transfer process and avoiding damage to the feed port or internal components of the tile press.
Shaft & Roller
The shaft is the supporting base of the roller, which keeps the roller in the correct position and posture to ensure that it can stably press and shape the plate. Multiple groups of rollers are installed on the frame of the tile press through the shaft. The accuracy and strength of the shaft directly affect the concentricity and stability of the roller, and thus affect the forming quality of the glazed tile.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
By rationally planning the cutting path and method, the cutter can minimize waste generation while ensuring the quality and size requirements of glazed tiles, maximize the utilization of raw materials, reduce production costs, and improve the economic benefits of the enterprise.
