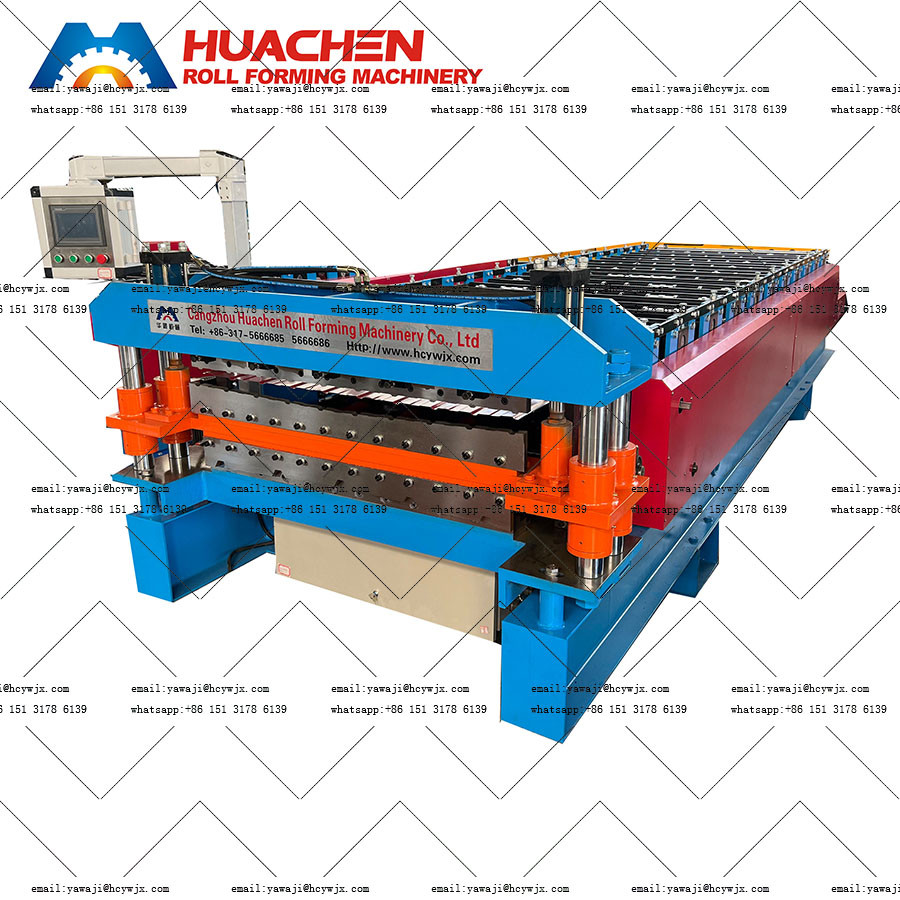

Effective Fast Speed Double Deck Roll Forming Machine With 45 Steel Rollers

Effective Fast Speed Double Deck Roll Forming Machine With 45 Steel Rollers
Effective Fast Speed Double Deck Roll Forming Machine With 45 Steel Rollers

Large Image :  Effective Fast Speed Double Deck Roll Forming Machine With 45 Steel Rollers

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC19-24-1220
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Main machine is nude,The workbench is packed with plastic stretch film
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T
Supply Ability: 20set per month

Effective Fast Speed Double Deck Roll Forming Machine With 45 Steel Rollers

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1220mm Roller Stations: 12Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 15m/min Total Power: 5.5+5.5KW
Voltage: 380v 50Hz 3phases
Highlight:

effective Double Deck Roll Forming Machine

,

Fast Speed double layer forming machine

,

Steel Rollers double layer forming machine

Product Description

During the sheet forming process, the length of the trapezoidal tile needs to be precisely controlled. Usually, the double-layer trapezoidal tile press adopts a length measuring device to achieve this function. Common length measuring devices include encoders, roller counters, etc. The encoder is connected to the transmission system and can accurately measure the conveying length of the sheet. When the sheet is conveyed to the set length, the encoder will send a signal to the control system. The roller counter measures the length of the sheet by contacting the surface of the sheet and rotating as the sheet moves, and by counting the number of revolutions of the roller.



Main Technical Parameters

Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1220mm
Roller Stations 12Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases


Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting



Component & Technical Parameters

Double Deck Roll Forming Machine Manufacturers 0


This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station
Double Deck Roll Forming Machine Manufacturers 1

The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade

Touch Screen Control Cabinet

Double Deck Roll Forming Machine Manufacturers 2

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi

Feeding Table & Pre-Cutter


Effective Fast Speed Double Deck Roll Forming Machine With 45 Steel Rollers 3

Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.



Shaft & Roller

Effective Fast Speed Double Deck Roll Forming Machine With 45 Steel Rollers 4



Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.



Pressing Section & Cutter


Effective Fast Speed Double Deck Roll Forming Machine With 45 Steel Rollers 5

The material of blade is CR12.

After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.



After receiving the length signal, the control system will trigger the shearing device to shear the double-layer trapezoidal tile after forming. The shearing device usually adopts hydraulic shears or mechanical shears. The hydraulic shears have the advantages of large shearing force, fast shearing speed and smooth cut, while the mechanical shears have the characteristics of simple structure and low maintenance cost. During the shearing process, the shearing tool will quickly cut the plate to obtain the finished double-layer trapezoidal tile of the required length. In order to improve the shearing efficiency and quality, some tile pressing machines also adopt automatic feeding and continuous shearing technology, which can continuously perform shearing operations without stopping the machine, greatly improving production efficiency.
