1220mm Material Width Double Deck Roll Forming Machinery For Steel Diameter Of Shaft Φ70mm

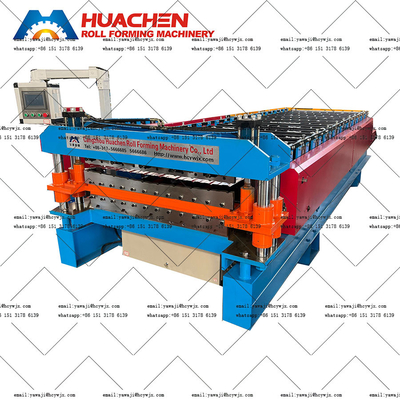

Large Image : 1220mm Material Width Double Deck Roll Forming Machinery For Steel Diameter Of Shaft Φ70mm

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC6-24-1220mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Main machine is nude，The workbench is packed with plastic stretch film
Delivery Time:	20-30 work days
Payment Terms:	L/C
Supply Ability:	20set per month

Contact Now

1220mm Material Width Double Deck Roll Forming Machinery For Steel Diameter Of Shaft Φ70mm

Description

Material Type:	PPGI/GI	Material Thickness:	0.3-0.6mm
Material Width:	1220mm	Roller Stations:	11/12 Stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	Φ70mm
Cutter Material:	CR12	Drive Type:	Chain Drive
Speed:	15m/min	Total Power:	5.5+5.5KW
Voltage:	380v 50Hz 3phases
Highlight:	Φ70mm Roll Forming Machinery , 1220mm Material Width Roll Forming Machinery , 1220mm Double Deck Roll Forming Machinery

Product Description

It can be applied to the production of various specifications of trapezoidal tiles, and can quickly adjust the production model according to market demand to meet the needs of different customers.
It can process a variety of raw materials such as color steel coils, galvanized steel, aluminum plates, etc. Enterprises can choose appropriate raw materials according to product positioning, cost budget and customer requirements.

Main Technical Parameters

Material	Type	PPGI/GI
	Thickness	0.3-0.6mm
	Width	1220mm
Roller Stations		11/12Stations
Roller & Shaft Material		45# Steel Quenching and Plating
Diameter of Shaft		Φ70mm
Cutter Material		CR12
Drive Type		Chain Drive
Speed		15m/min
Total Power		5.5+5.5KW
Voltage		380V 50Hz 3Phases

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi

Feeding Table & Pre-Cutter

Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Pressing Section & Cutter

The material of blade is CR12.

After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.

The equipment has a relatively simple structure and uses high-quality components, making it durable. It only requires regular inspection and maintenance of key parts to maintain good working conditions, reducing maintenance costs.
