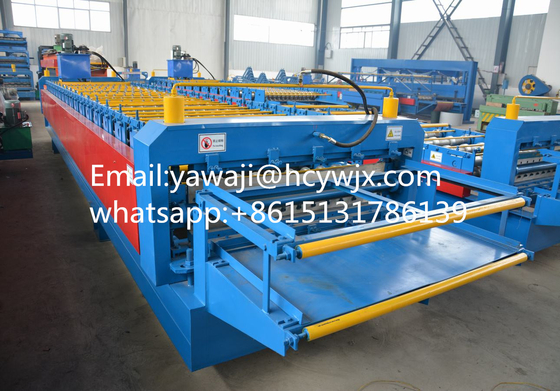

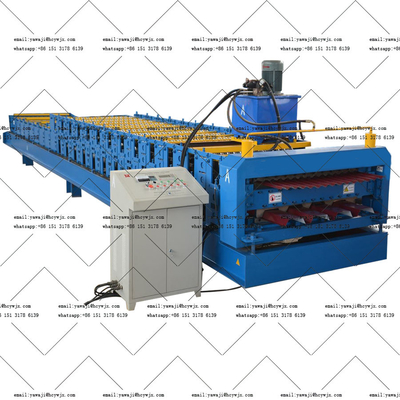

Product Description
Generally, it is suitable for metal sheets with a thickness of 0.3-0.8mm, such as color-coated steel sheets, galvanized sheets, etc. There may be some differences between different models of equipment, and the specific applicable thickness range needs to be determined according to the equipment manual.
Usually, the production speed is about 8-15 meters per minute, and the production speed is affected by many factors such as motor power, number and diameter of rollers, and plate thickness. Some high-end equipment may have higher production speeds through optimized design and advanced power systems.
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1250mm |
| Roller Stations |
12/22 Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15m/min |
| Total Power |
5.5+5.5KW |
| Voltage |
380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

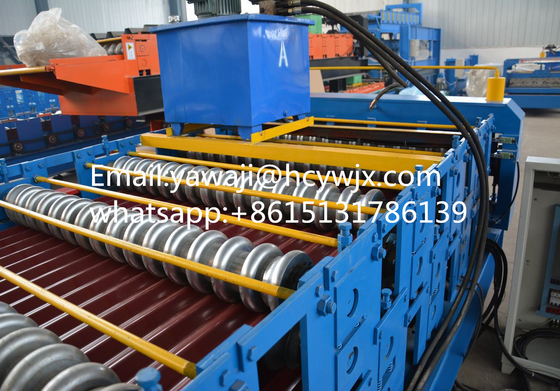

Shaft & Roller
The material of blade is CR12.
After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.
The operating interface of the control system is simple and easy to understand. Operators can master the operation of the equipment after simple training. Through the touch screen or operation panel, various production parameters can be easily set, such as the size, length, production quantity, etc. of the trapezoidal tile.
The maintenance of the equipment is also relatively simple. Due to its reasonable structural design, each component is easy to disassemble and replace, which is convenient for daily cleaning, maintenance and repair work.
