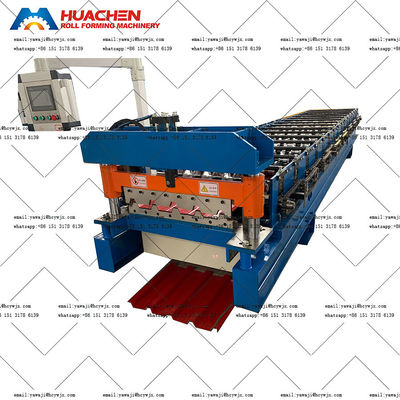

High Rib Metal Roof Roll Forming Machine With PPGI / GI Material And 925mm Width

1
MOQ
High Rib Metal Roof Roll Forming Machine With PPGI / GI Material And 925mm Width
Features Gallery Product Description Request A Quote
Features
Specifications
Material Type: PPGI/GI
Material Thickness: 0.3-0.6mm
Material Width: 925mm
Roller Stations: 16Stations
Roller & Shaft Material: 45# Steel Quenching And Plating
Diameter Of Shaft: Φ70mm
Cutter Material: CR12
Drive Type: Chain Drive
Speed: 15m/min
Total Power: 5.5+5.5KW
Highlight:

GI Metal Roof Roll Forming Machine

,

PPGI Metal Roof Roll Forming Machine

,

925mm Metal Roof Roll Forming Machine
Basic Infomation
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC36-171-686
Payment & Shipping Terms
Packaging Details: Main machine is nude，The workbench is packed with plastic stretch film
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T
Supply Ability: 20set per month
Product Description

Product Description



High degree of automation: computer control system is used, such as high-intelligent industrial electronic programmer PLC inverter control system, which is easy to operate and can automatically complete the production process by setting parameters, reducing manual intervention, reducing labor intensity and improving production efficiency.







Main Technical Parameters

Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 925mm
Roller Stations 16/Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases


Working Flow

Decoiling → Material Feeding → Roll Forming → Cutting → Collecting



Component & Technical Parameters

High Rib Metal Roof Roll Forming Machine With PPGI / GI Material And 925mm Width 0





This part is used to support Coil.

And make the coil in a rotary way.

Bearing capacity: 5T

Inner diameter: 470-530mm

(adjustable according to demand.)

In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.



Hydraulic Pump Station

High Rib Metal Roof Roll Forming Machine With PPGI / GI Material And 925mm Width 1



The purpose of this pump station is to drive the cutter to start cutting works.

The hydraulic tank use 46# hydraulic oil.

Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

Solenoid valve brand: Huade



Touch Screen Control Cabinet

High Rib Metal Roof Roll Forming Machine With PPGI / GI Material And 925mm Width 2



The control cabinet has two modes, automatic and manual modes.

The unit length of the targeted sheet and quantity can be set in the touchscreen.

The system is simple and easy to operate.

Electrical Component Brand:

1. VFD: Delta

2. Circuit breaker: Delixi

3. Contactor: Delixi

4. Relay: Xinling

5. PLC: Delta

6. Transformer: Delixi



Feeding Table & Pre-Cutter


High Rib Metal Roof Roll Forming Machine With PPGI / GI Material And 925mm Width 3

Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.



Shaft & Roller

High Rib Metal Roof Roll Forming Machine With PPGI / GI Material And 925mm Width 4



Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.



Pressing Section & Cutter

High Rib Metal Roof Roll Forming Machine With PPGI / GI Material And 925mm Width 5



The material of blade is CR12.

With high strength, better hardenability and good wear resistance.



The color steel plate can be accurately pressed into the shape of glazed tiles, the product surface is flat and smooth, without scratches, and the pitch is uniform


Tag:

roof tile roll forming machine

roof panel roll forming machine

cold roll forming machine
