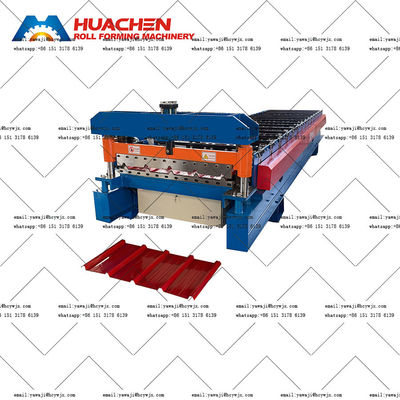

Product Details:
|
| Material Type: | PPGI/GI | Material Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Material Width: | 1200mm | Roller Stations: | 15Stations |
| Roller & Shaft Material: | 45# Steel Quenching And Plating | Diameter Of Shaft: | Φ70mm |
| Cutter Material: | CR12 | Drive Type: | Chain Drive |
| Speed: | 15m/min | Total Power: | 5.5+5.5KW |
| Voltage: | 380v 50Hz 3phases | ||
| Highlight: | Big Span Roof Roll Forming Machinery,Customisable Large Span Roll Forming Machine,380V Large Span Roll Forming Machine |
||
Product Description
The raw materials (such as color steel plates) are placed on the unloading rack, and the plates are conveyed to the forming part through the feed guide rollers. In the forming part, the plates are gradually bent and squeezed under the action of multiple sets of rollers, and gradually form the shape of trapezoidal tiles according to the shape and arrangement of the rollers. The gap and pressure between the rollers can be adjusted according to the thickness of the plate and the requirements of the trapezoidal tiles.
The formed trapezoidal tiles continue to be conveyed forward. When the set length is reached, the cutter in the shearing part, driven by the power system, shears the trapezoidal tiles from the plate to obtain the finished trapezoidal tiles. The whole process is carried out in a cycle under the precise control of the control system, and the trapezoidal tile products that meet the requirements are continuously produced.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1200mm | |
| Roller Stations | 15Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 15m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
The automation level is high, and the whole process from feeding to forming and shearing can realize continuous production, which reduces the manual intervention and improves the production efficiency. Compared with the traditional manual production or semi-automatic production method, the trapezoidal tile pressing machine has a faster production speed and can produce a large number of trapezoidal tile products in a short time.
