Square Roof Forming Ridge Cap Machine High Speed

Name: Square Roof Forming Ridge Cap Machine High Speed
Brand: Cangzhou Huachen Roll Forming Machinery Co., Ltd.
SKU: HC85-225
Price: 18,000.00 USD
Availability: InStock

All Products

Glazed Tile Roll Forming Machine
(133)

Roofing Sheet Roll Forming Machine
(166)

Double Layer Roll Forming Machine
(230)

Wall Panel Roll Forming Machine
(51)

Ridge Cap Roll Forming Machine
(58)

Door Frame Roll Forming Machine
(29)

Shutter Door Roll Forming Machine
(55)

Floor Deck Roll Forming Machine
(54)

Downspout Roll Forming Machine
(32)

Slitter Cutter Machine
(30)

Cold Roll Forming Machine
(23)

CZ Purlin Roll Forming Machine
(59)

Gutter Roll Forming Machine
(50)

Stone Coated Roof Tile Machine
(11)

Highway Guardrail Forming Machine
(14)

Sandwich Panel Roll Forming Machine
(8)

Roof Sheet Crimping Machine
(12)

Corrugated Roll Forming Machine
(19)

Stud And Track Roll Forming Machine
(51)

Best Products

0.3mm Metal Roof PPGI GI Ridge Cap Roll Forming Machine

High Precision Roof Ridge Cap Roll Forming Machine With 3 Ton Decoiler

Metal Roof Profile Ridge Cap Roll Forming Machine / Ridge Tile Machine 380V 50Hz

Customer Reviews

Machine easy to use. The boss is very nice.

—— Mr.Angolon From Europe

This is a good manufacturer, a good English communicater, and I like your machines. It is good quality, and pretty!

—— Mr.Mark From Africa

Nice supplier! I like your swift delivery and quick production cycle, will keep in touch with you guys.

—— Mr.Jack From America

I'm Online Chat Now

Square Roof Forming Ridge Cap Machine High Speed

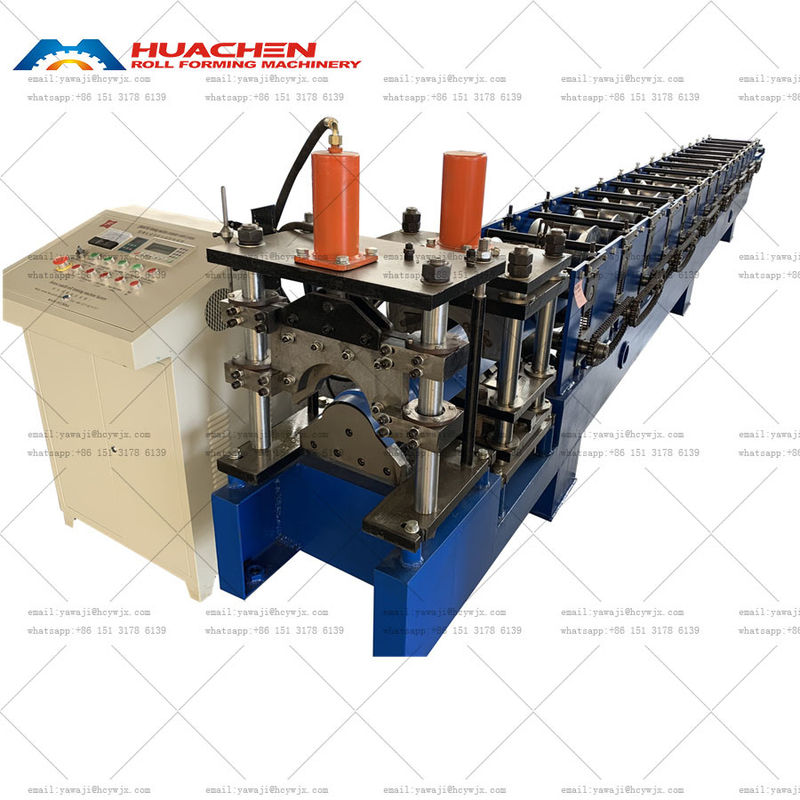

Large Image : Square Roof Forming Ridge Cap Machine High Speed

Product Details:

Place of Origin:	CHINA
Brand Name:	Huachen
Certification:	CE
Model Number:	HC85-225

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation between the two parties
Packaging Details:	non
Delivery Time:	45days
Payment Terms:	T/T
Supply Ability:	20set per month

Contact Now

Square Roof Forming Ridge Cap Machine High Speed

Description

Material:	PPIG IG Aluminum	Thickness:	0.3-0.6mm
Speed:	15m/min	Color:	Blue
Width:	500mm	Roller Stations:	11stations
Roller Shaft Material:	45#steel With Chrome Treatment	Diameter Of Shaft:	∅70mm
Cutter Material:	CR12	Total Power:	4+4kw
Voltage:	220v 60Hz 3phases
Highlight:	Ridge Roof Ridge Forming Machine , Square Ridge Roof Ridge Forming Machine , Ridge Forming Machine

Product Description

A Ridge/Square Ridge Roof Ridge Forming Machine is designed for the production of ridge caps used in roofing applications. These machines efficiently form metal sheets into the desired ridge profiles, enhancing the structural integrity and aesthetic appeal of roofs. Here’s an overview of their features and benefits:

Features
Versatile Design: Capable of producing various shapes, including ridges and square ridges, to meet different roofing requirements.
High Production Efficiency: Designed for fast operation, allowing for high output rates and reduced manufacturing time.
Durable Construction: Built with robust materials to ensure longevity and withstand heavy-duty use.
Adjustable Settings: Allows for quick adjustments to produce different profiles without extensive downtime.
Automated Control Systems: Often equipped with PLC (Programmable Logic Controller) for precise control and monitoring of the forming process.

Product Parameter

Material	Type	PPGI/GI
	Thickness	0.3-0.6mm
	Width	500mm
Roller Station		11Stations
Roller & Shaft Material		45# Steel Quenching and Plating
Diameter of Shaft		Φ70mm
Cutter Material		CR12
Drive Type		Chain Drive
Maximum Forming Speed		15m/min
Control System		PLC Control
Total Power		4+4KW
Voltage		380V 50Hz 3Phases

Workshop Scene

We Can Also Make The Following Machines

NO.	NAME
1	Single layer roll forming machine
2	Duoble layer roll forming machine
3	Trapezoidal roll forming machine
4	Glazed tile roll forming machine
5	Currugated roll forming machine
6	Floor deck roll forming machine
7	Roll shutter door forming machine
8	C/Z/Uprofile steel forming machine
9	Ridge cap roll forming machine
10	Downspout forming machine
11	Keel roll forming machine
12	Heat retaining sandwich panel
13	Highway guardrail roll forming machine
14	Carrige board roll forming machine
15	High-frequency pipe welder
16	Hydraulic full-automatic decoiler and accessory equipments
17	Color steel roll forming machine
18	Joint-hidden type forming machine
19	Colorfull stone-coated steel
20	No-girder arched roll forming machine
21	Standing seam arching machine
22	Hydraulic crimping curving machine
23	Steel coil slitting roll forming machine
24	Windshield dust-controlling board producing line
25	Some others can be made on request

Square Roof Forming Ridge Cap Machine High Speed 8

Square Roof Forming Ridge Cap Machine High Speed 9

Square Roof Forming Ridge Cap Machine High Speed 10

Square Roof Forming Ridge Cap Machine High Speed 11

Square Roof Forming Ridge Cap Machine High Speed 12
Why Book With Us?
1.We have 20 years of experience in production and sales of tile presses
2.We know the commonly used tile types in each region and can recommend them to customers
3.We have an excellent design and production team that can design and manufacture according to customer needs.
4.We have our own company and welcome customers at any time
5.We can help you contact the shipping company and we can also deliver to your door if you need.
