Chain Drive CZ Purlin Roll Forming Machine 14-18 Stations Adjustable Cutting Length

Product Description:

An automatic CZ purlin roll forming machine is a high-precision equipment that is engineered to fabricate CZ-shaped purlins, which are integral parts of modern construction. These purlins are widely used as structural supports for roofs and walls in various types of buildings.

This machine operates on the foundational principle of roll forming, tailored to construct both C-shaped and Z-shaped purlins with heightened precision and efficacy. Below are notable characteristics and components that define the automatic CZ purlin roll forming machine:

The uncoiler is the component that secures the coil of steel and methodically feeds it into the machine's subsequent stages.

To ensure the steel strip is properly aligned, the leveling and feeding system is employed. This system meticulously straightens the strip and directs it with precise control into the roll forming portion of the machine.

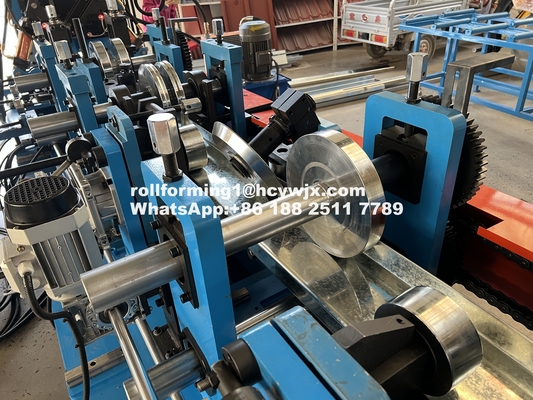

At the core of the machine is the roll forming section . This section hosts a succession of roll stands replete with rollers that incrementally mold the steel strip into the specified CZ profile. For versatility in production, these roll stands are modifiable to craft various purlin sizes.

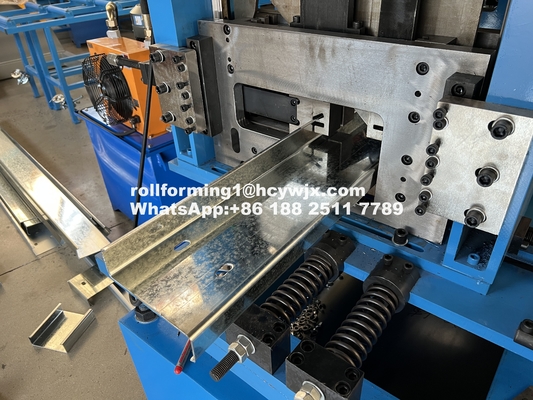

A punching system might be integrated within the machine to perforate holes or slots to meet specific design requirements. Alongside this, a cutting system is present to truncate the roll-formed purlins to predetermined lengths.

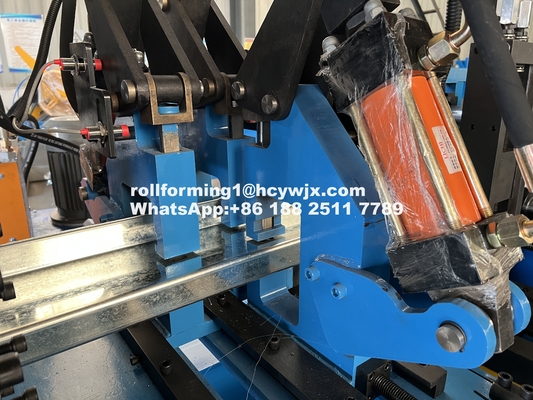

Essential to the operation of the machine is either a hydraulic or servo-driven system . This system supplies the necessary power and ensures the effective handling of the roll forming process, including maneuvering the rolls and calibrating the speed for optimal precision.

The control system is a sophisticated computerized panel that allows for the customization of parameters such as purlin length, quantity, and profile specifications. Furthermore, it constantly oversees and tweaks the machine’s functions to deliver production that is both consistent and precise.

Automatic CZ purlin roll forming machines are synonymous with high yield and robust efficiency since they permit the production of purlins in a systematic and autonomous manner. These machines are adept at processing a range of steel thicknesses and can construct purlins of diverse sizes and profiles whilst demanding minimal human intervention. They are indispensable in achieving streamlined production of purlins that are vital to construction undertakings.

Features:

• Product Name: Automatic CZ Purlin Roll Forming Machine
• Material Thickness: 1.2-1.8mm
• Drive Type: Chain Drive
• Machine Weight: 8-9T
• Power: 11+7.5KW
• Control System: PLC Control

Technical Parameters:

Applications:

CZ purlins are integral elements in the construction industry, utilized extensively within the structural frameworks of various types of buildings. These components are particularly favored for their capacity to supplant certain traditional materials, such as timber or steel beams, within roof and wall systems, offering numerous benefits due to their design and material properties.

Roofing Systems

Notably prevalent within roofing structures, CZ purlins serve as primary supports for roofing panels which include, but are not limited to, metal sheeting and insulated sandwich panels. Their role is fundamental in ensuring load distribution is even and effectively managed across the whole edifice.

Wall Systems

As part of the wall systems, CZ purlins contribute to the overall support, reinforcing wall enclosures and aiding in the maintenance of stability and integrity for particularly expansive commercial or industrial buildings.

Secondary Framing Elements

Lending their strengths as secondary framing members, CZ purlins complete the structural framework, interconnecting main components like steel columns and beams. This forms a more cohesive and robust structure capable of withstanding various stresses.

Frame Support for Mezzanine Floors

Beyond primary and secondary roles in framing, CZ purlins are implementable as the framework for mezzanine floors that create an intermediate level within buildings, offering a durable base to support these additional floor areas.

Industrial, Warehouse, and Agricultural Buildings

These versatile purlins are also foundational in the construction of industrial sheds, warehouses, and even agricultural facilities such as barns and livestock shelters. Their light weight, ease of install, and cost efficiency are particularly endorsed in structures necessitating such features.

A critical asset of CZ purlins lies in their customizable nature, being able to be tailored to match specific architectural demands and construction regulations. They boast an exceptional strength-to-weight ratio that contributes to more efficient and effectual structural designs. Additionally, the standardized profiles and uniformity of CZ purlins result in more streamlined and accurate installations, thereby decreasing manual labor requirements and expediting construction timelines.

Customization:

Brand Name: HC

Model Number: HC-C

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Packaging Details: 40GP Container

Delivery Time: 45Days

Payment Terms: 30% deposit by T/T before manufacture, The balance to be paid before delivery.

Supply Ability: 60 Sets Per Month

Drive Type: Chain Drive

Product Name: CZ Purlin Roll Forming Machine

Material Width: Customizable Based On Need

Forming Speed: 10-15m/min

Roller Stations: 14-18Stations

Experience precision and efficiency with our Automatic CZ Purlin Roll Forming Machine , designed to cater to your specific construction needs. Our Automatic CZ Purlin Roll Forming Machine is engineered for performance, ensuring seamless operation and long-lasting durability. Optimize your production with the advanced technology of our Automatic CZ Purlin Roll Forming Machine , the smart choice for your business.
