Product Details:
|
| Machine Dimension: | 12.1*1.5*1.6m | Machine Weight: | 15.6T |
|---|---|---|---|
| Material Thickness: | 1.5-3.0mm | Cutting Tolerance: | ±1mm |
| Drive Type: | Chain Drive | Voltage: | 380V/50HZ/3Phase |
| Product Name: | CZ Purlin Roll Forming Machine | Material Width: | Customizable Based On Need |
| High Light: | CE cz purlin roll forming machine,15m/min cz purlin roll forming machine,adjustable width cz purlin machine |
||

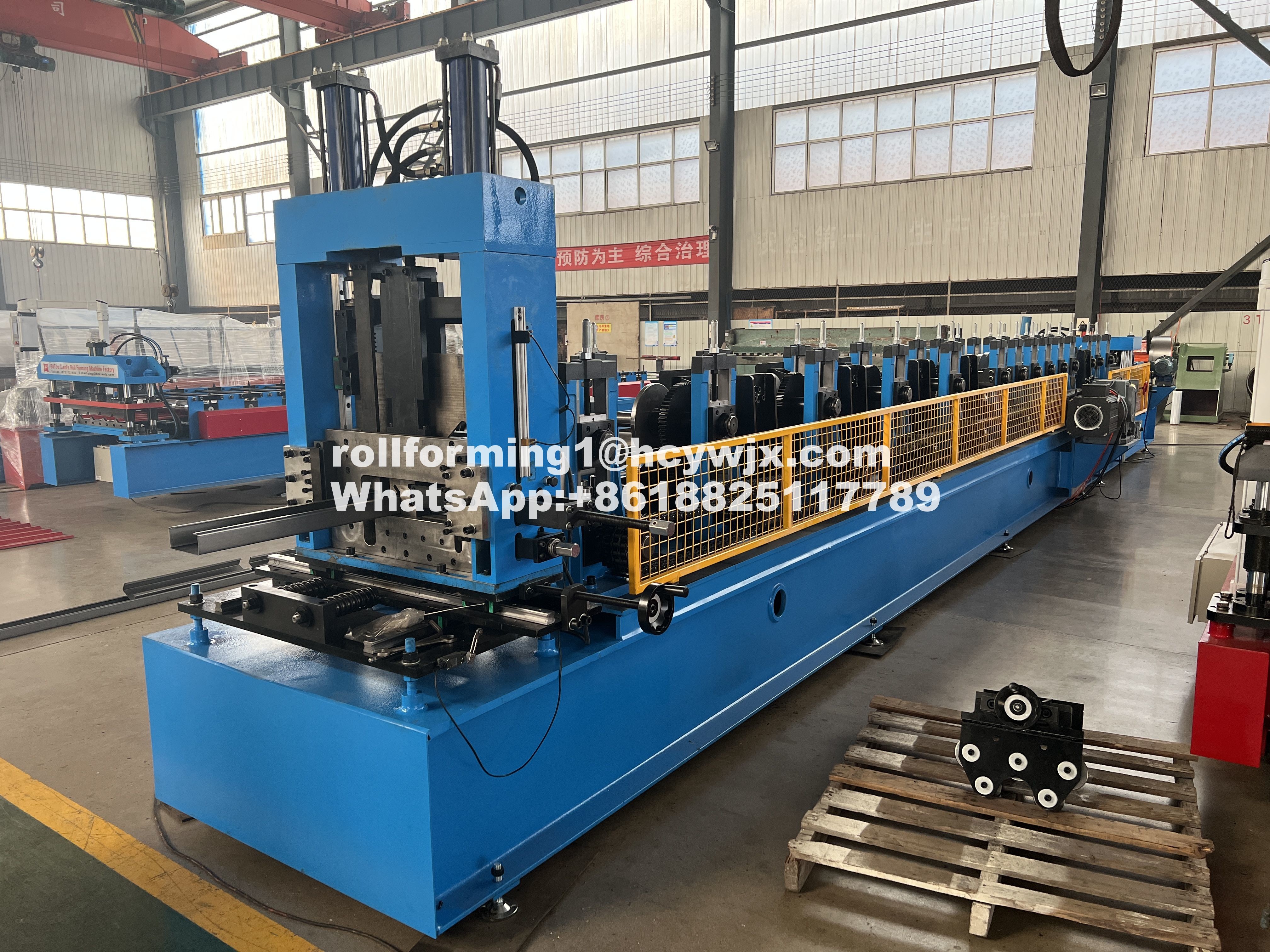

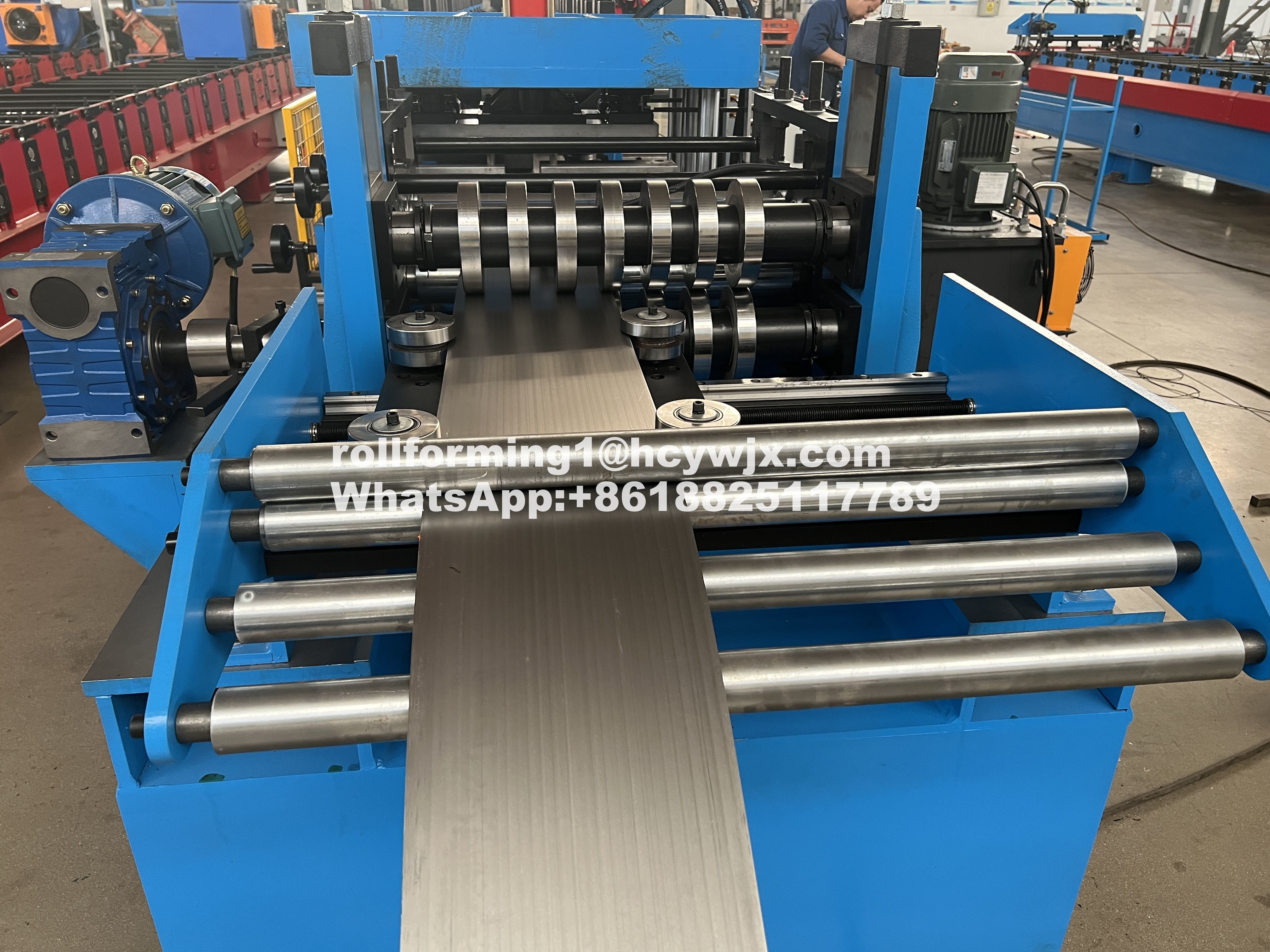

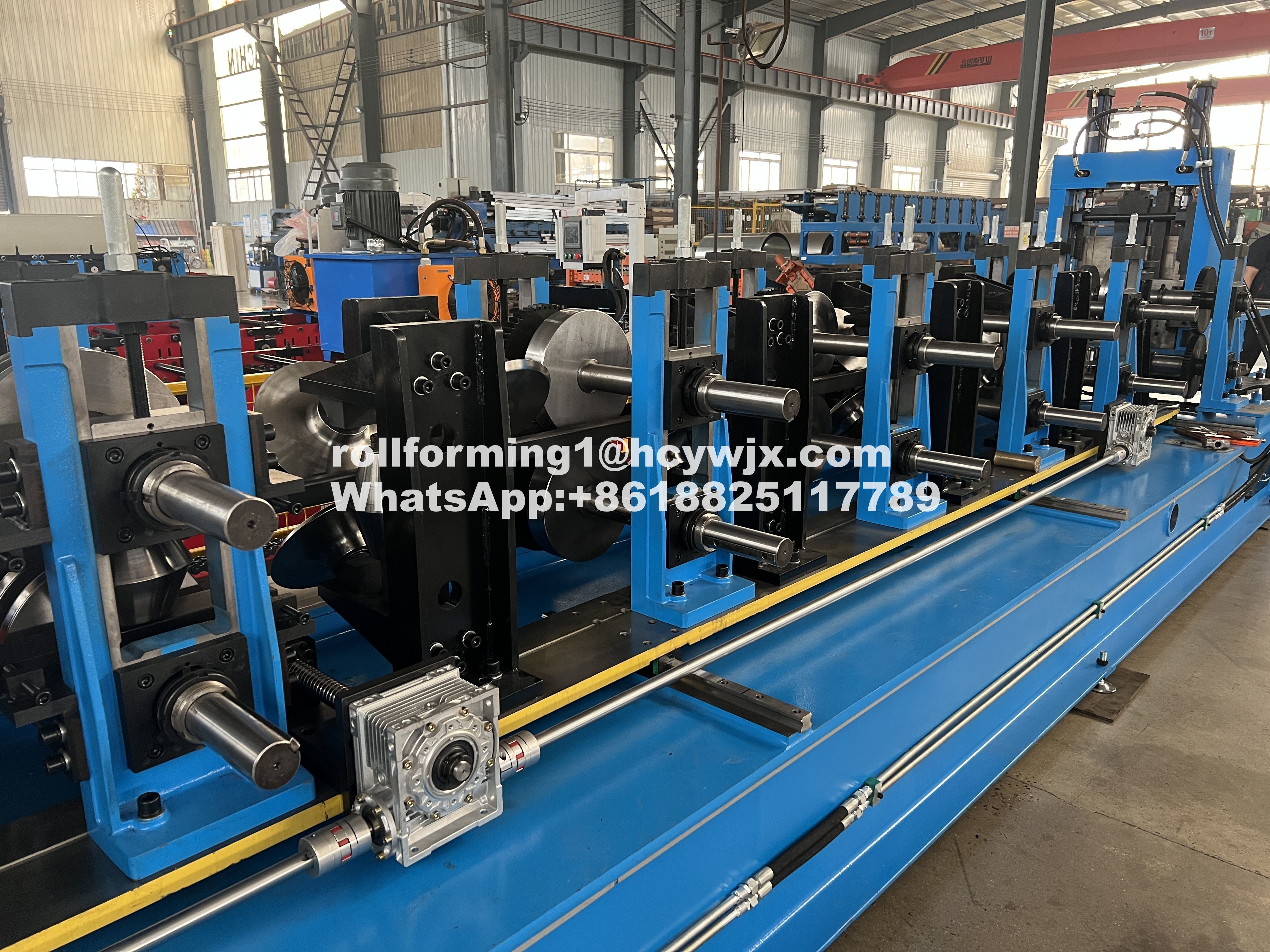

Purlines are a building material used to support the load from the roof and side cladding of a building. C or Z shape purlines can be created from either hot or cold rolled steel strips through a process of straightening, punching holes, and roll forming. HUACHEN provides an interchangeable purline roll forming machine that can be used to accomplish this.

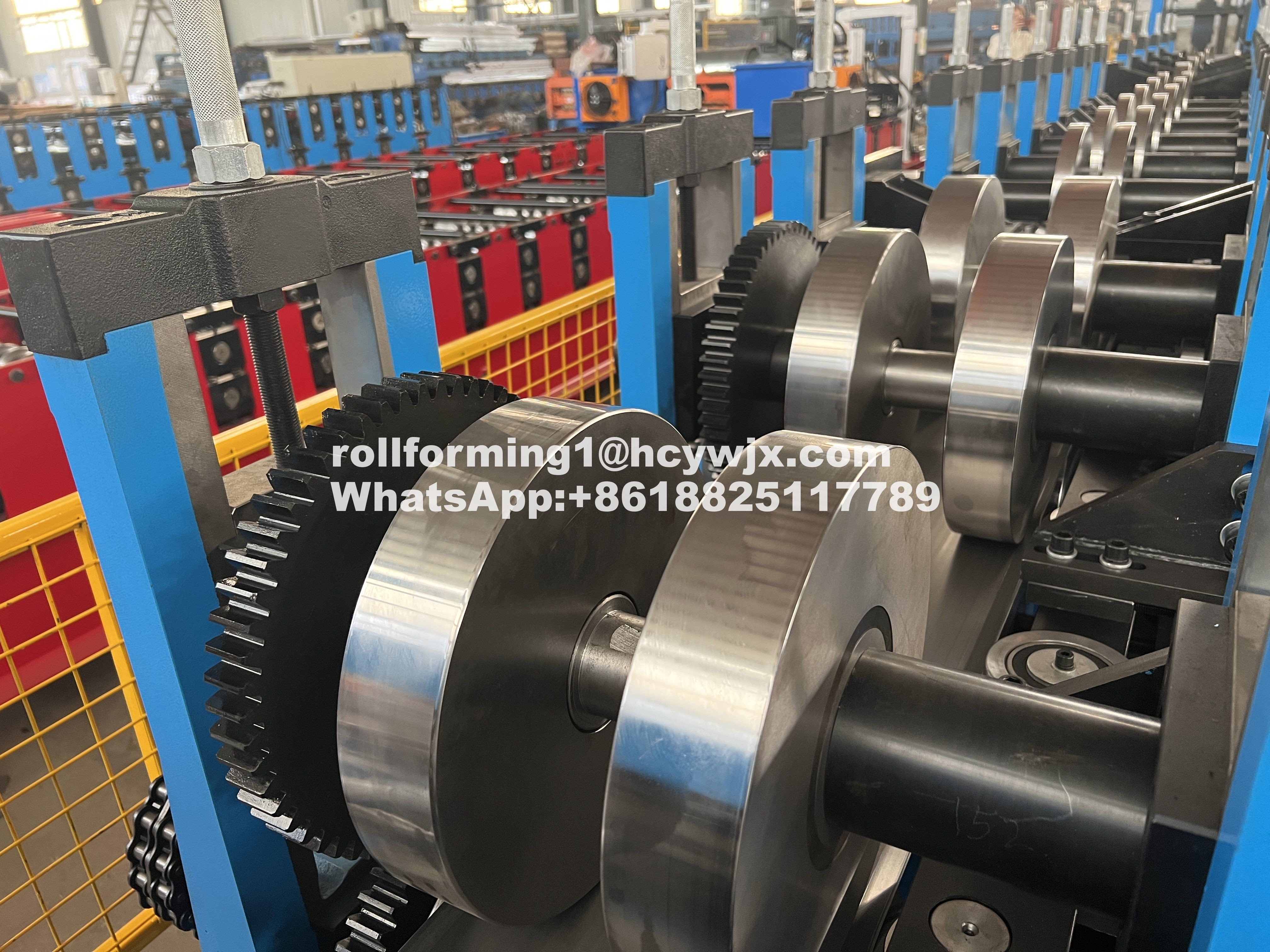

The HUACHEN purline roll forming machine can make use of a variety of rollers with different sizes and shapes, enabling it to create a wide range of purline shapes and sizes. It is also very accurate and can fabricate purlines quickly and efficiently.
The HUACHEN purline roll forming machine has produced C or Z shape purlines for a variety of different construction projects. It is known for its reliability and is used widely in the industry.
With the amazing one-click CZ fully automatic interchange, achieving the dimension you need is now easier than ever. All you need to do is to just press one button and moments later you will have the desired shape and measurements.
What's more, it won't take you more than a couple of minutes to obtain the specifications you need.
| Parameter | Value |
|---|---|
| Control System | PLC Control |
| Machine Weight | 15.6T |
| Product Name | CZ Purlin Roll Forming Machine |
| Roller Stations | 14-18 Stations |
| Cutting Tolerance | ±1mm |
| Forming Speed | 2-15m/min |
| Material Width | Customizable Based On Need |
| Material Thickness | 1.5-3.0mm |
| Cutting Length | Any Length |
| Machine Dimension | 12.1*1.5*1.6m |
The products we produce are able to meet the diverse needs of infrastructure construction. For instance, they are an ideal choice for roof beam constructions in workshops.
Our products boast superior durability and strength, making them suitable for a range of infrastructure constructions. At the same time, they are easy to transport, install, and maintain, allowing for more efficient application.
We provide customized services for Automatic CZ Purlin Roll Forming Machine with the brand name HC and model number HC C/Z. The product is certified with CE and a minimum order quantity of 1 is required. The packaging details are 40GP Container and the delivery time is 60 days. Payment terms are 30% deposit by T/T before manufacture, The balance to be paid before delivery. The supply ability is 60 Sets Per Month. The material width is customizable based on need and the cutting tolerance is ±1mm. The material thickness is 1.5-3.0mm and the cutting length is any length. The control system is PLC Control.
