Product Details:
|
| High Light: | g300 zinc coil roof forming machine,three phases roof forming machine,g250 panel roll forming machine |
||
|---|---|---|---|
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm
3. Rollers: 18rows
4. Dimensions: 10.1*1.5*1.65m
5. Power: 11+11+7.5kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:1-1.2mm
8. Voltage: 380V 50Hz 3 phases
9. Material of the cutting plate: Cr12
10. Hydraulic oil used: 46#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:

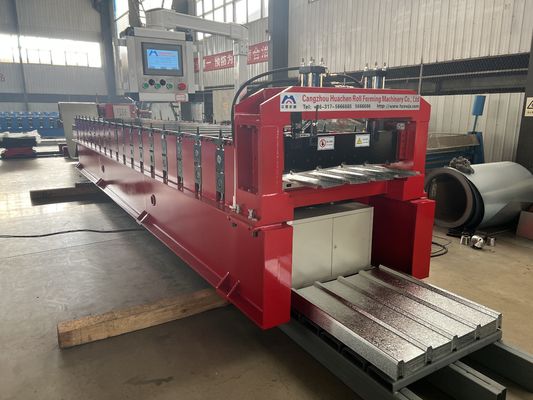

Roof Sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Roof Sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
18rows |
|
4 |
Dimensions |
10.1*1.5*1.65m |
|
5 |
Power |
11+11+7.5kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
7 |
Thickness of the plate |
1-1.2mm |
|
8 |
Productivity |
15m/min |
|
9 |
Diameter of the roller |
Φ90mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic oil used |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

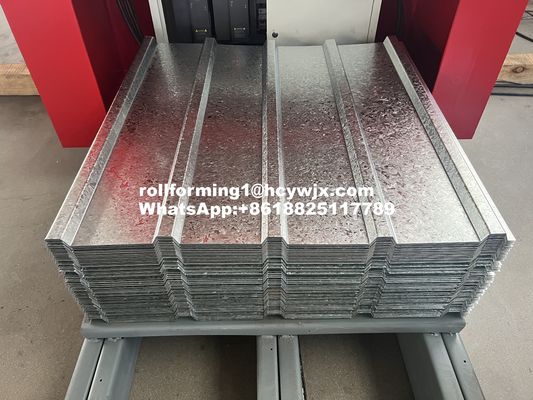

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. noiseless running
2. good quality
3. high grade steel
4. maintenance-free
5. easy to use
