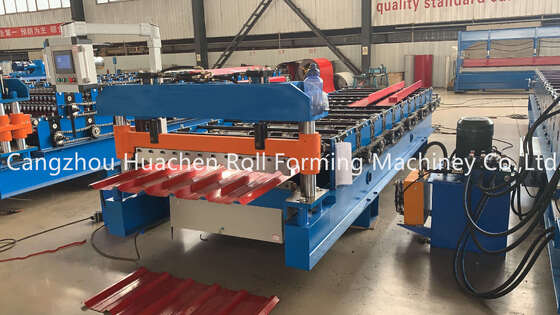

Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller

Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller
Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller
Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller

Large Image :  Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC25-205-1025
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30 work days
Payment Terms: L/C,T/T
Supply Ability: 20 sets per month
Contact Now

Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1200mm Roller Stations: 11Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 15-20m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can Be Customized)
Highlight:

roof tile roll forming machine

,

roof panel roll forming machine

Building Material Iron Sheet Roof Corrugated Roll Forming Machine
Product Overview

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Working Process
  • Decoiling the sheet
  • Sheet guiding
  • Roll forming
  • Measure length
  • Cutting the panel
  • Panels to the supporter
Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 0
Technical Specifications
Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Material Thickness 0.3-0.6 mm
Material Width 1200mm
Roller Stations 11 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component Specifications
Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 1

5T Manual Decoiler - Used to support coil and enable rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Equipped with brake device for impact protection.

Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 2

Feeding Table & Pre-Cutter - Guides coil into correct position and includes hand pull cutting device for color or thickness changes.

Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 3

Shaft & Roller - Made from 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant and won't scratch sheets.

Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 4

Hydraulic Pump Station - Drives cutter for cutting operations. Uses 46# hydraulic oil with cooling fan for temperature control. Solenoid valve brand: Huade.

Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 5

Touch Screen Control Cabinet - Features automatic and manual modes. Allows setting of sheet length and quantity. Electrical components: Delta VFD, Delixi circuit breakers and contactors, Xinling relays, Delta PLC, Delixi transformer.

Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 6

Pressing Section & Cutter - Blade material CR12 with high strength, good hardenability and wear resistance.

Output Table

Collects formed products with roller-equipped bracket to prevent scratching during forwarding.

Spare Parts Included
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Machine Gallery
Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 7 Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 8 Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 9 Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 10 Building Material Iron Sheet Roof Corrugated Roll Forming Machine with 0.3-0.6mm Thickness 1200mm Width and 11 Stations Roller 11
Applications

This type of glazed tile has advantages including beautiful, classical appearance and graceful taste. It can be widely used in villages, hotels, exhibitions, vacation villages, family constructions and outdoor decoration.

About Toppo Machinery

Toppo Machinery Co., Ltd. is a professional supplier for roll forming machines. We provide an extensive line of products, including: roof and wall panel machines, tile roof machines, purlin forming machines, shutter door machines, floor decking machines and other associated equipment. Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.
