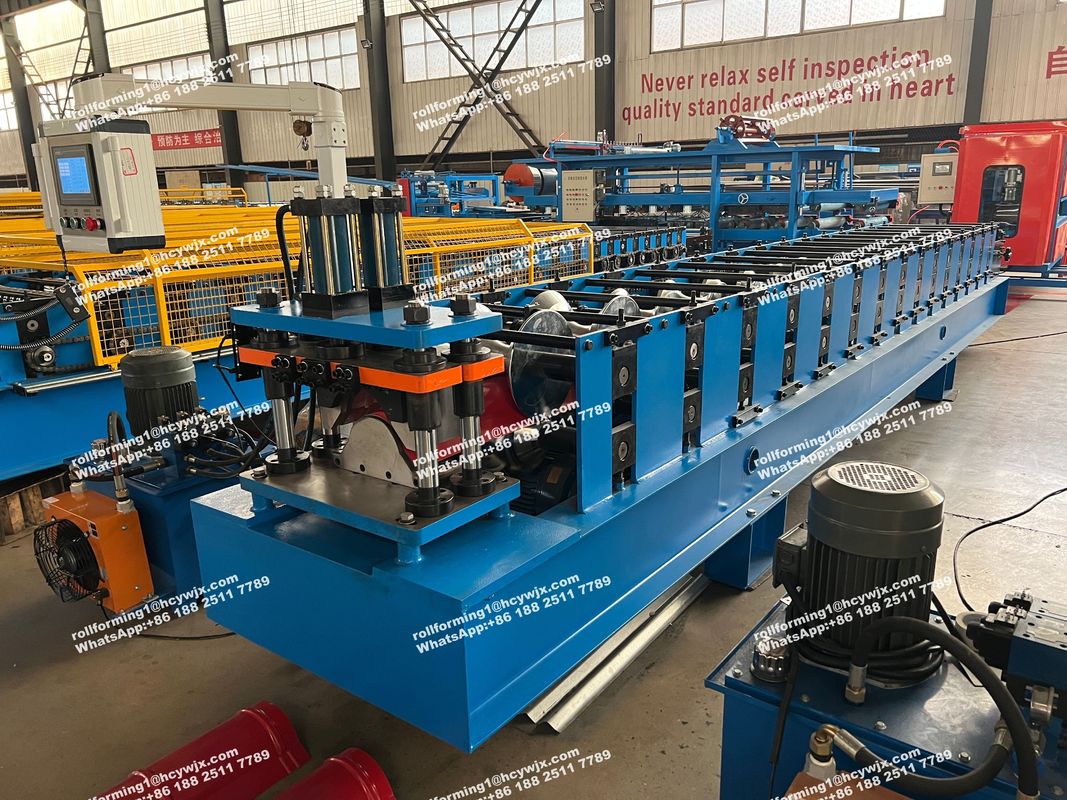

Hydraulic Cutting Intelligent Steel Roofing Tile Forming Machine

Hydraulic Cutting Intelligent Steel Roofing Tile Forming Machine With Yakamas Drive

Specifications of Tile Roll Forming Machine

• Material thickness: 0.3-0.6mm,Color Steel, Galvanized coil

• Material width: 415mm, can depend on customer’s requirement

• Decoiler Type: manual or automatical type (depend on customer’s requirement )

• Weight Capacity Of Decoiler: 5 Ton

• Main Motor Power: 5.5 Kw

• Hydraulic Motor Power: 5.5Kw

• Forming Station: 15 ( depend on profile drawing )

• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

• Main Axis Material: High grade 45#, quenched and heat treatment.

• Axis Diameter: ¢ 70mm

• Working Speed: 2-4 m/min

• Transporting Type: Chain Transmission

• Heat Treatment of Cutting Blade: HRC 50-60

• Type of Cutting: Hydraulic cutting

• Material Of Cutting Blade: Cr 12

• Heat Treatment of Cutting Blade: HRC 50-60

• Machine Frame stand: Welded structural steel

• Thickmess of Fame Steel: 18mm

• Electrical Control: PLC Frequency Control System with touch screen

• PLC: PANASONIC Brand

• Encoder: OMRON Brand

• Transducer: PANASONIC Brand

• Machine Weight: about 8.5 Ton

Main Components

• Decoiler --------------------------------------------- 1 Unit

• Feeding guide -------------------------------------1 Unit

• Main roll forming machine ----------------------1 Unit

• Hydraulic pressing device ----------------------1 Unit

• Hydraulic cutting device -------------------------1 Unit

• Hydraulic Station ---------------------------------- 1 Unit

• PLC computer control ----------------------------1 Unit

• Output table ----------------------------------------- 1 Unit

Working Flow
Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

Application

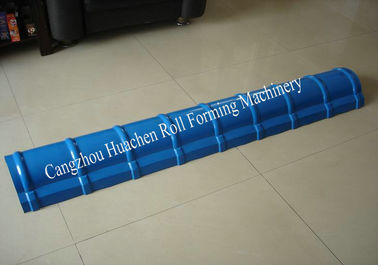

• This roof panel used as the roofing of factory, warehouse. It is easy to realize the reliable and safety installation.

• Good toughness: with super toughness, Tere is no necessary to do any treatment amontg the nail hole, it is sealing and can prevent leaking water.

• Long life: life ≥ 25 years, is an alternative to steel sheet

• Corrosion resistance: strong acid, alkali, salt, anti-static, anti-vapor corrosion, etc.

• Noise performance: noise performance is good, away from the noise.

• The appearance of the shape: color and length can be arbitrarily chosen.

Character of Main Structure

• The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

• We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

• It is very easy to install the equipment and suitable for producing in the factory.

• The machine has features of low noise and high efficiency.
