Product Details:
|
| Weight: | 5T | Length: | 8.6m |
|---|---|---|---|
| Power: | 11+7.5kw | Thickness: | 2-3mm |
| Warranty: | 1 Year | Life Time: | 10 Years Above |
| High Light: | purlin roll forming machine,rolling forming machine |
||

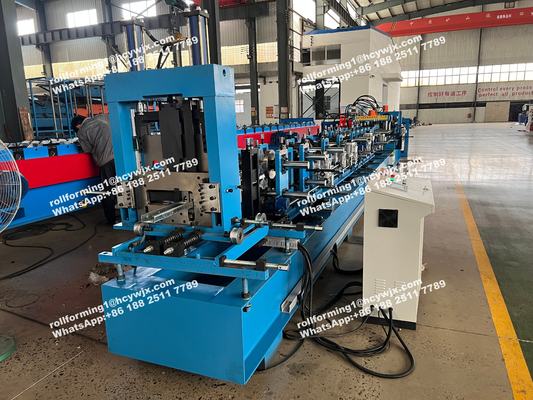

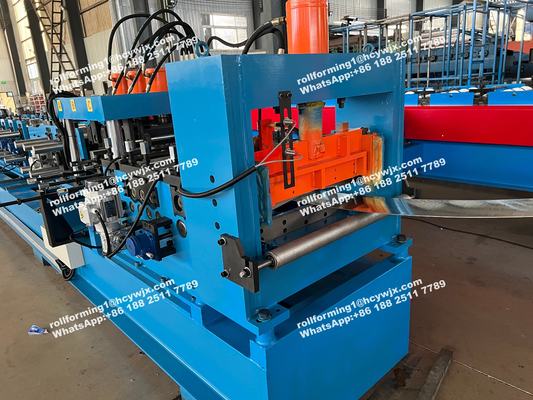

Automatic 80 to 300 mm adjusting c z purlin interchangeable roll forming machine
1. The Chart of Process Flow
Decoiling--active feeding--roll forming--measuring length-- cutting to length--product to stand
2. Main Equipment
Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 175/465mm

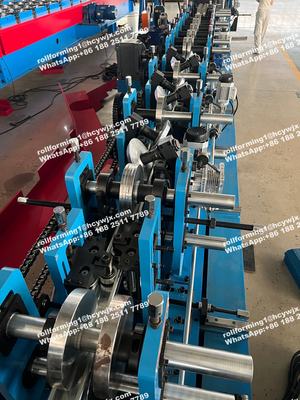

3. Rollers: 13 rows
4. Dimensions: 6.7*1.35*1.51m
5. Power: 11+7.5kw
6. Rolling material: shaft bearing steel(quenching)
7. Thickness of the plate:1.5-3mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
3. Technical Parameters
C shape purline Roll Forming Machine Main parameter
|
No. |
Main parameter of C Shape Purline Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
175/465mm |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
6.7*1.35*1.51m |
|
5 |
Power |
11+7.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
1.5-3mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ80mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting
Application:
C purline formed by C purline forming machine,advantages of well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
Competitive Advantage
1. ISO certification
2. CE certification
3. PLC Panasonic
4. One year free warranty
5. Low loss, easy operate
